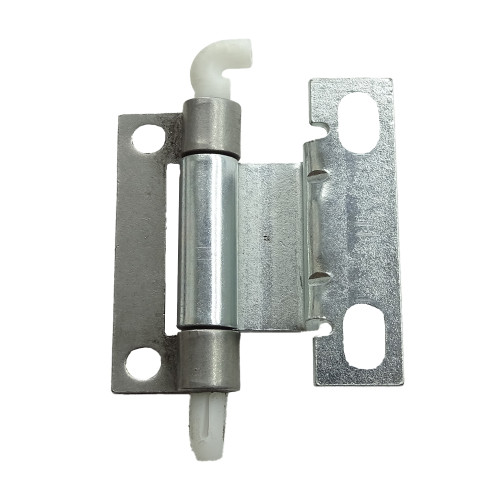

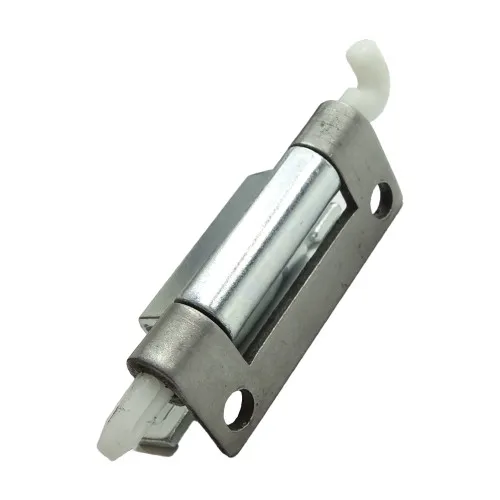

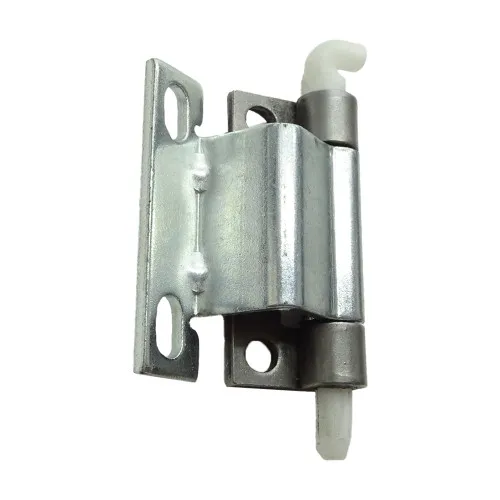

60mm x 40mm Concealed Hinge with Removable Pin - Zinc Plated Steel with Nylon Pin
Product code:
HIN438
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 9 | £7.22 | £8.66 |
| 10 - 24 | £7.06 | £8.47 |
| 25 - 49 | £6.69 | £8.03 |
| 50 - 99 | £5.96 | £7.15 |
| 100 + | £4.71 | £5.65 |
£8.66
/ each
Quantity:
Product Stock

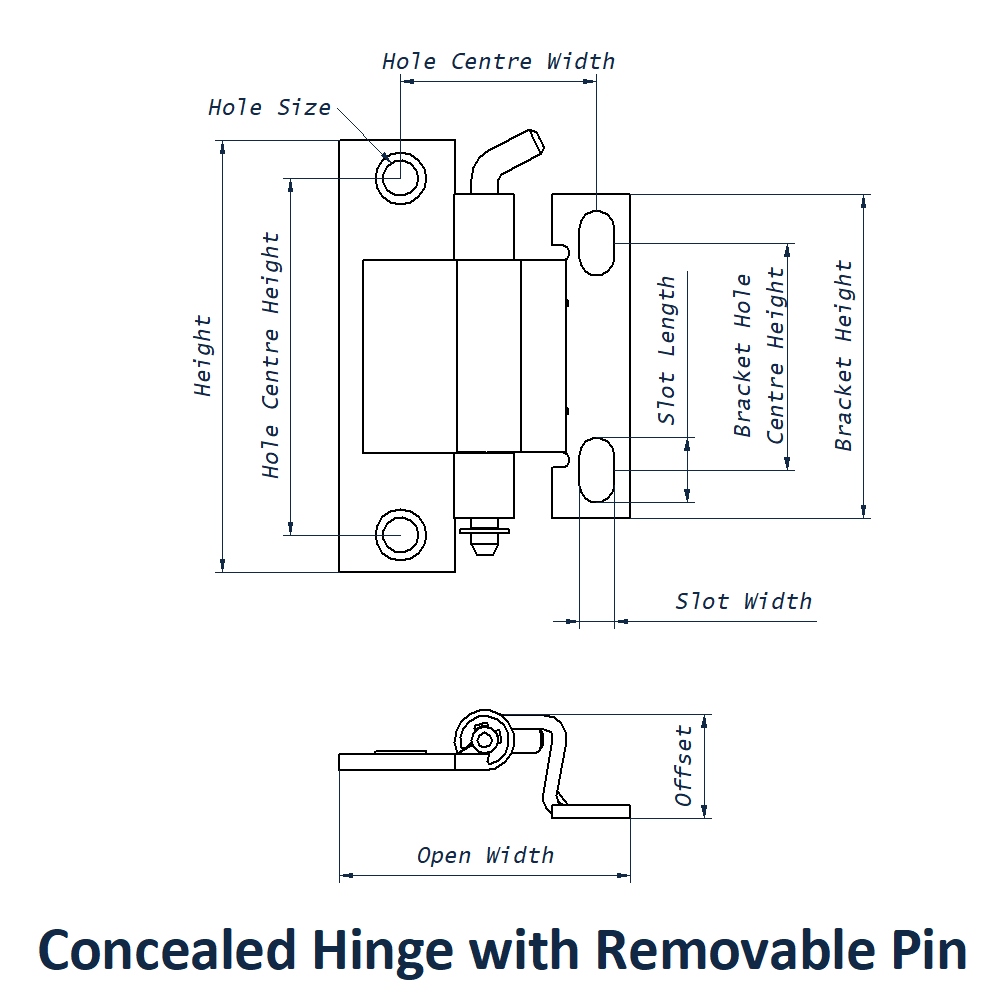

| Product Specifications | HIN438 |
|---|---|
| Height | 60mm |
| Open Width | 40.0mm |
| Offset | 21.0mm |
| Hole Size | 6.5mm |
| Hole Centre Height | 48mm |
| Hole Centre Width | 40mm |
| Bracket Hole Centre Height | 42mm |
| Bracket Height | 60mm |
| Slot Length | 12mm |
| Slot Width | 6.5mm |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00
Product Description
This Concealed Hinge with Removable Pin has a Height of 60mm, an Open Width of 40mm and an Offset measurement of 21mm.
It is made from Zinc Plated Steel with Nylon Pin which makes it ideal for applications such as internal, enclosure and machinery doors.
This Concealed Hinge with Removable Pin has a Hole Size of 6.5mm, a Hole Centre Height of 48mm and a Hole Centre Width of 40mm.
It also features a Bracket Hole Centre Height of 42mm, a Bracket Height of 60mm, a Slot Length of 12mm and a Slot Width of 6.5mm.
This Hinge has a 120° opening angle which allows the user to gain access to the application with ease.
The Radial Load of this Hinge is 420N and the Axial Load is 410N.
