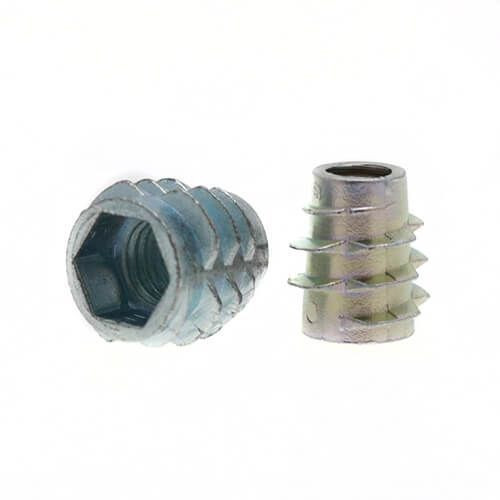

M6 Cone Shape Insert Nut (Type E) | 20mm Length
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.69 | £0.83 |
| 2 - 50 | £0.69 | £0.83 |
| 51 - 100 | £0.67 | £0.80 |
| 101 - 250 | £0.62 | £0.75 |
| 251 - 500 | £0.59 | £0.71 |
| 501 + | £0.57 | £0.68 |
£0.83 / each
.png)
Product Specification
| Diameter | 12.0mm |
| Length | 20mm |
| Thread Size | M6 |
| Allen Key Across Flats | 6mm |
| For Hole Size | 7.5mm |
Frequently Bought Together
Total Price: £0.00
M6 x 20mm Cone Shaped E Nut | 12mm Diameter | Silver Steel
These M6 x 20mm Cone Shaped E Nuts provide a longer insert body for timber sections that need stronger engagement than shorter E nuts can offer. The 12mm diameter, 20mm length and 7.5mm hole size make this option well suited to heavier wooden frames, workstations and support bases using M6 adjustable feet.
The silver steel construction gives this threaded insert nut a strong internal fixing surface for regular adjustment. Its tapered form allows use in both flat and curved wooden components while the 6 Allen Key drive gives installers better control when positioning the insert inside pre-drilled holes.
Common Applications
- Workshop benches fitted with M6 adjustable support feet
- Timber frames where a longer threaded insert improves hold
- Production trolleys and service stands with wooden bases
- General furniture manufacturing using concealed foot fixings

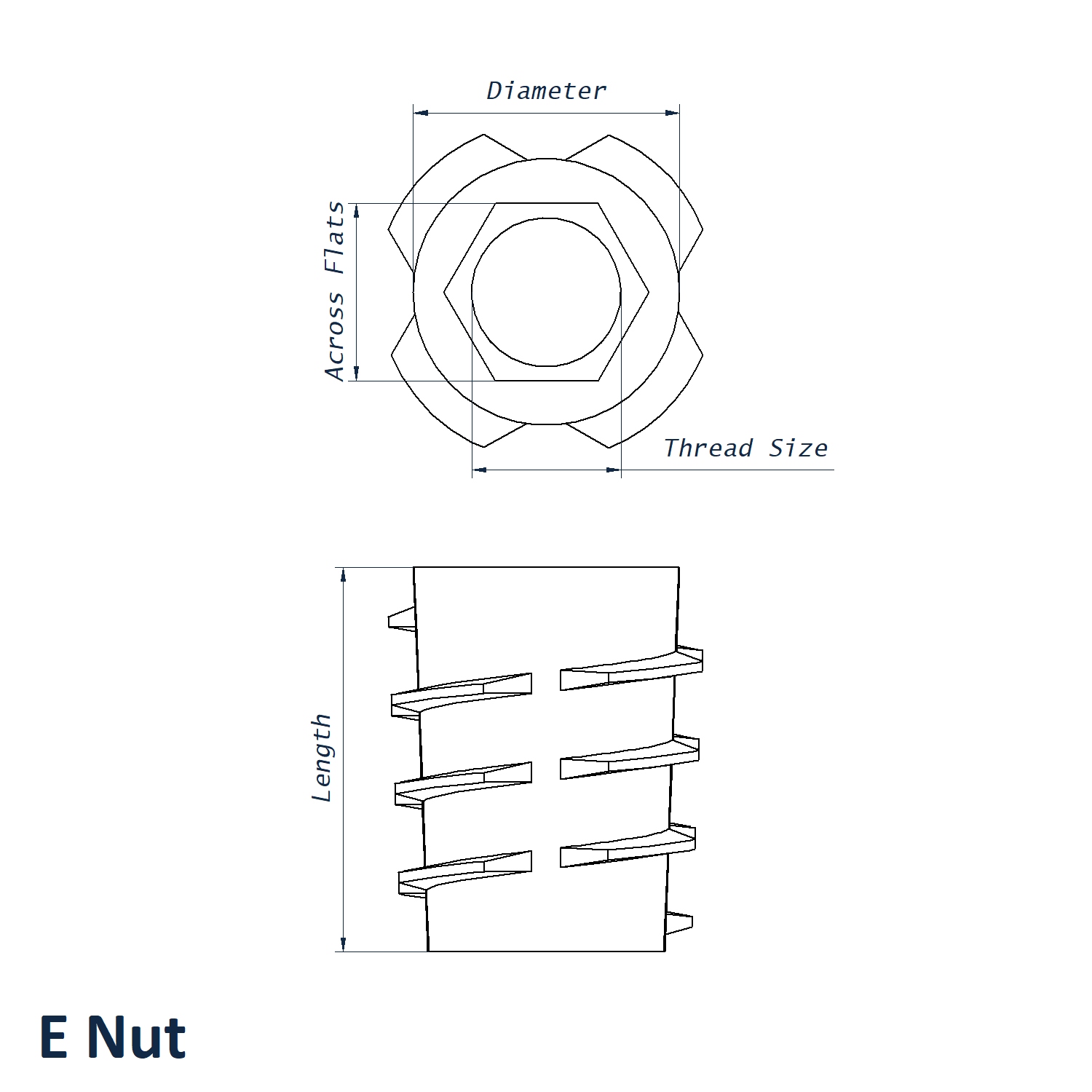

M6 x 20mm Cone Shaped E Nut Dimensions
- Diameter: 12mm
- Length: 20mm
- Hole Size: 7.5mm
- Thread Size: M6
- Allen Key: 6
- Material: Steel
- Colour: Silver
Commonly Paired with Adjustable Feet
This M6 x 20mm cone shaped E Nut is compatible with most adjustable feet of the same thread size and is often selected where deeper timber engagement is needed. Check the description before buying to confirm the fixing method and material suitability.
Click here to view our full range of Adjustable Feet.
View our full range of adjustable feet to check compatible styles, sizes and fixing options for your application.
