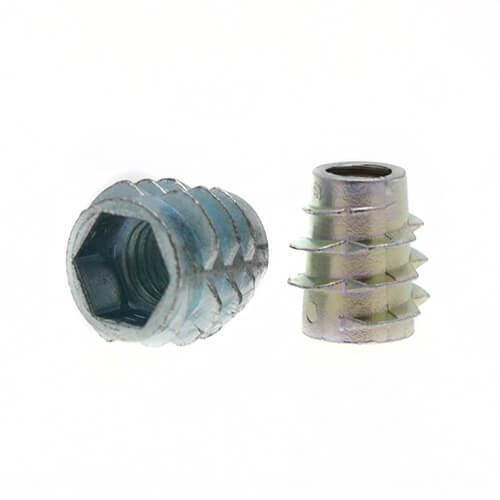

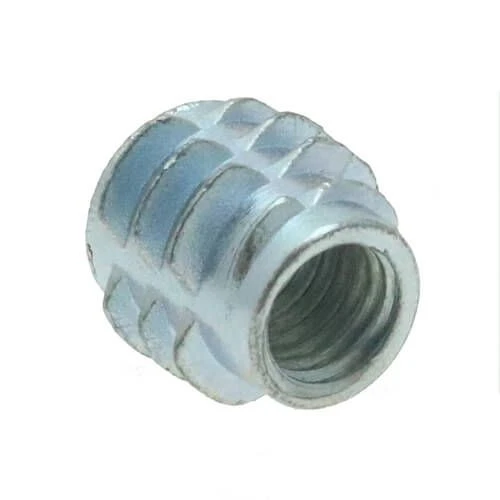

M8 Cone Shape Insert Nut (Type E) | 25mm Length
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.79 | £0.95 |
| 2 - 50 | £0.79 | £0.95 |
| 51 - 100 | £0.75 | £0.90 |
| 101 - 250 | £0.72 | £0.86 |
| 251 - 500 | £0.68 | £0.82 |
| 501 + | £0.64 | £0.77 |
Product Specification
| Diameter | 14.5mm |
| Length | 25mm |
| Hole Size | 11mm |
| Thread Size | M8 |
| Allen Key | 8 |
Frequently Bought Together
Total Price: £0.00
M8 x 25mm Cone Shaped E Nut | 14.5mm Diameter | Silver Steel
These M8 x 25mm Cone Shaped E Nuts give the longest insert length in this range, making them suitable for robust timber assemblies that need maximum thread engagement for adjustable feet. With a 14.5mm diameter, 25mm length and 11mm hole size, they are aimed at larger furniture, work platforms and equipment support frames.
The silver steel body creates a hard-wearing internal thread for M8 foot stems. This extended cone shaped E nut is particularly useful where repeated levelling adjustments are expected, as the insert helps maintain a secure fixing point in soft woods and panel materials.
Common Applications
- Large timber frames using M8 adjustable foot inserts
- Industrial furniture where extended insert length improves grip
- Work platforms and benches needing secure levelling points
- Maintenance-friendly assemblies with removable adjustable feet

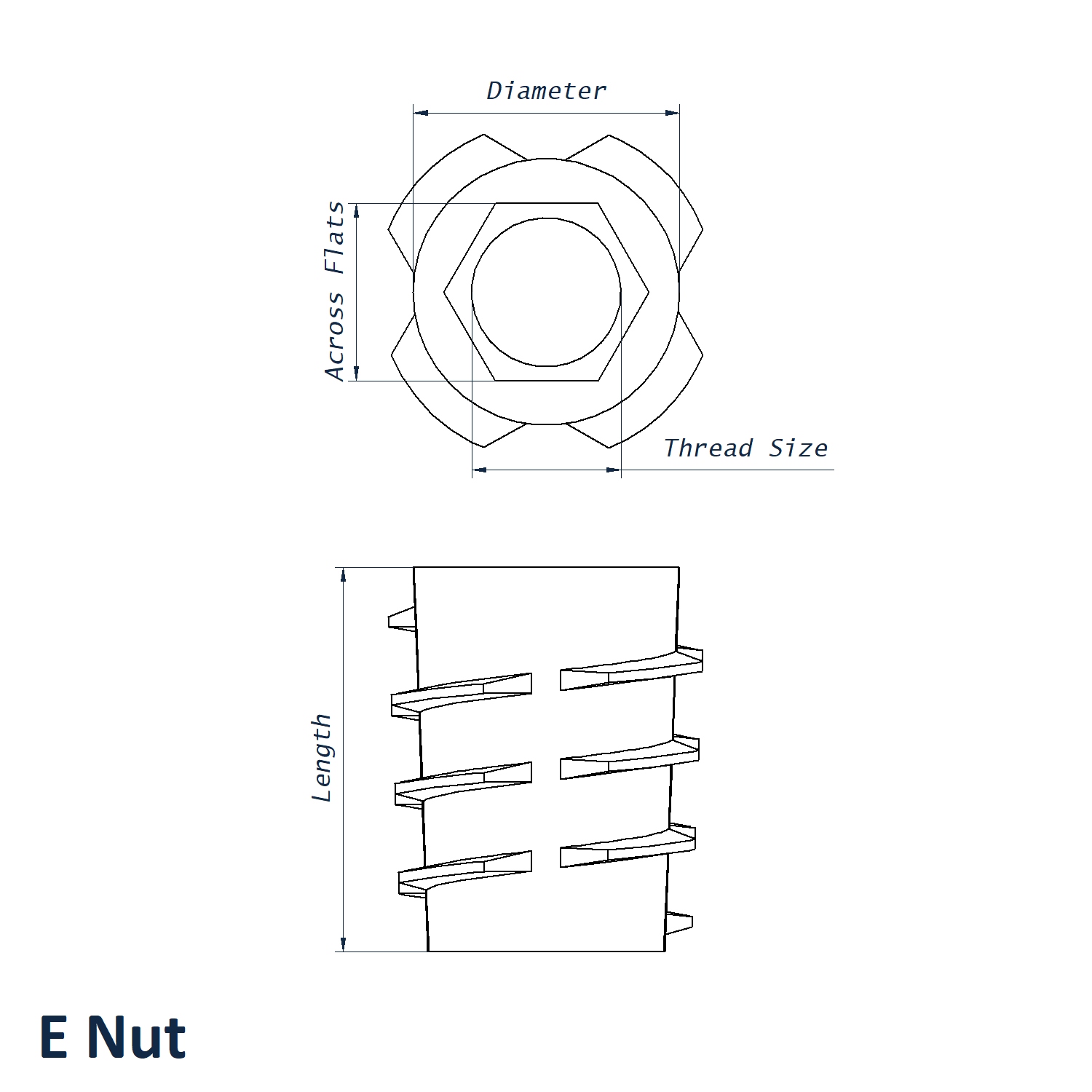

M8 x 25mm Cone Shaped E Nut Dimensions
- Diameter: 14.5mm
- Length: 25mm
- Hole Size: 11mm
- Thread Size: M8
- Allen Key: 8
- Material: Steel
- Colour: Silver
Commonly Used with Adjustable Feet
This M8 x 25mm E Nut is compatible with most adjustable feet that use a matching M8 thread. Check the description before buying to confirm the required hole size, installation depth and suitability for the chosen adjustable foot.
Click here to view our full range of Adjustable Feet.
View our full range of adjustable feet to check compatible styles, sizes and fixing options for your application.
