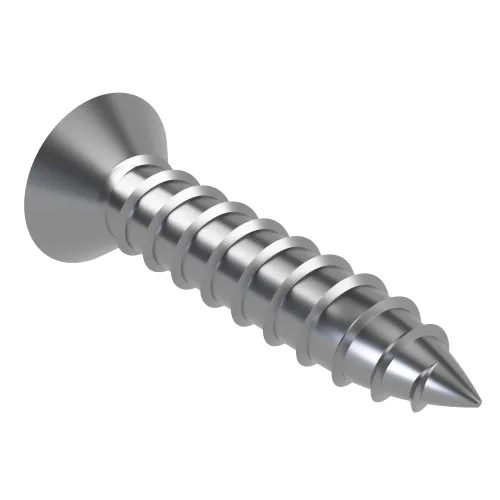

4.8mm x 110mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.96 | £2.35 |
| 100 - 499 | £1.00 | £1.20 |
| 500 - 999 | £0.84 | £1.01 |
| 1000 + | £0.64 | £0.77 |
£2.35 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Length | 110mm |
| Material | A2 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH2 |
| End Type | AB |
| Head Diameter | 9.5mm |
| Head Height | 3.00mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
4.8mm x 110mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | A2 Stainless Steel
Where a raised screw head would interfere with use, this 4.8mm x 110mm phillips sheet metal screw gives a flush option for attaching steel guide plates.
The Phillips drive supports positive tool engagement while the DIN 7982CH countersunk geometry helps the head sit cleanly after tightening. A2 stainless steel supports corrosion resistance and consistent performance in signage work where clean panel presentation is required.
Common Applications
- Attaching internal equipment rails
- Fitting inspection panels
- Securing fabricated corner plates
- Fastening display frames
4.8mm x 110mm Phillips Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 110mm
- Head Diameter: 9.5mm
- Head Height: 3.00mm
- End Type: AB
- Drive: PH2
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
