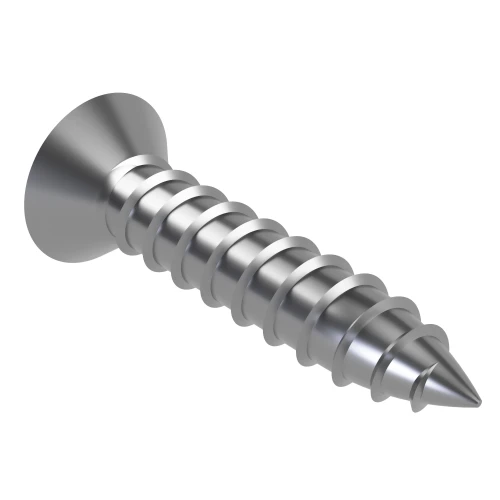

5.5mm x 50mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.31 | £1.57 |
| 100 - 499 | £0.67 | £0.80 |
| 500 - 999 | £0.56 | £0.67 |
| 1000 + | £0.42 | £0.51 |
Product Specification
| Thread Size | 5.5mm |
| Length | 50.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 10.8mm |
| Head Height | 3.40mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
5.5mm x 50mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | Marine Grade A4 Stainless Steel
For flush fitting in storage system environments, this 5.5mm x 50mm phillips sheet metal screw is suitable for installing fabricated brackets and other sheet material fixings.
The Phillips drive is suited to repeatable assembly work and the AB thread form assists with bite into compatible sheet materials. It can support self threading screw installations and fabrication screw requirements.
Common Applications
- Securing electrical panels
- Attaching small brackets
- Securing service access plates
- Securing utility covers
5.5mm x 50mm Phillips Countersunk Screw Dimensions
- Thread Size: 5.5mm
- Length: 50mm
- Head Diameter: 10.8mm
- Head Height: 3.40mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
