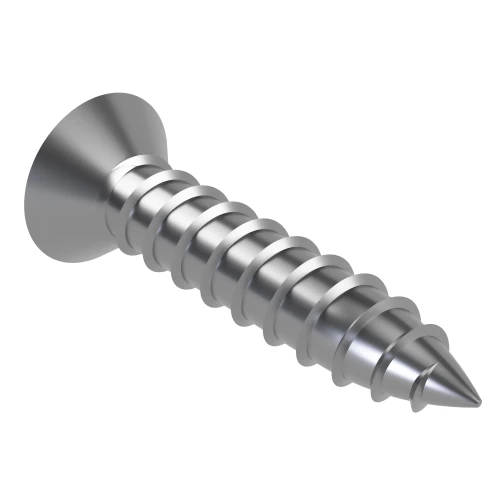

6.3mm x 25mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.97 | £1.16 |
| 100 - 499 | £0.49 | £0.59 |
| 500 - 999 | £0.42 | £0.50 |
| 1000 + | £0.32 | £0.38 |
Product Specification
| Thread Size | 6.3mm |
| Length | 25.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
6.3mm x 25mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | Marine Grade A4 Stainless Steel
When construction assemblies need fastening equipment flanges, this 6.3mm x 25mm countersunk assembly screw provides a straightforward fixing with a clean face finish.
The head geometry is suited to countersunk preparation, helping the fitted screw sit level with the panel face for a tidier result. Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for construction where secure clamping force is important.
Common Applications
- Securing bracketed fixings
- Installing control panels
- Mounting light duty covers
- Attaching enclosure hinges
6.3mm x 25mm Phillips Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 25mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
