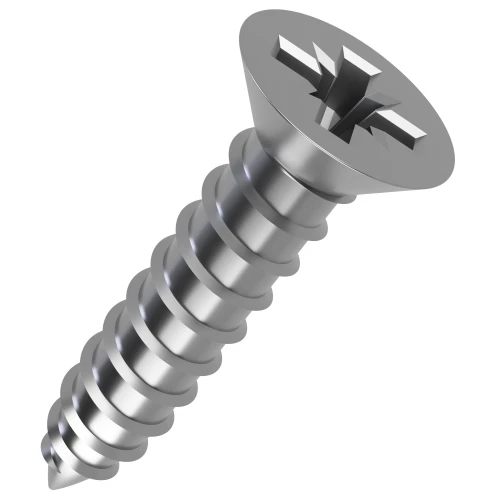

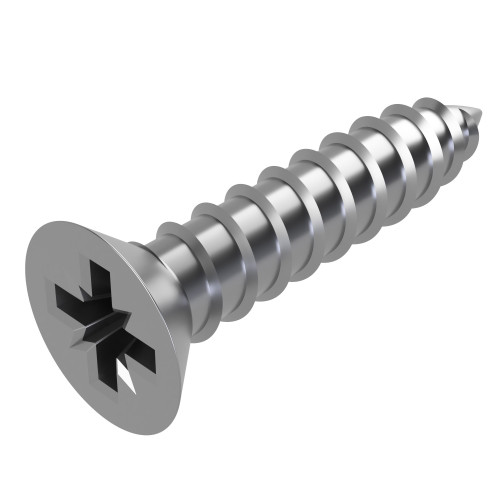

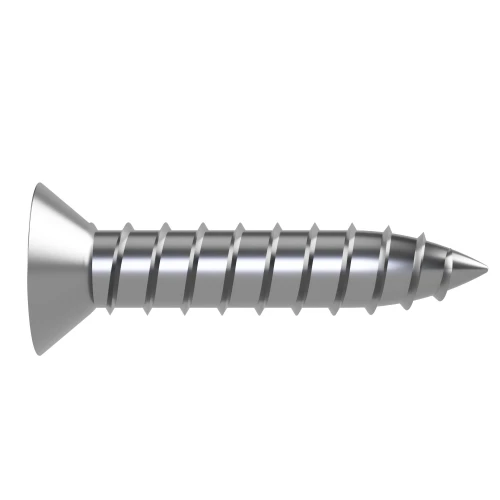

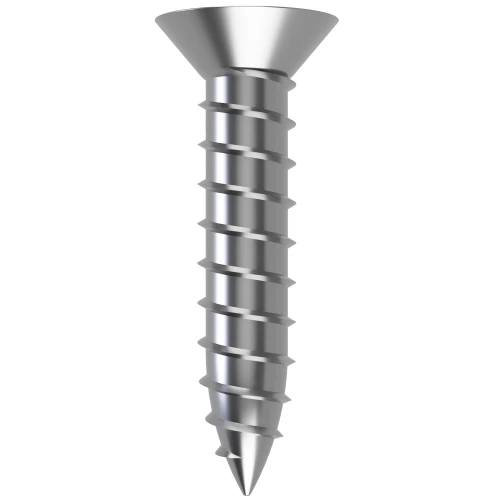

2.2mm x 9.5mm Pozi Countersunk AB Self Tapping Screw (DIN 7982CZ) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.16 | £0.19 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 + | £0.06 | £0.07 |
Product Specification
| Thread Size | 2.2mm |
| Length | 9.5mm |
| Material | A4 Stainless Steel |
| Drive Type | Pozi |
| Drive | PZ1 |
| End Type | AB |
| Head Diameter | 4.3mm |
| Head Height | 1.30mm |
| Standard | DIN 7982CZ |
Frequently Bought Together
Total Price: £0.00
2.2mm x 9.5mm Pozi Countersunk AB Self Tapping Screw DIN 7982CZ | Marine Grade A4 Stainless Steel
Built with an AB end type, this 2.2mm x 9.5mm metal fixing countersunk screw is intended for assembling service covers where the fixing needs to form its own thread.
The screw is designed to form its own mating thread and the countersunk head helps the finished assembly remain smooth. Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for access equipment where good load spread at the head is important.
Common Applications
- Fastening support plates
- Attaching workshop fixtures
- Carrying out maintenance repairs
- Attaching internal equipment rails

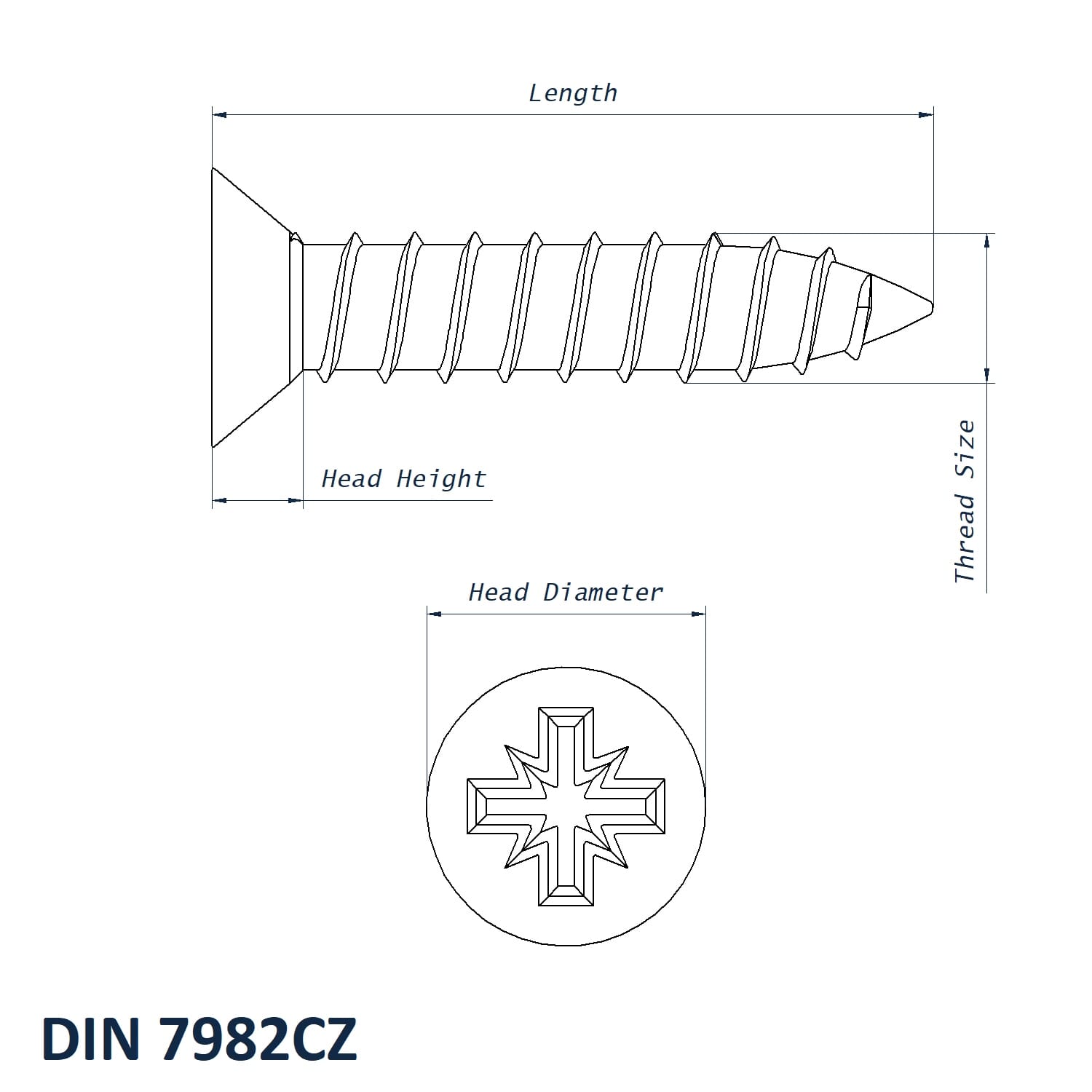

2.2mm x 9.5mm Pozi Countersunk Screw DIN 7982CZ Dimensions
- Thread Size: 2.2mm
- Length: 9.5mm
- Head Diameter: 4.3mm
- Head Height: 1.30mm
- Drive: PZ1
- End Type: AB
- Drive Type: Pozi
- Standard: DIN 7982CZ
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
