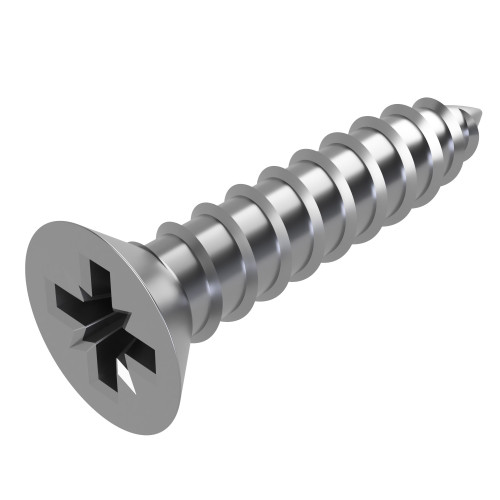

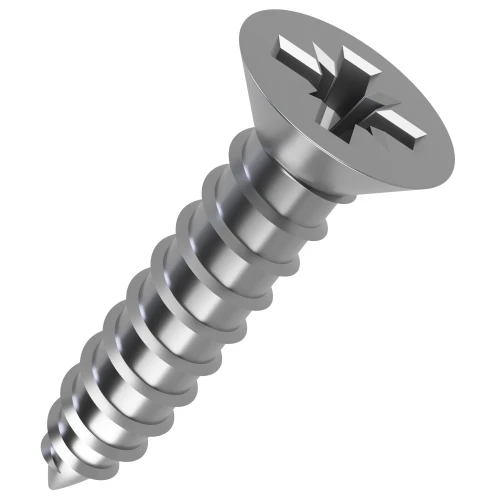

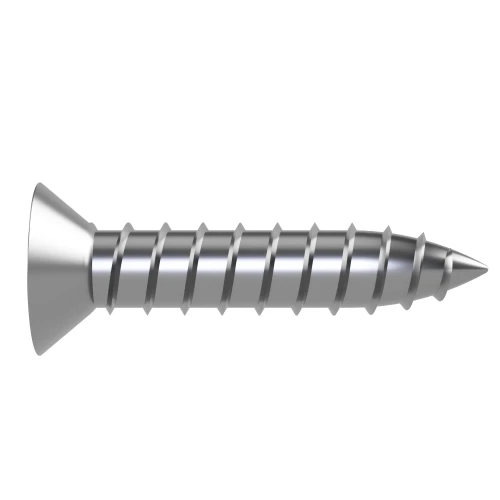

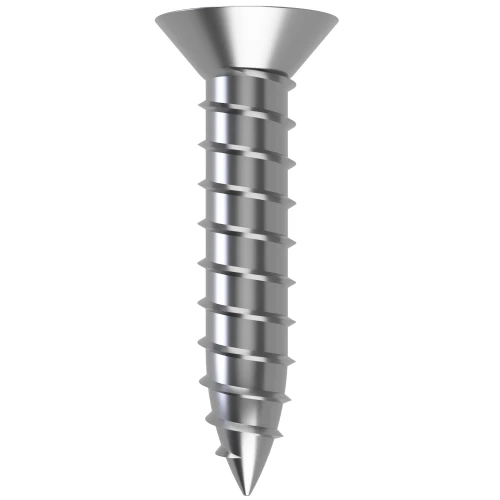

6.3mm x 22mm Pozi Countersunk AB Self Tapping Screw (DIN 7982CZ) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.88 | £1.05 |
| 100 - 499 | £0.46 | £0.55 |
| 500 - 999 | £0.37 | £0.44 |
| 1000 + | £0.30 | £0.36 |
Product Specification
| Thread Size | 6.3mm |
| Length | 22.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Pozi |
| Drive | PZ3 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982CZ |
Frequently Bought Together
Total Price: £0.00
6.3mm x 22mm Pozi Countersunk AB Self Tapping Screw DIN 7982CZ | Marine Grade A4 Stainless Steel
For flush fitting in storage system environments, this 6.3mm x 22mm countersunk fabrication screw is suitable for fixing HVAC ducting sections and other sheet material fixings.
The Pozi drive is suited to repeatable assembly work and the AB thread form assists with bite into compatible sheet materials. It can support self threading screw installations and fabrication screw requirements.
Common Applications
- Fitting trailer body panels
- Retaining machine access doors
- Repairing production equipment
- Attaching steel guide plates

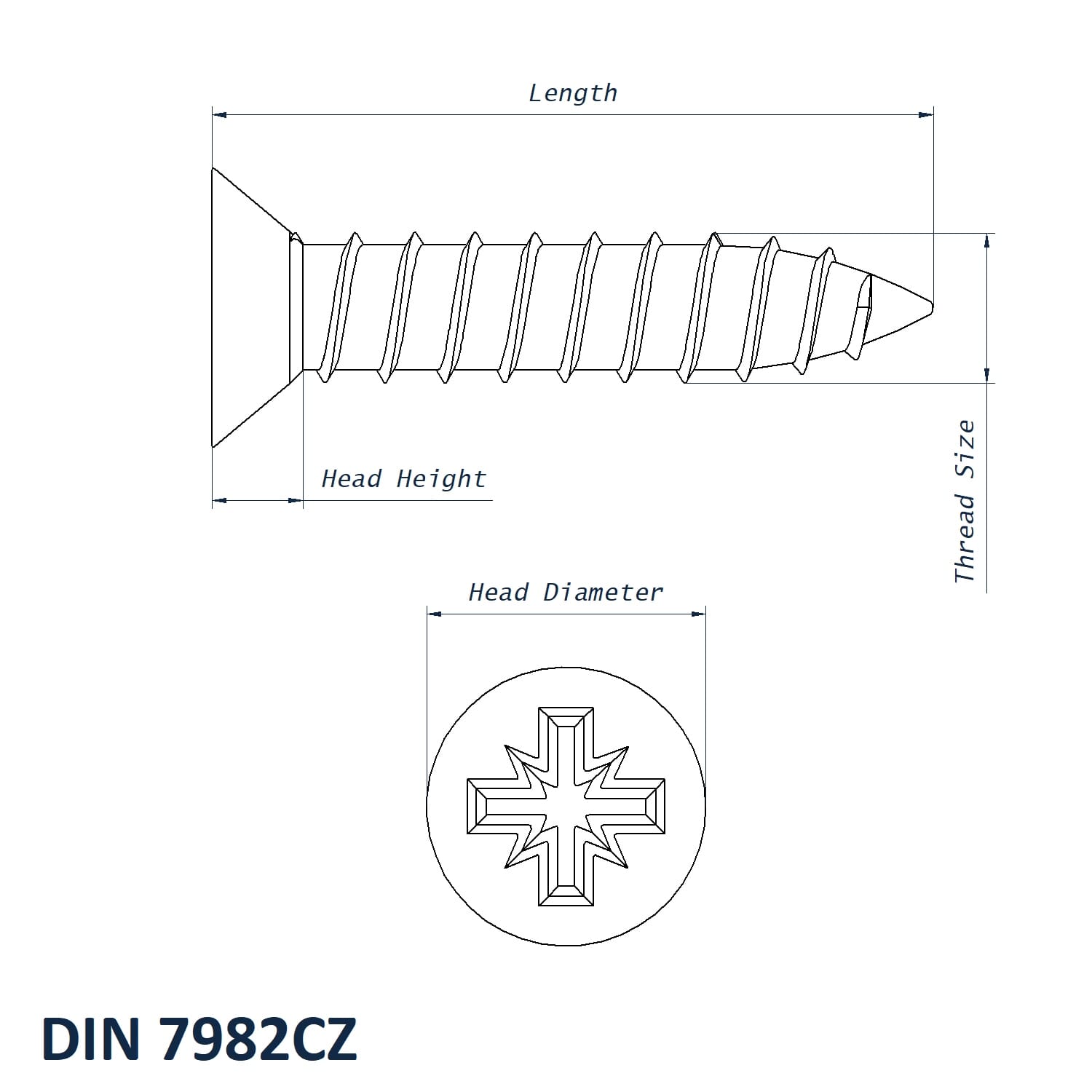

6.3mm x 22mm Pozi Countersunk Screw DIN 7982CZ Dimensions
- Thread Size: 6.3mm
- Length: 22mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- Drive: PZ3
- End Type: AB
- Drive Type: Pozi
- Standard: DIN 7982CZ
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
