3.5mm x 22mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.19 | £0.23 |
| 100 - 499 | £0.09 | £0.11 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 + | £0.07 | £0.09 |
£0.23 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Length | 22mm |
| Material | A2 Stainless Steel |
| Drive Type | Slotted |
| Drive | Slotted |
| End Type | AB |
| Head Diameter | 6.8mm |
| Head Height | 2.10mm |
| Standard | DIN 7972C |
Frequently Bought Together
Total Price: £0.00
3.5mm x 22mm Slotted Countersunk AB Self Tapping Screw DIN 7972C | A2 Stainless Steel
Chosen for compact panel builds, this 3.5mm x 22mm countersunk panel screw helps with repairing site equipment in storage system work.
With a low profile head and clear Slotted drive detail, the screw is practical for accessible fixings that may need future removal. A2 stainless steel supports corrosion resistance and consistent performance in storage system work where quick installation is required.
Common Applications
- Securing machinery side panels
- Fastening support plates
- Retaining service plates
- Fixing signage plates

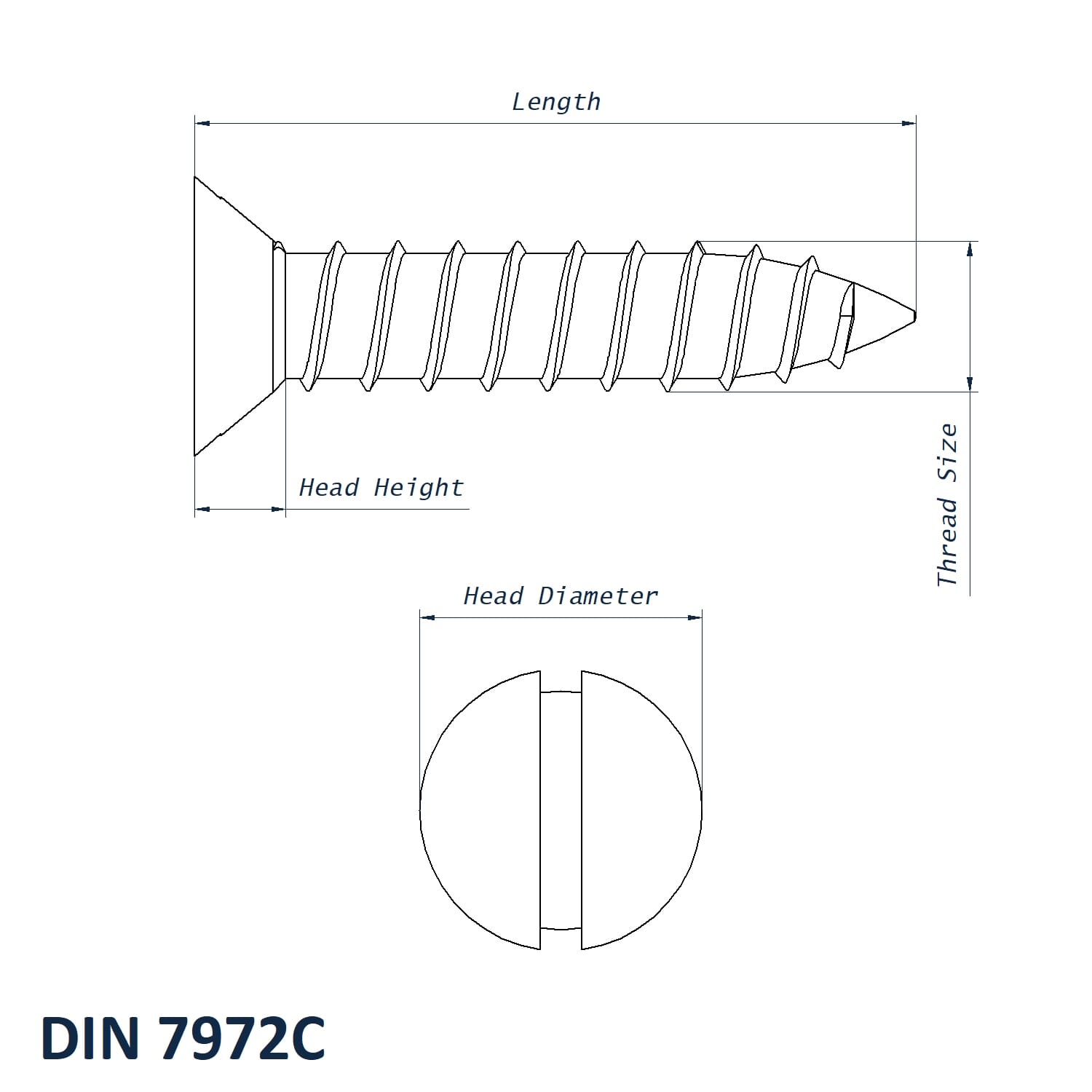

3.5mm x 22mm Slotted Countersunk Screw DIN 7972C Dimensions
- Thread Size: 3.5mm
- Length: 22mm
- Head Diameter: 6.8mm
- Head Height: 2.10mm
- Drive: Slotted
- End Type: AB
- Drive Type: Slotted
- Standard: DIN 7972C
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
