3.9mm x 16mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.30 | £0.36 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.13 | £0.16 |
| 1000 + | £0.12 | £0.14 |
Product Specification
| Thread Size | 3.9mm |
| Length | 16.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Torx |
| Drive | T15 |
| End Type | AB |
| Head Diameter | 7.5mm |
| Head Height | 2.30mm |
| Standard | DIN 7982C |
Frequently Bought Together
Total Price: £0.00

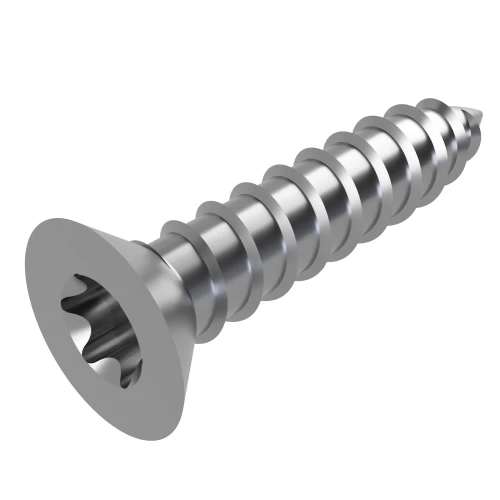

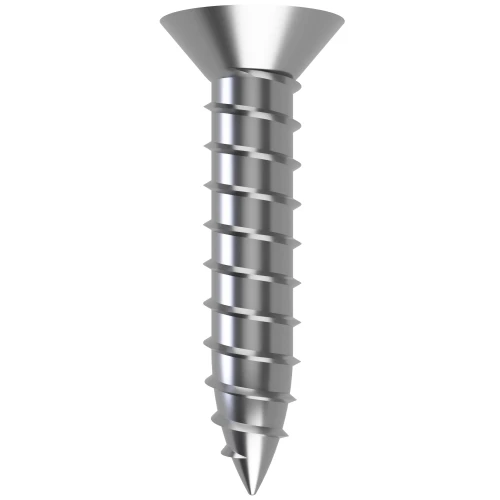

3.9mm x 16mm Torx Countersunk AB Self Tapping Screw DIN 7982C | Marine Grade A4 Stainless Steel
Built with an AB end type, this 3.9mm x 16mm flush head panel screw is intended for securing removable maintenance covers where the fixing needs to form its own thread.
The screw is designed to form its own mating thread and the countersunk head helps the finished assembly remain smooth. Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for access equipment where good load spread at the head is important.
Common Applications
- Retaining machine access doors
- Mounting metal retainer plates
- Mounting steel panel inserts
- Attaching panel stiffeners
3.9mm x 16mm Torx Countersunk Screw DIN 7982C Dimensions
- Thread Size: 3.9mm
- Length: 16mm
- Head Diameter: 7.5mm
- Head Height: 2.30mm
- Drive: T15
- End Type: AB
- Drive Type: Torx
- Standard: DIN 7982C
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
