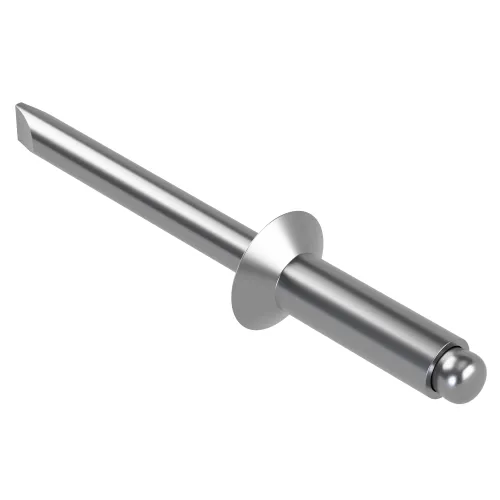

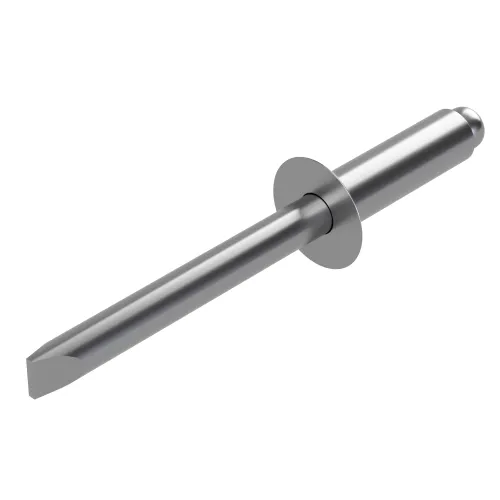

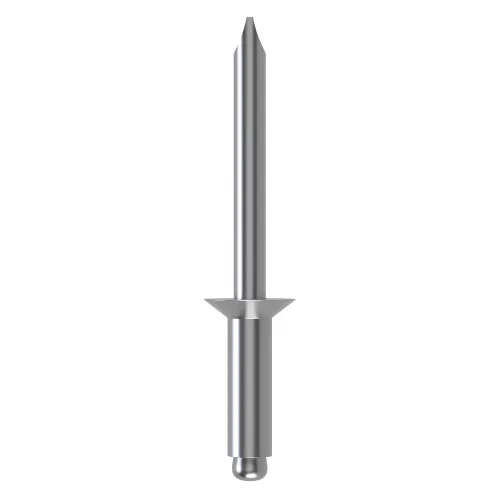

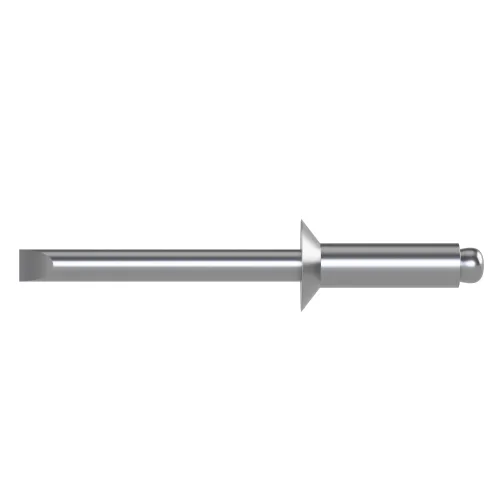

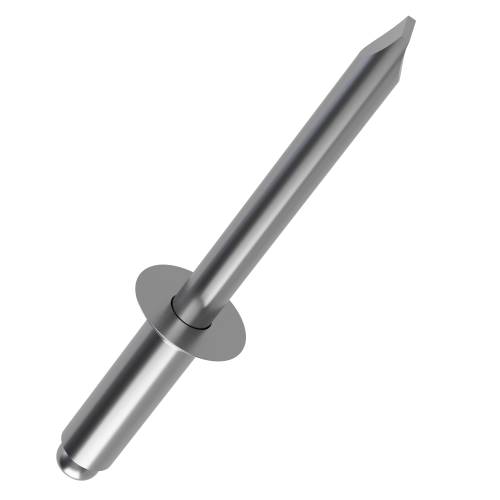

5.0mm x 20mm Countersunk Blind Rivet (13.0-15.0mm Grip) ISO 15984 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 100 - 999 | £0.31 | £0.37 |
| 1000 - 9999 | £0.26 | £0.31 |
| 10000 + | £0.19 | £0.23 |
£0.37 / each
.png)

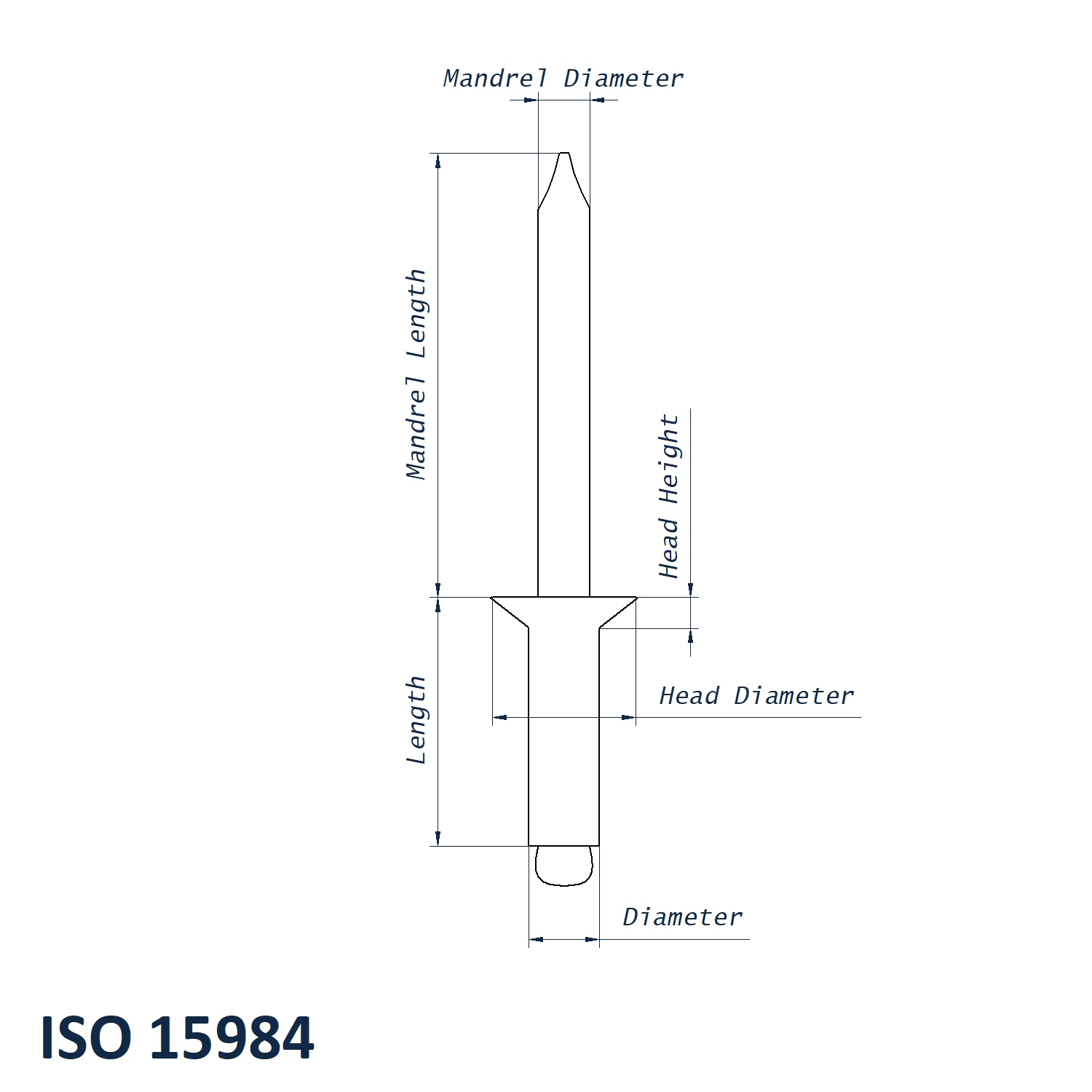

Product Specification
| Diameter | 5.0mm |
| Length | 20mm |
| Grip Length | 13.0-15.0mm |
| Body Material | A2 Stainless Steel |
| Mandrel Material | A2 Stainless Steel |
| Head Diameter | 10.5mm |
| Head Height | 2.1mm |
| Shear Force | 4700N |
| Tensile Force | 5800N |
| Standard | ISO 15984 |
Frequently Bought Together
Total Price: £0.00
5.0mm x 20mm Countersunk Blind Rivet (13.0-15.0mm Grip) ISO 15984 A2 Stainless Steel
The 5.0mm x 20mm Countersunk Blind Rivet (13.0-15.0mm Grip) ISO 15984 A2 Stainless Steel is a countersunk blind rivet designed to create a secure, permanent fastening while leaving a low-profile, flush-style finish. Manufactured with a A2 Stainless Steel body and A2 Stainless Steel mandrel to ISO 15984, it is suitable for applications where access is available from only one side of the assembly.
What are Countersunk Blind Rivets?
Countersunk blind rivets, also known as countersunk pop rivets, are installed through pre-drilled holes using a blind rivet tool. As the mandrel is pulled, the rivet body expands behind the material to clamp the joined components together before the mandrel breaks at its designed point. The countersunk head is intended to sit neatly within a suitably prepared countersunk hole for a reduced-profile finish.
Technical Specifications:
- Diameter: 5.0mm
- Length: 20mm
- Grip Length: 13.0-15.0mm
- Head Diameter: 10.5mm
- Head Height: 2.1mm
- Shear Force: 4700N
- Tensile Force: 5800N
- Body Material: A2 Stainless Steel
- Mandrel Material: A2 Stainless Steel
- Standard: ISO 15984
Applications:
Suitable for sheet metal, panels, enclosures, cabinets, machinery, fabricated components and general engineering assemblies where a countersunk finish is required. The 13.0-15.0mm grip range is suitable where the combined thickness of the joined materials falls within this range.
Benefits:
- Suitable for installation where access is available from only one side.
- Countersunk head provides a neat, low-profile finish when used with a correctly prepared hole.
- A2 Stainless Steel construction offers good corrosion resistance for general industrial and outdoor applications.
- Manufactured to ISO 15984 for consistent dimensions and performance.
- Specified grip range helps with selecting the correct rivet for the total material thickness.
