8mm x 350mm Torx Countersunk (Part Threaded) Chipboard Screw | A2 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £5.60 | £6.72 |
| 100 - 499 | £4.91 | £5.89 |
| 500 - 999 | £4.34 | £5.21 |
| 1000 - 4999 | £3.76 | £4.51 |
| 5000 + | £2.58 | £3.09 |
Product Specification
| Thread Size | 8.0mm |
| Length | 350mm |
| Material | A2 Stainless Steel |
| Thread Length | 210mm |
| Head Diameter | 15.00mm |
| Head Height | 4.10mm |
| Drive Size | T40 |
| Drive | Torx |
Frequently Bought Together
- Material Blackened Steel & Duroplast
- Thread Type Male
- Handle Length 117mm
- Thread & Length M12 x 50mm
- Body Height 48.5mm
- Body Diameter 19.0mm
- Ball Diameter 32mm
- Shoulder Height 6mm
- Thread Size 6.3mm
- Material A2 Stainless Steel
- Head Diameter 12.4mm
- Length 25.0mm
- Drive Security T30
- Standard N/A
- Head Height 3.80mm
- End Type AB
- Drive Type Pin Torx
- Material A2 Stainless Steel
- Thickness 1.6mm
- Internal Diameter 8.4mm
- Outside Diameter 16.0mm
- Standard DIN 125A
- Size M8
Total Price: £0.00

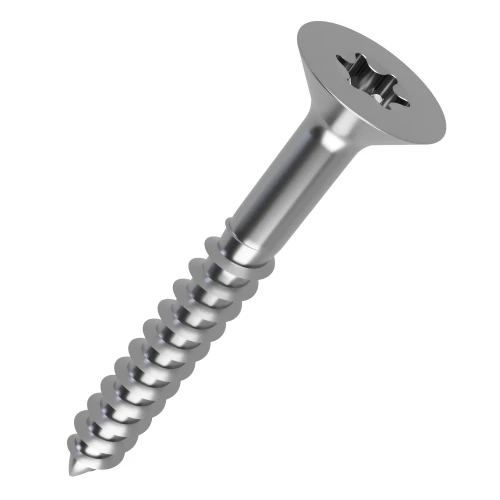

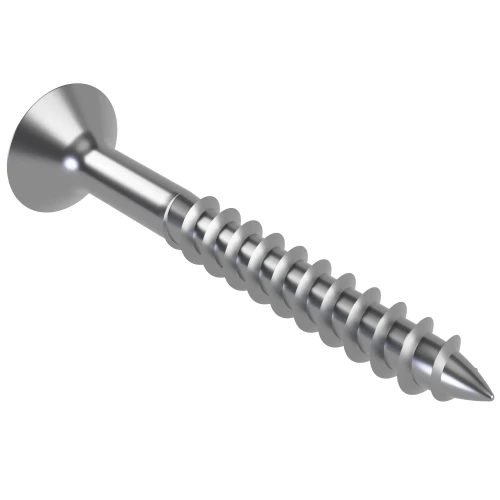

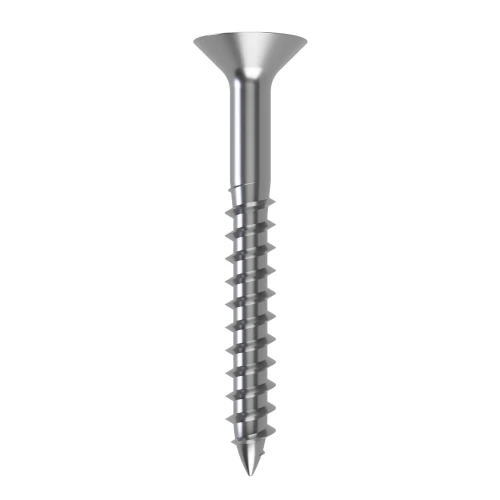

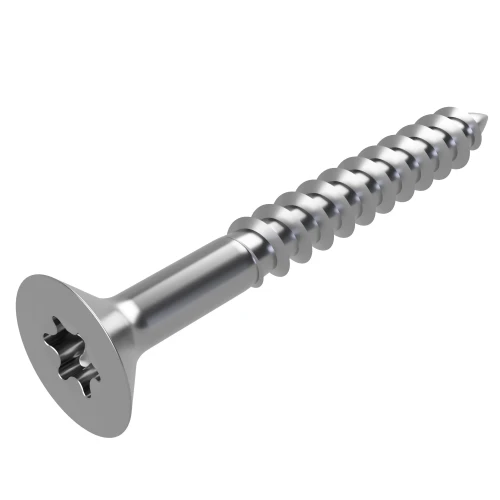

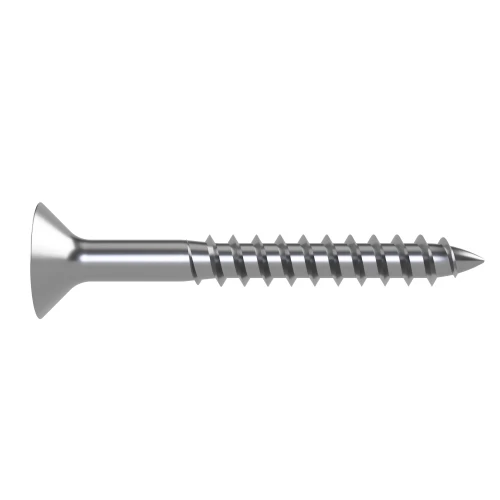

8mm x 350mm Torx Countersunk Part Threaded Chipboard Screw | A2 Stainless Steel
These 8mm x 350mm Torx Countersunk Part Threaded Chipboard Screws are intended for substantial timber sections where deeper engagement and enhanced retention are required. The extended length supports structural timber and heavy-duty woodworking applications.
Manufactured from A2 Stainless Steel, these chipboard screws are well suited to exterior timber projects thanks to the corrosion resistance of A2 stainless steel. The Torx recess helps maintain positive drive engagement during demanding installations. The 15mm head diameter and 4.10mm head height provide a neat countersunk finish when installed flush with the material surface.
Common Applications
- Timber construction and joinery
- Furniture manufacture
- Cabinetry and woodworking
- Chipboard and timber sheet materials

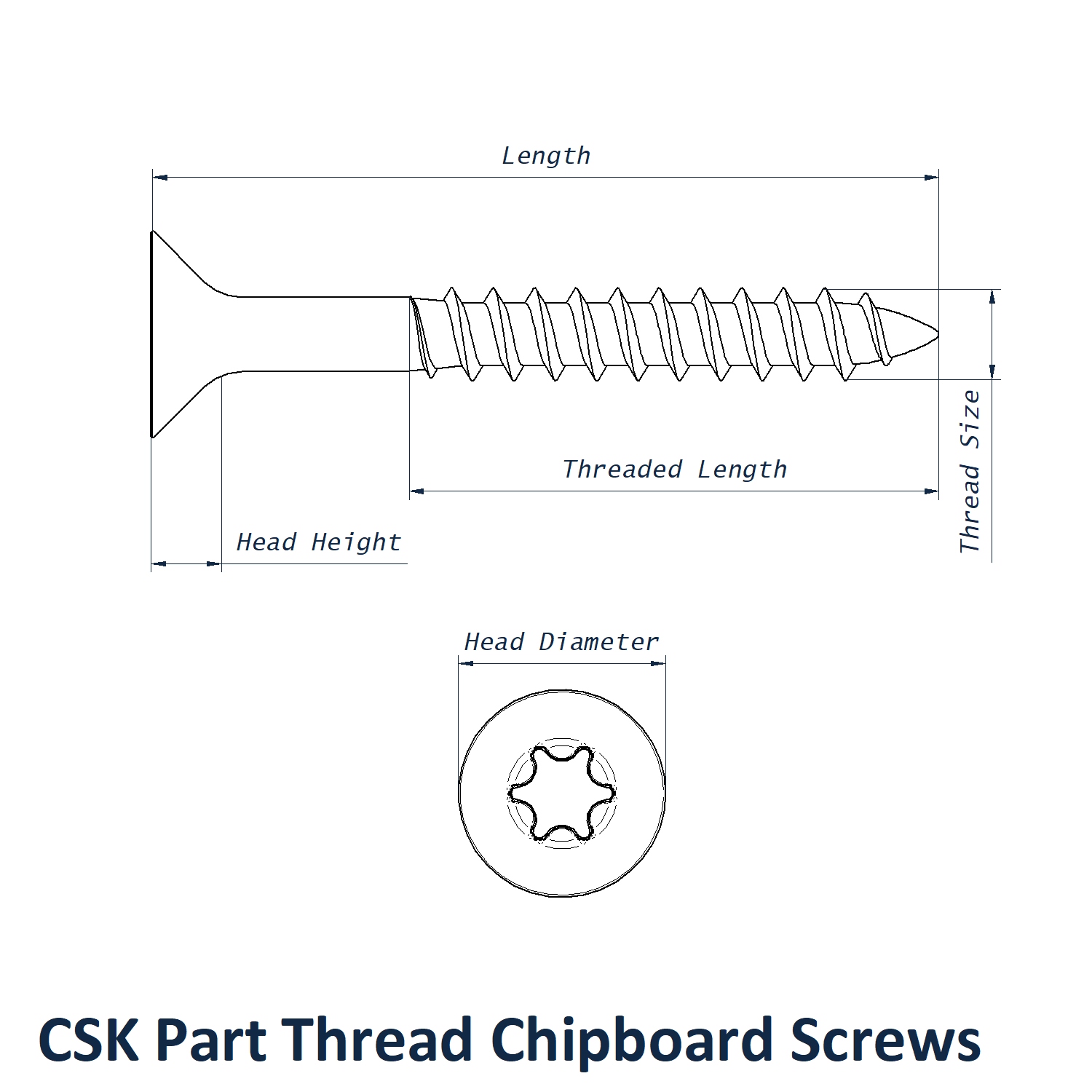

8mm x 350mm Chipboard Screw Dimensions
- Thread Size: 8mm
- Length: 350mm
- Thread Length: 210mm
- Head Diameter: 15mm
- Head Height: 4.10mm
- Drive Size: T40
- Drive: Torx
- Material: A2 Stainless Steel
View our full Chipboard Screw range or browse our Wood Screw collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
| Code | Thread Size | Material | Thread Length | Head Diameter | Length | Drive | Head Height | Drive Size | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| CHCT-P-10.0-100-A2 | 10.0mm | A2 Stainless Steel | 60mm | 19.00mm | 100mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-10.0-110-A2 | 10.0mm | A2 Stainless Steel | 66mm | 19.00mm | 110mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-10.0-120-A2 | 10.0mm | A2 Stainless Steel | 72mm | 19.00mm | 120mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-10.0-130-A2 | 10.0mm | A2 Stainless Steel | 78mm | 19.00mm | 130mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-10.0-60-A2 | 10.0mm | A2 Stainless Steel | 36mm | 19.00mm | 60mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-10.0-70-A2 | 10.0mm | A2 Stainless Steel | 42mm | 19.00mm | 70mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-10.0-80-A2 | 10.0mm | A2 Stainless Steel | 48mm | 19.00mm | 80mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-10.0-90-A2 | 10.0mm | A2 Stainless Steel | 54mm | 19.00mm | 90mm | Torx | 4.70mm | T40 |
Checking...
|
|
| CHCT-P-8.0-350-A2 | 8.0mm | A2 Stainless Steel | 210mm | 15.00mm | 350mm | Torx | 4.10mm | T40 |
Checking...
|
|
| CHCT-P-8.0-375-A2 | 8.0mm | A2 Stainless Steel | 225mm | 15.00mm | 375mm | Torx | 4.10mm | T40 |
Checking...
|
|
| CHCT-P-8.0-400-A2 | 8.0mm | A2 Stainless Steel | 240mm | 15.00mm | 400mm | Torx | 4.10mm | T40 |
Checking...
|
|
