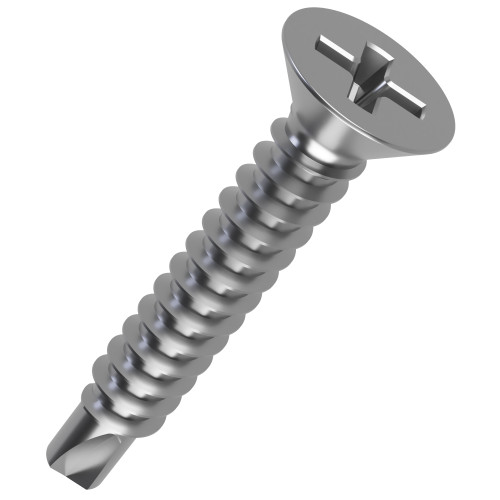

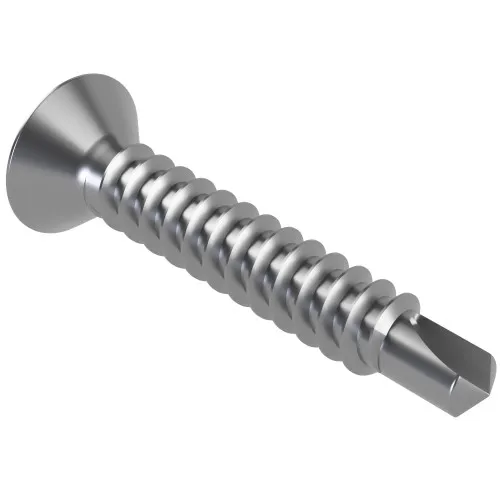

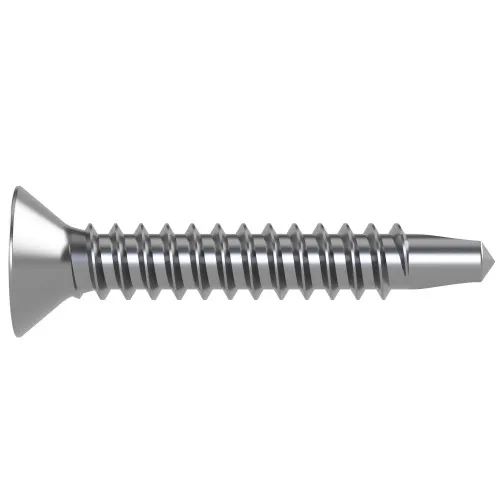

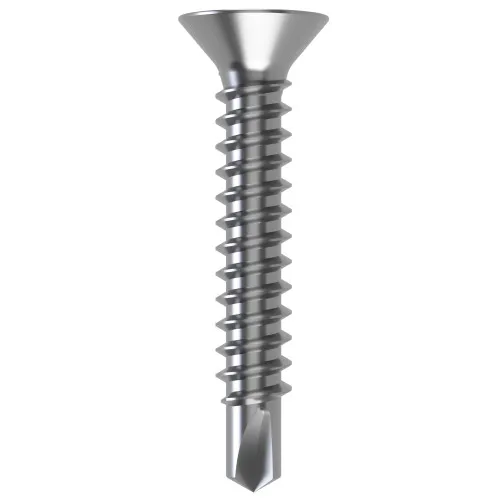

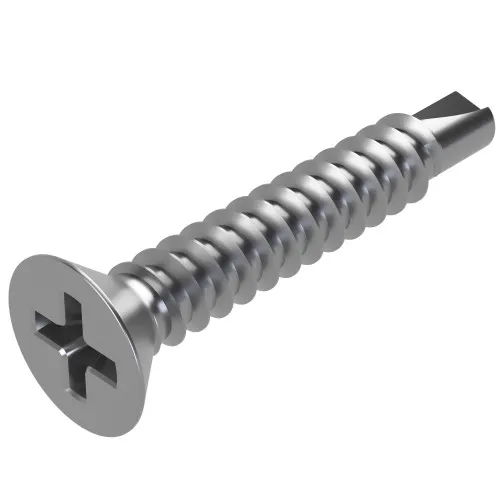

5.5mm x 100mm Phillips Countersunk Self Drilling Screw DIN 7504OH | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 200 - 1999 | £0.63 | £0.76 |
| 2000 - 4999 | £0.45 | £0.54 |
| 5000 + | £0.35 | £0.42 |
£0.76 / each

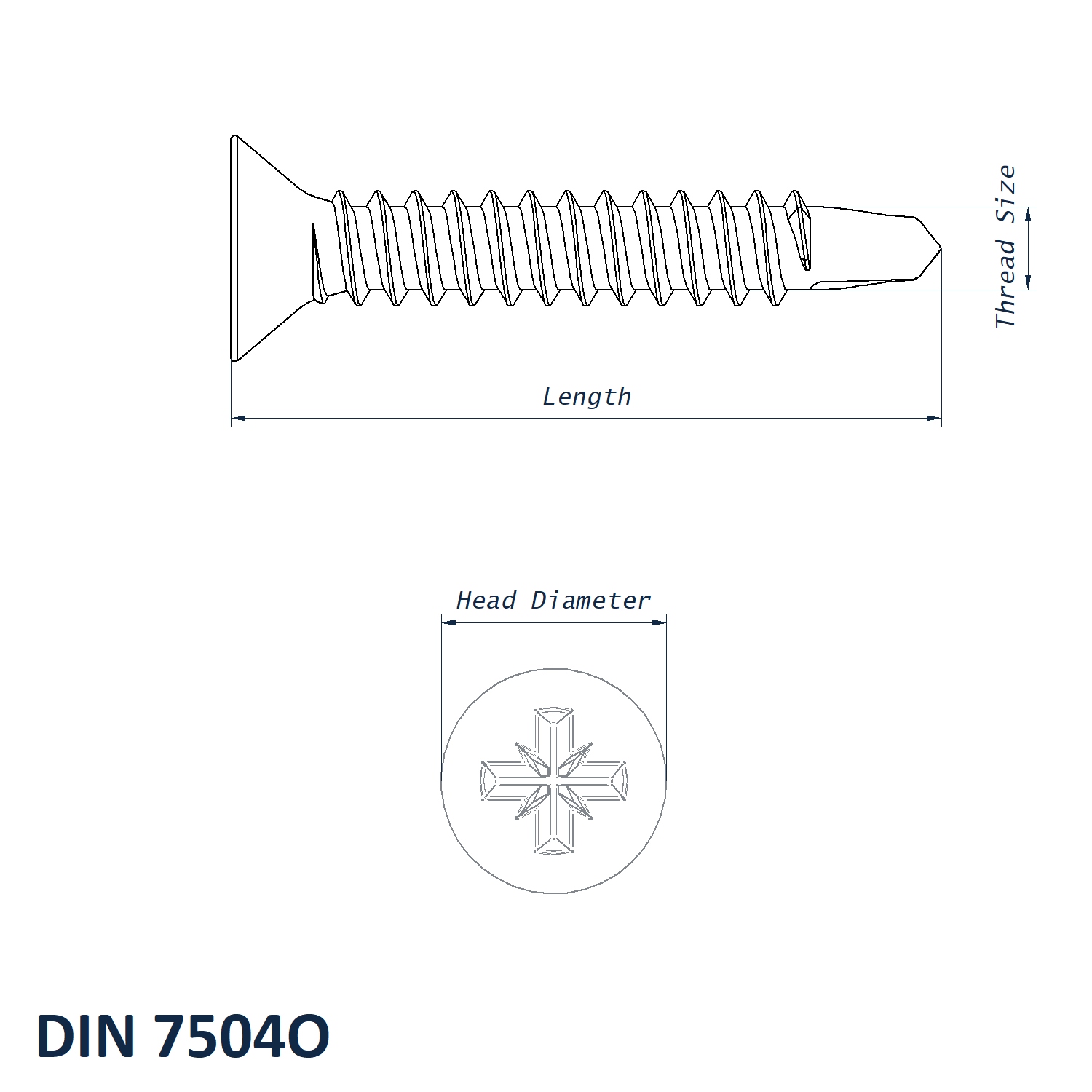

Product Specification
| Thread Size | 5.5mm |
| Length | 100mm |
| Drive | PH3 |
| Head Diameter | 10.3mm |
| Head Height | 3.00mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504OH |
Frequently Bought Together
Total Price: £0.00
5.5mm x 100mm Phillips Countersunk Self Drilling Screw DIN 7504OH A2 Stainless Steel DR7504OH-5.5-100-A2
The 5.5mm x 100mm Phillips Countersunk Self Drilling Screw is designed to drill and fasten into suitable sheet metal and light-gauge steel without requiring a separate pilot hole in many applications. Manufactured from corrosion-resistant A2 Stainless Steel and produced to DIN 7504OH, it combines a self-drilling point with a countersunk head for a neat, flush finish.
What are Phillips Countersunk Self Drilling Screws?
Phillips countersunk self drilling screws are threaded fasteners with an integrated drill point that cuts through compatible metal substrates before forming or engaging a thread. The countersunk head is designed to sit flush with the surface of the fixed component, while the Phillips recess provides straightforward installation using a compatible screwdriver bit.
Technical Specifications:
- Thread Size: 5.5mm
- Length: 100mm
- Head Height: 3.00mm
- Head Diameter: 10.3mm
- Drive: PH3
- Standard: DIN 7504OH
- Material: A2 Stainless Steel
Applications:
- Sheet metal fabrication and assembly
- Metal cladding, panels and enclosures
- HVAC ducting and light-gauge framework
- Electrical and equipment housings
- General engineering and maintenance
- Applications requiring a flush countersunk finish
Benefits:
- Self-drilling point can reduce the need for pre-drilling
- Countersunk head provides a neat, flush surface finish
- Phillips drive allows installation with commonly available tooling
- A2 stainless steel offers good general corrosion resistance
- DIN 7504OH manufacture supports consistent dimensions and performance
- Suitable for efficient assembly in a wide range of metalworking applications
