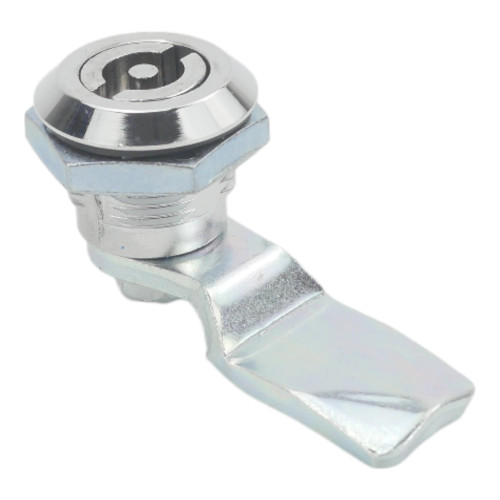

26mm Cam Depth Double-Bit Key Camlock
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £5.64 | £6.77 |
| 25 - 49 | £5.15 | £6.18 |
| 50 - 99 | £4.66 | £5.59 |
| 100 + | £4.10 | £4.92 |
Product Stock

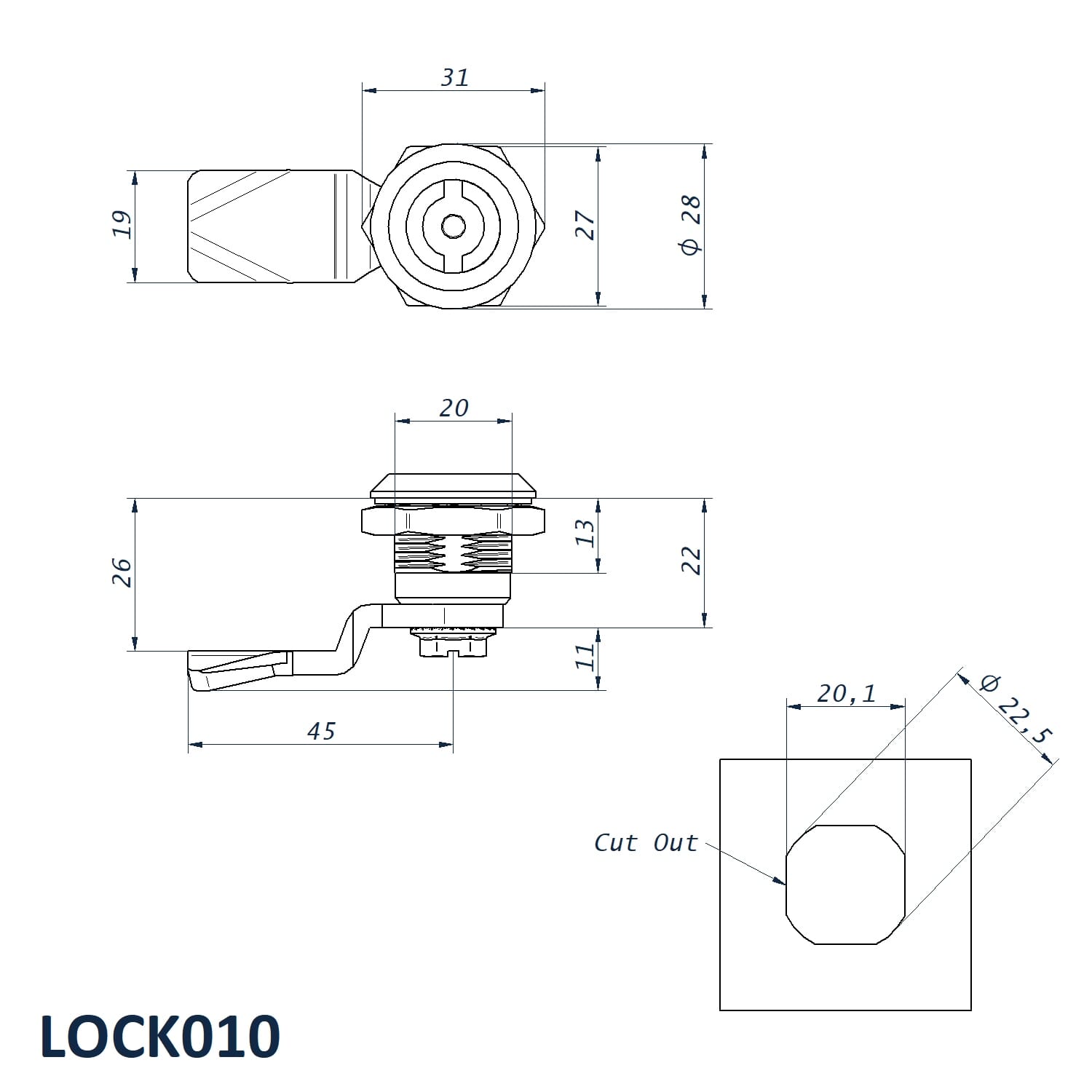

| Product Specifications | LOCK010 |
|---|---|
| Head Diameter | 28mm |
| Material | Chrome Plated Die Cast Zinc |
| Key Type | Double Bit Key (Sold Separately) |
| Cam Depth | 26mm |
| Cam Length | 45mm |
| Hole Size | 22.5mm |
| Across Flats | 27mm |
| Thread Length | 13mm |
| Thread Size | 20mm |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This Double-Bit Key Camlock has a Hole Size of 22.5mm, a Thread Length of 13mm and a Thread Size of 20mm. It is ideal for applications such as cabinets and secure enclosures. This Double-Bit Key Camlock is made from Chrome Plated Die Cast Zinc and has an IP Rating of IP45; protecting it from dust and water. Chrome Plated Die Cast Zinc is hardwearing and has a strength of 48,000 PSI. This Camlock has a Cam Length of 45mm and a Head Diameter of 28mm. It can be locked and unlocked with the use of a matching Double-Bit Key which is a rare key type; increasing security and limiting access.
