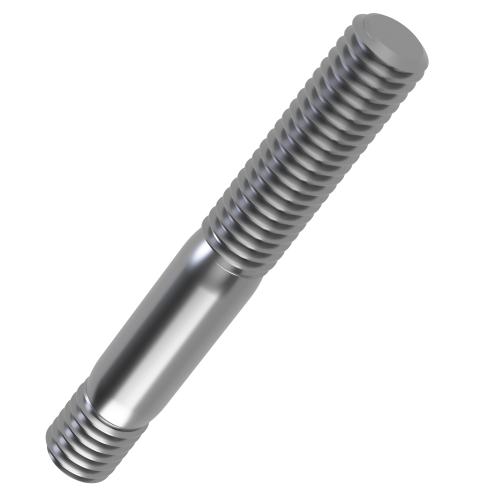

M10 x 45mm Double Ended Threaded Rod with 12mm Engagement Length | DIN 939 | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.95 | £2.34 |
| 100 - 499 | £1.62 | £1.95 |
| 500 - 999 | £1.39 | £1.67 |
| 1000 + | £1.22 | £1.46 |

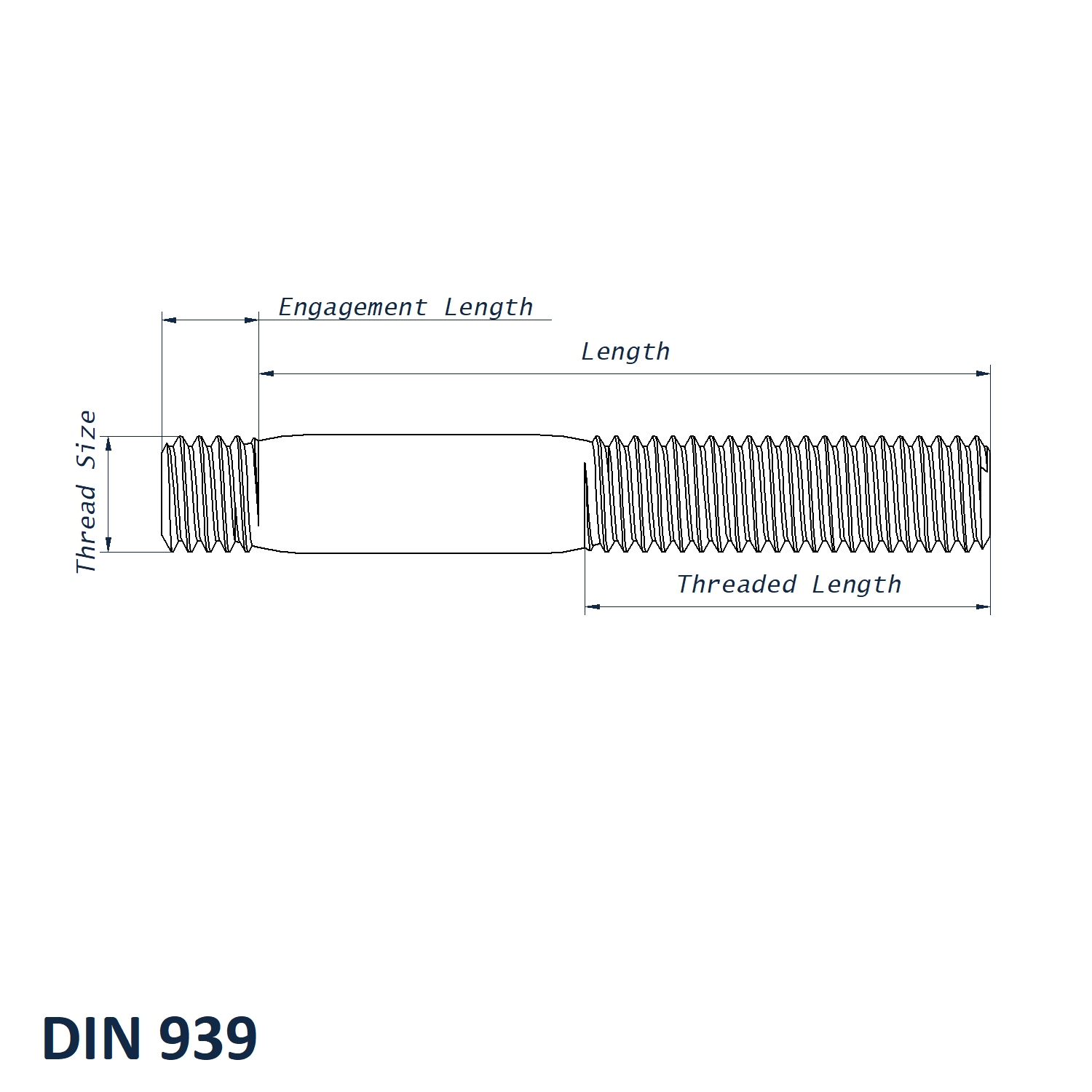

Product Specification
| Thread Size | M10 |
| Thread Pitch | 1.50mm |
| Engagement Length | 12mm |
| Length | 45mm |
| Overall Length | 57mm |
| Standard | DIN 939 |
| Threaded Length | 26mm |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 45mm Double Ended Threaded Stud | DIN 939 | A2 Stainless Steel - STUD939-M10-45-A2
The M10 x 45mm Double Ended Threaded Stud, also commonly called an Engineer's Stud, is manufactured to DIN 939 from A2 Stainless Steel. Designed with threaded sections at both ends, it provides a secure fastening point for engineering, machinery, fabrication and general assembly applications.
What are Double Ended Threaded Studs?
Double Ended Threaded Studs, or Engineer's Studs, are typically installed with one threaded end secured into a tapped hole or component while the opposite end accepts a nut or mating component. This arrangement is useful where components may need to be assembled and removed repeatedly.
Technical Specifications:
- Thread Size: M10
- Length: 45mm
- Overall Length: 57mm
- Engagement Length: 12mm
- Threaded Length: 26mm
- Thread Pitch: 1.50mm
- Standard: DIN 939
- Material: A2 Stainless Steel
Applications:
Suitable for machinery, equipment housings, automotive assemblies, flanges, brackets, fabrication and other engineering installations requiring a reliable double-ended threaded fixing.
Benefits:
- Double-ended design for secure component-to-component fastening
- Manufactured to DIN 939 for consistent dimensions
- A2 Stainless Steel construction for corrosion resistance and durability
- Suitable for repeated assembly and disassembly applications
