10.2 -12.8mm Finned Pull Tab Plug (13.1mm Fin Diameter) | Bio LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.25 | £0.30 |
| 100 - 499 | £0.18 | £0.22 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.07 | £0.09 |
Product Specification
| For Hole ID | 10.2 -12.8mm |
| Finned Diameter | 13.1mm |
| Finned Depth | 9.4mm |
| Finned Width | 9.6mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 16mm |
| Material | Bio LDPE |
| Colour | Green |
Frequently Bought Together
Total Price: £0.00

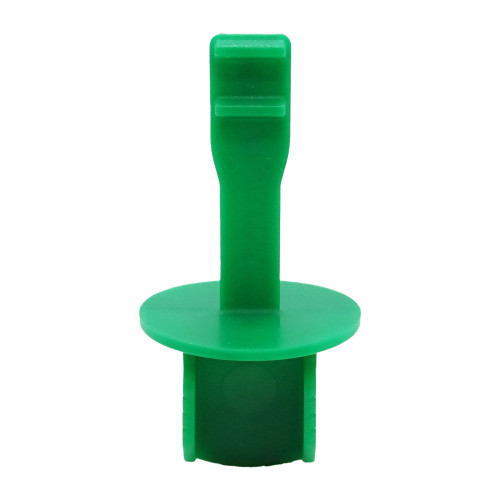

10.2-12.8mm Green Bio LDPE Finned Pull Tab Plug
Ideal for protecting medium-small fluid ports, this 10.2-12.8mm green pull tab protector is moulded from Bio LDPE. The finned section creates contact at several points inside the hole and the 16mm flange forms a clear external stop. A raised pull tab makes the plug simple to remove at the next manufacturing stage.
What Are Finned Pull Tab Plugs?
Unlike a rigid stopper sized to one exact diameter, a flexible finned plug can work across a controlled internal diameter range. The ribs deform during insertion then press against the bore to support retention. This makes the product useful for temporary protection where components must remain clean and accessible rather than permanently sealed.
Common Applications
- CNC Machined Parts: Protects finished internal features during inspection, deburring and inter-site transport.
- Fuel-System Assembly: Helps keep open connectors covered before hoses or mating components are fitted.
- Sheet Metal Fabrication: Provides removable hole protection during handling and selected low-temperature finishing work.
- Industrial Pump Components: Covers small inlet, outlet and service ports while equipment is stored.

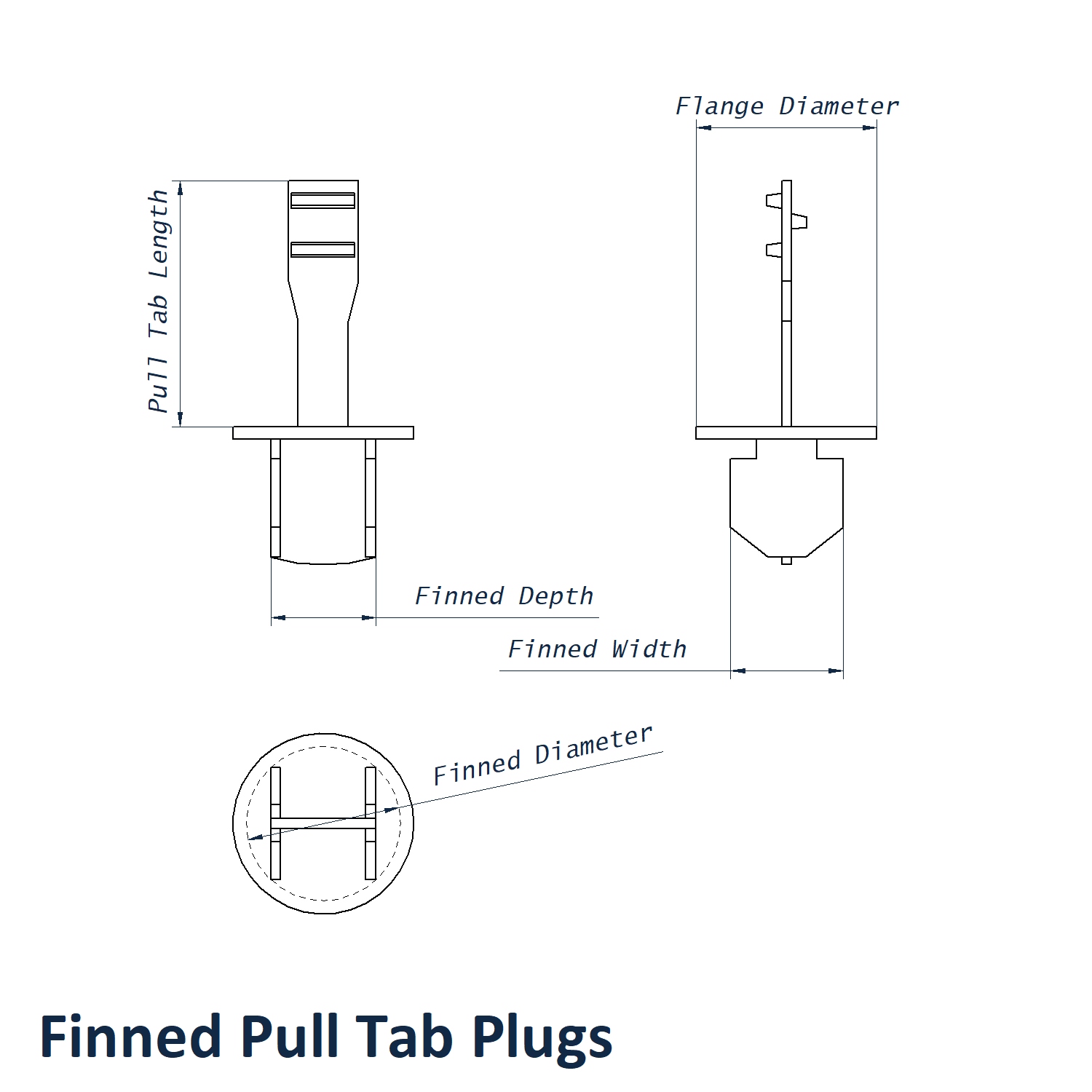

10.2 -12.8mm Green Bio LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 9.4mm
- Finned Width: 9.6mm
- Pull Tab Length: 25mm
- Flange Diameter: 16mm
- Finned Diameter: 13.1mm
- For Hole ID: 10.2 -12.8mm
- Colour: Green
- Material: Bio LDPE
Key Benefits
- Fits internal holes from 10.2 -12.8mm
- Green colour supports visual identification on mixed production batches
- Multi-fin body maintains contact across slight bore variation
- 25mm pull tab speeds up removal before final connection
Compare all available internal diameter ranges through the Vital Parts Finned Pull Tab Plugs page. Selection support and larger quantity enquiries can be discussed with our technical sales team on 01233 713 581.
