10.2 -12.8mm Finned Pull Tab Plug (13.1mm Fin Diameter) | Recycled LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.24 | £0.29 |
| 100 - 499 | £0.17 | £0.21 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.07 | £0.08 |
£0.29 / each
Product Specification
| For Hole ID | 10.2 -12.8mm |
| Finned Diameter | 13.1mm |
| Finned Depth | 9.4mm |
| Finned Width | 9.6mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 16mm |
| Material | Recycled LDPE |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00

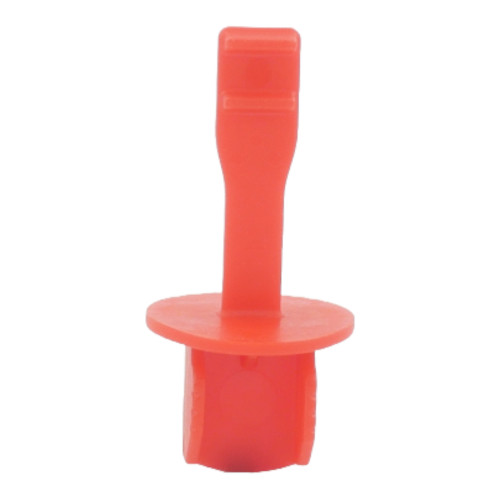

10.2-12.8mm Red Recycled LDPE Finned Pull Tab Plug
Suitable for ports between 10.2mm and 12.8mm, this red Recycled LDPE fluid connector plug combines a multi-fin grip with a prominent removal tab. The 16mm flange protects the external face and stops the body travelling through the opening. It is well suited to temporary protection where red identification is useful.
What Are Finned Pull Tab Plugs?
During fitting, the tapered fins compress against the bore and establish several contact points. This supports retention despite small variations within the stated internal diameter range. Once the protected part reaches assembly or testing, the 25mm tab can be pulled to withdraw the plug cleanly.
Common Applications
- Brake and Fuel Components: Keeps exposed connection points protected during controlled production handling.
- Machined Housings: Covers internal features between CNC work, washing and inspection.
- Public Sector Fleet Maintenance: Provides visible temporary closures for removed hydraulic and fluid components.
- Warehouse Dispatch: Reduces contamination risk while finished parts are prepared for shipment.

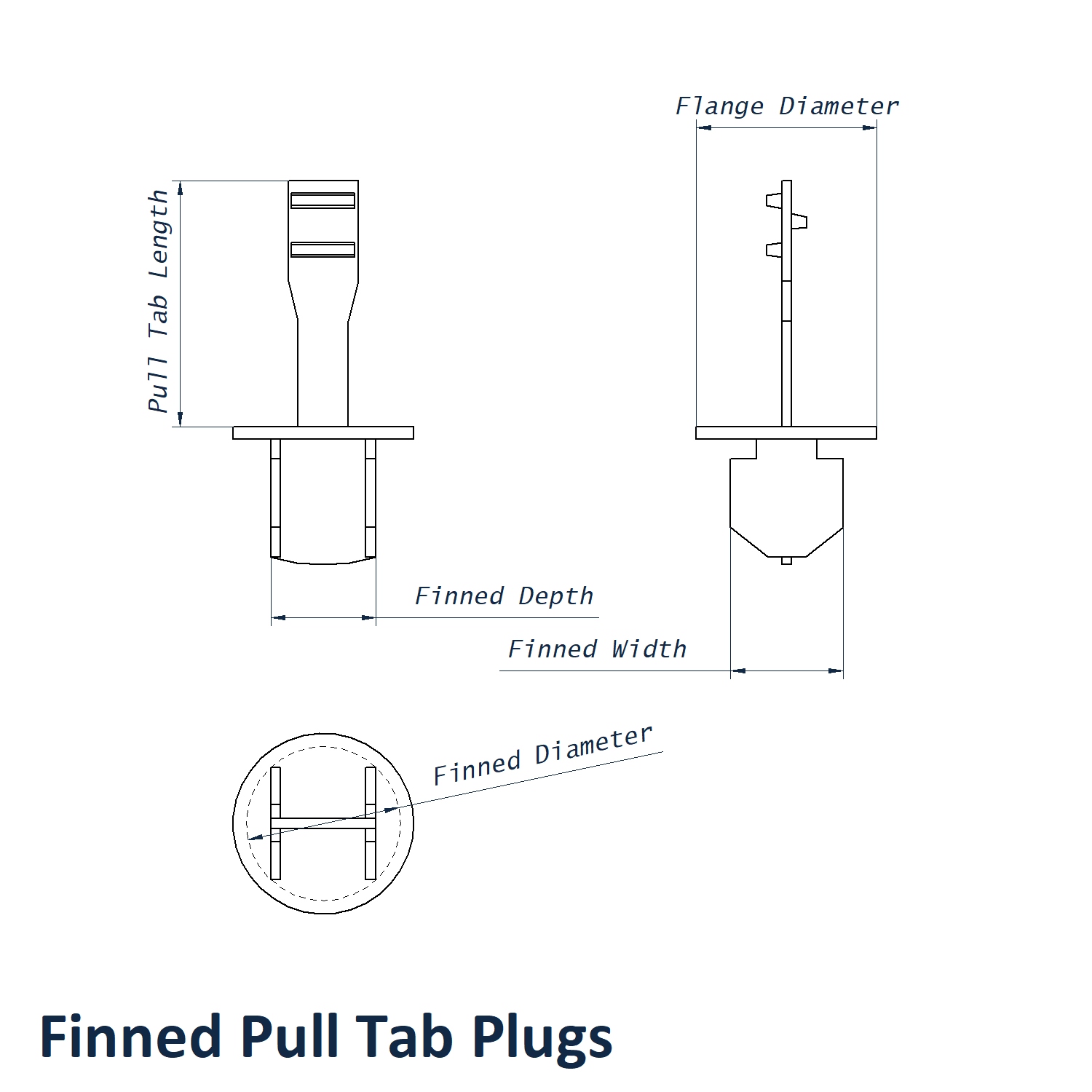

10.2 -12.8mm Red Recycled LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 9.4mm
- Finned Width: 9.6mm
- Pull Tab Length: 25mm
- Flange Diameter: 16mm
- Finned Diameter: 13.1mm
- For Hole ID: 10.2 -12.8mm
- Colour: Red
- Material: Recycled LDPE
Key Benefits
- Finned body is matched to 10.2 -12.8mm bores
- Red Recycled LDPE provides both visibility and material reuse
- Flange prevents the plug being inserted beyond its intended position
- Tool-free removal can shorten preparation time at final assembly
The complete material and size selection is available in the Finned Pull Tab Plugs range. For help comparing this size with the adjacent options, speak with Vital Parts on 01233 713 581.
