12.2 -16.8mm Finned Pull Tab Plug (17.3mm Fin Diameter) | Bio LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.28 | £0.33 |
| 100 - 499 | £0.21 | £0.25 |
| 500 - 999 | £0.17 | £0.20 |
| 1000 - 4999 | £0.13 | £0.16 |
| 5000 + | £0.08 | £0.10 |
Product Specification
| For Hole ID | 12.2 -16.8mm |
| Finned Diameter | 17.3mm |
| Finned Depth | 12.0mm |
| Finned Width | 13.0mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 20mm |
| Material | Bio LDPE |
| Colour | Green |
Frequently Bought Together
Total Price: £0.00

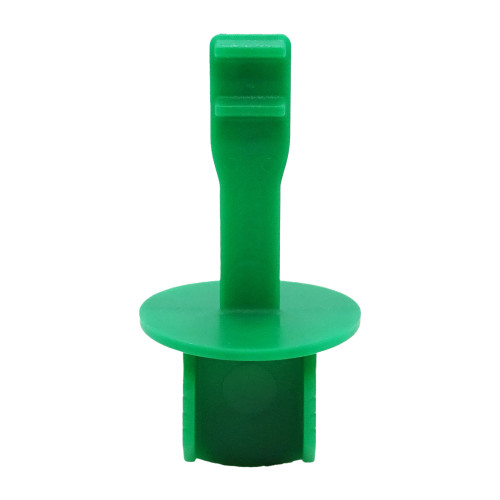

12.2-16.8mm Green Bio LDPE Finned Pull Tab Plug
Providing adaptable protection for 12.2-16.8mm holes, this green Bio LDPE finned connector plug is suited to varied engineering and fluid-control components. The 17.3mm finned section grips within the bore while the 20mm flange covers the opening face. Its long tab supports quick removal before testing or final assembly.
What Are Finned Pull Tab Plugs?
This style of plug uses a sequence of flexible fins rather than a solid parallel shank. As the body enters the hole, the fins compress to suit the internal diameter and maintain several contact points. The design is intended for temporary closure, contamination control and surface protection where convenient access is still required.
Common Applications
- Machinery Manufacture: Protects connection points on pumps, drives and ancillary equipment during build.
- Fluid Control Systems: Covers valve-body and pipework openings before commissioning.
- Automotive Component Logistics: Keeps machined ports protected between suppliers and assembly plants.
- Maintenance Stores: Provides reusable temporary closures for spare components held in stock.

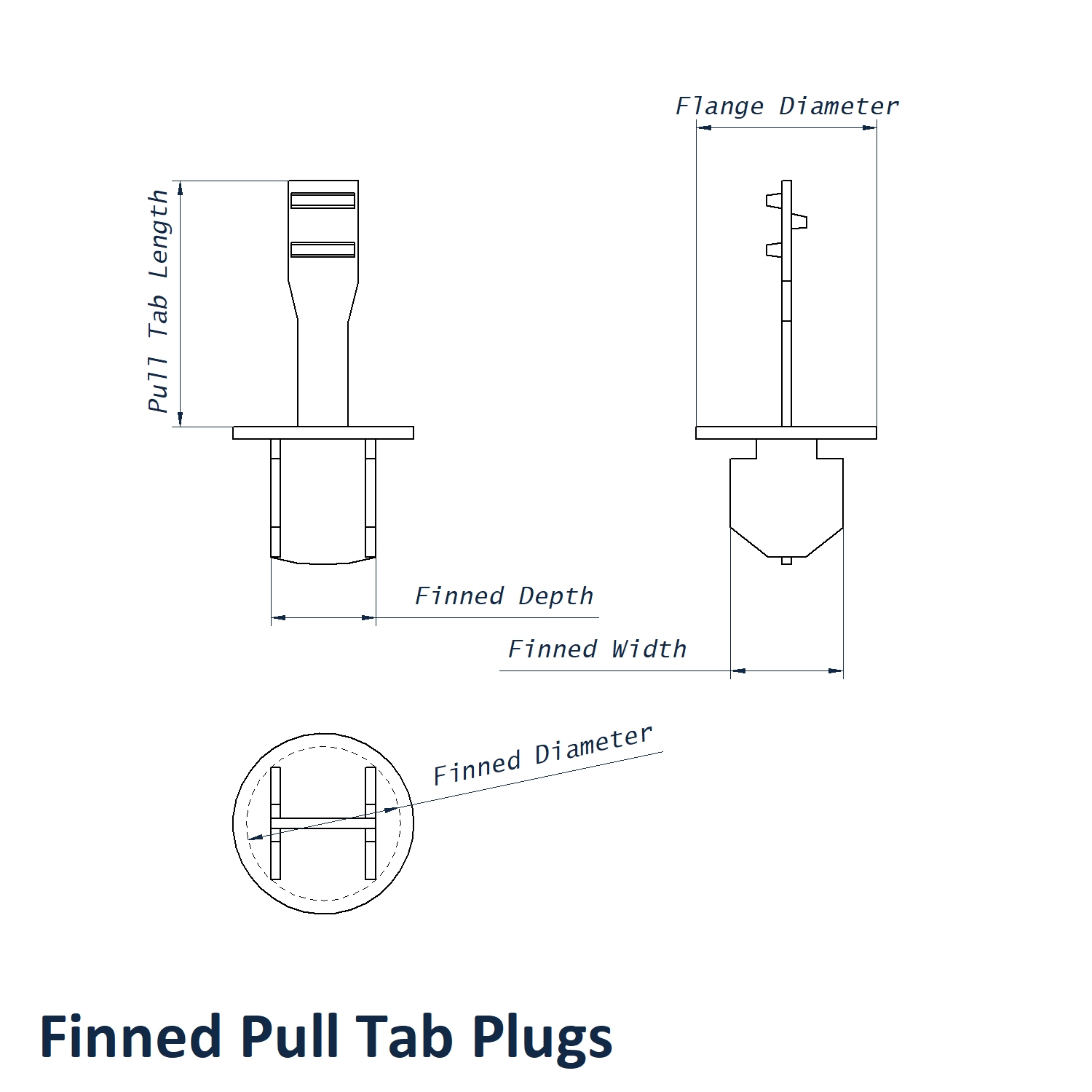

12.2 -16.8mm Green Bio LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 12.0mm
- Finned Width: 13.0mm
- Pull Tab Length: 25mm
- Flange Diameter: 20mm
- Finned Diameter: 17.3mm
- For Hole ID: 12.2 -16.8mm
- Colour: Green
- Material: Bio LDPE
Key Benefits
- Versatile mid-range size fits 12.2 -16.8mm internal holes
- 20mm flange gives additional protection around the bore entrance
- Chemically resistant Bio LDPE suits contact with many common workshop fluids
- Reusable pull-tab design supports efficient removal and refitting
Browse matching sizes and alternative material options within the Finned Pull Tab Plugs range. Our team can help confirm compatibility from your hole measurement or sample on 01233 713 581.
