12.2 -16.8mm Finned Pull Tab Plug (17.3mm Fin Diameter) | Recycled LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.26 | £0.31 |
| 100 - 499 | £0.19 | £0.23 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.07 | £0.09 |
Product Specification
| For Hole ID | 12.2 -16.8mm |
| Finned Diameter | 17.3mm |
| Finned Depth | 12.0mm |
| Finned Width | 13.0mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 20mm |
| Material | Recycled LDPE |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00

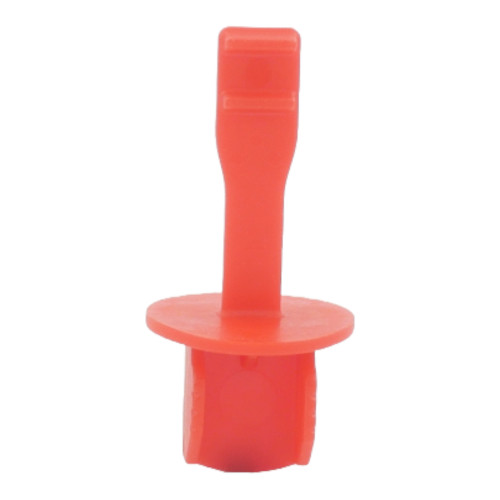

12.2-16.8mm Red Recycled LDPE Finned Pull Tab Plug
Designed as a mid-range recycled plastic port protector, this red finned pull tab plug fits internal holes from 12.2mm to 16.8mm. Its 17.3mm finned diameter provides flexible contact inside the bore and the 20mm flange protects the visible face. The extended tab enables fast removal before hoses, fittings or covers are installed.
What Are Finned Pull Tab Plugs?
This component creates a temporary closure through compression of its tapered fins. Each rib can flex as it meets the hole wall, helping one plug serve several related diameters within the published range. The flange controls fitting depth and the red pull tab gives operators a clear point to grip.
Common Applications
- Industrial Pump Assembly: Protects service ports and connection openings during build and dispatch.
- Automotive Supply Chains: Keeps component bores covered while parts move between manufacturing sites.
- Production Machinery: Temporarily closes prepared openings before pipework or guarding is fitted.
- Maintenance and Repair: Stops loose dirt entering disconnected ports during planned servicing.

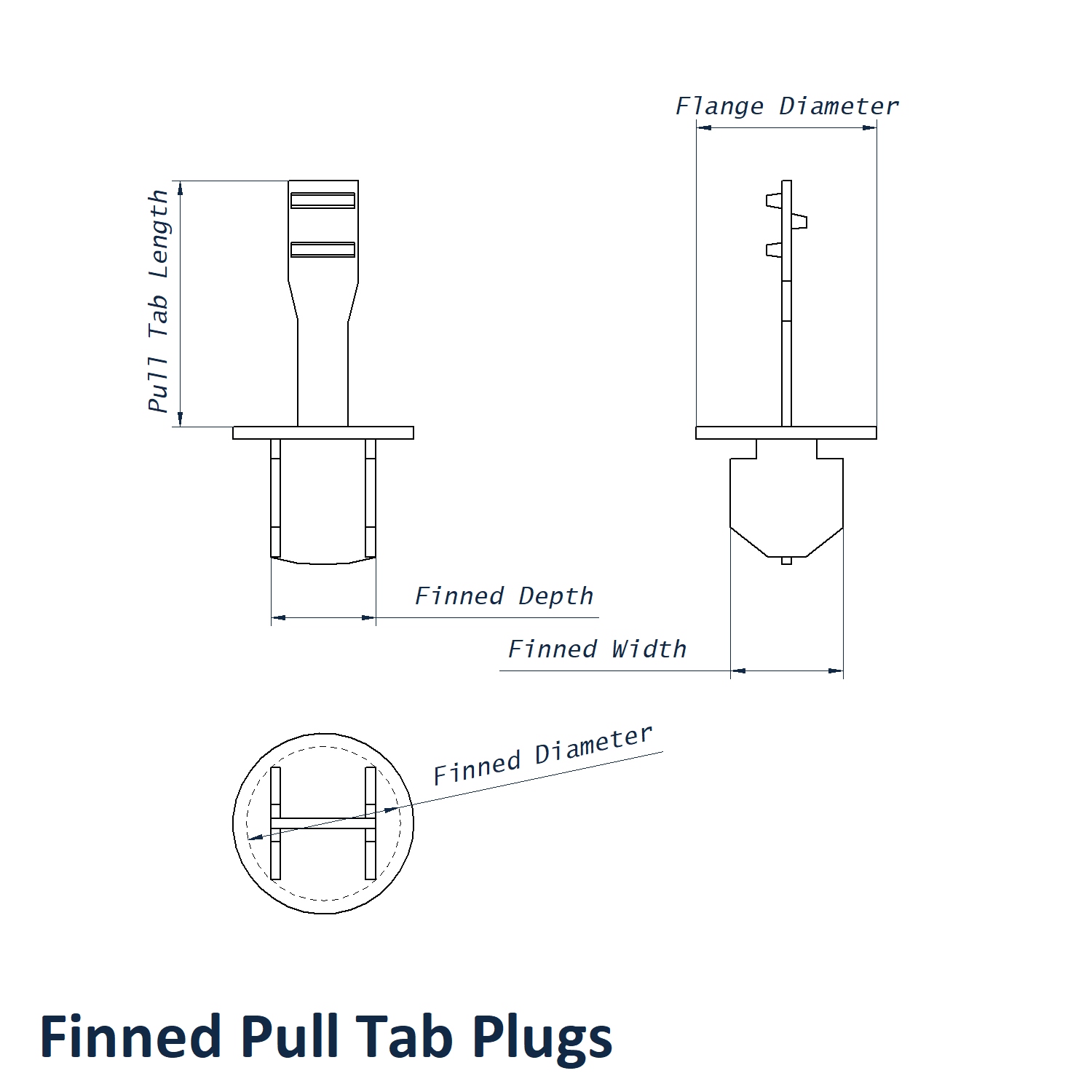

12.2 -16.8mm Red Recycled LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 12.0mm
- Finned Width: 13.0mm
- Pull Tab Length: 25mm
- Flange Diameter: 20mm
- Finned Diameter: 17.3mm
- For Hole ID: 12.2 -16.8mm
- Colour: Red
- Material: Recycled LDPE
Key Benefits
- 12.2 -16.8mm fit range suits several common medium bore sizes
- Recycled LDPE remains flexible for repeated installation cycles
- 20mm flange adds external surface protection around the hole
- Red pull tab makes outstanding plugs easier to identify before commissioning
Compare this versatile size with the rest of the Vital Parts Finned Pull Tab Plug range. For advice on application suitability or volume supply, telephone 01233 713 581.
