15.6 -18.6mm Finned Pull Tab Plug (19.3mm Fin Diameter) | Bio LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.31 | £0.37 |
| 100 - 499 | £0.23 | £0.27 |
| 500 - 999 | £0.18 | £0.22 |
| 1000 - 4999 | £0.15 | £0.18 |
| 5000 + | £0.09 | £0.11 |
Product Specification
| For Hole ID | 15.6 -18.6mm |
| Finned Diameter | 19.3mm |
| Finned Depth | 13.3mm |
| Finned Width | 14.5mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 22mm |
| Material | Bio LDPE |
| Colour | Green |
Frequently Bought Together
Total Price: £0.00

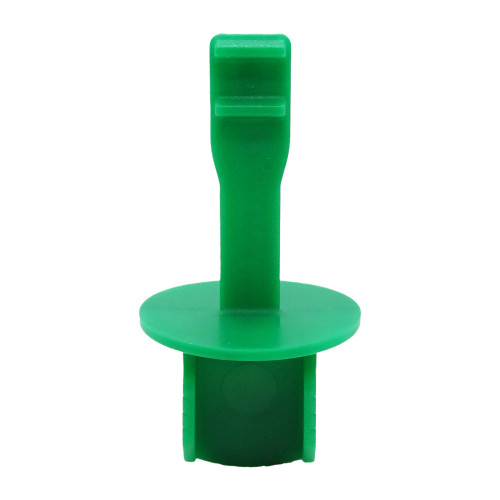

15.6-18.6mm Green Bio LDPE Finned Pull Tab Plug
Commonly used on larger hydraulic and mechanical openings, this 15.6-18.6mm green finned port plug offers secure temporary coverage with an easy-removal tab. The Bio LDPE body remains flexible during insertion and its 22mm flange protects the face around the opening from light knocks, debris and process contamination.
What Are Finned Pull Tab Plugs?
Finned port plugs rely on a tapered sequence of ribs to create an interference fit inside a bore. This 19.3mm finned diameter version is designed for the stated hole range and does not require threads or tools to install. The flange establishes the final fitting position while the 25mm tab provides a clear removal point.
Common Applications
- Construction Machinery: Protects hydraulic connections on replacement parts before field installation.
- Agricultural Hydraulics: Covers ports on rams, valves and pump components during storage and transport.
- Commercial Equipment Assembly: Keeps larger internal openings free from workshop debris before connection.
- General Engineering: Provides temporary bore protection during inspection, painting preparation and packing.

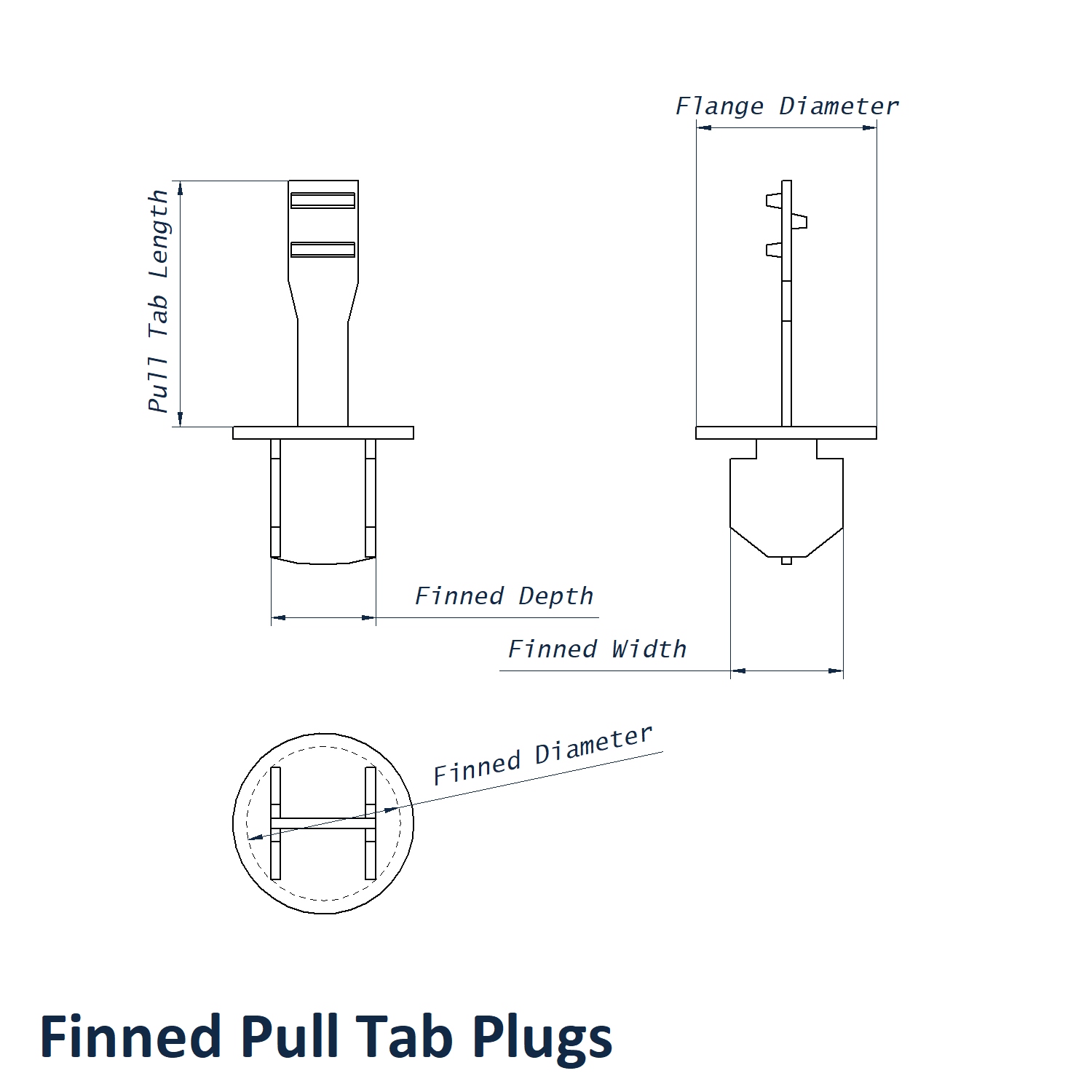

15.6 -18.6mm Green Bio LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 13.3mm
- Finned Width: 14.5mm
- Pull Tab Length: 25mm
- Flange Diameter: 22mm
- Finned Diameter: 19.3mm
- For Hole ID: 15.6 -18.6mm
- Colour: Green
- Material: Bio LDPE
Key Benefits
- Designed around 15.6 -18.6mm hole IDs
- Flexible green material makes the fitted plug easy to identify
- Finned construction retains the plug without a separate fastener
- 22mm flange provides a defined stop and external surface coverage
See adjacent sizes on the Finned Pull Tab Plugs category page when the measured opening falls outside this range. Technical sales support is available on 01233 713 581.
