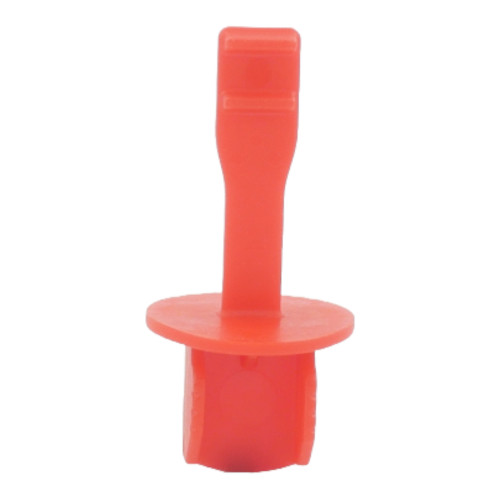

15.6 -18.6mm Finned Pull Tab Plug (19.3mm Fin Diameter) | Recycled LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.25 | £0.30 |
| 100 - 499 | £0.18 | £0.22 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.07 | £0.09 |
Product Specification
| For Hole ID | 15.6 -18.6mm |
| Finned Diameter | 19.3mm |
| Finned Depth | 13.3mm |
| Finned Width | 14.5mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 22mm |
| Material | Recycled LDPE |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00
15.6-18.6mm Red Recycled LDPE Finned Pull Tab Plug
Manufactured for larger openings measuring 15.6-18.6mm, this red recycled LDPE hydraulic port plug supports clean handling of valves, pumps and machined components. The finned body provides the internal grip and a 22mm flange forms a protective external stop. Removal is completed through the integral 25mm tab.
What Are Finned Pull Tab Plugs?
The plug's tapered ribs flex during insertion so they can contact the wall across the full specified hole range. No screw thread or separate retaining part is required, making it practical for temporary protection on production lines and in service environments. The red finish also provides a useful visual warning that the connection remains closed.
Common Applications
- Mobile Plant Hydraulics: Covers replacement component ports before installation on site.
- Hose and Fitting Manufacture: Protects larger connection bores during packing and delivery.
- Agricultural Equipment Servicing: Temporarily closes open fluid points during repair work.
- Engineering Inspection: Keeps verified bores protected after dimensional checks are complete.

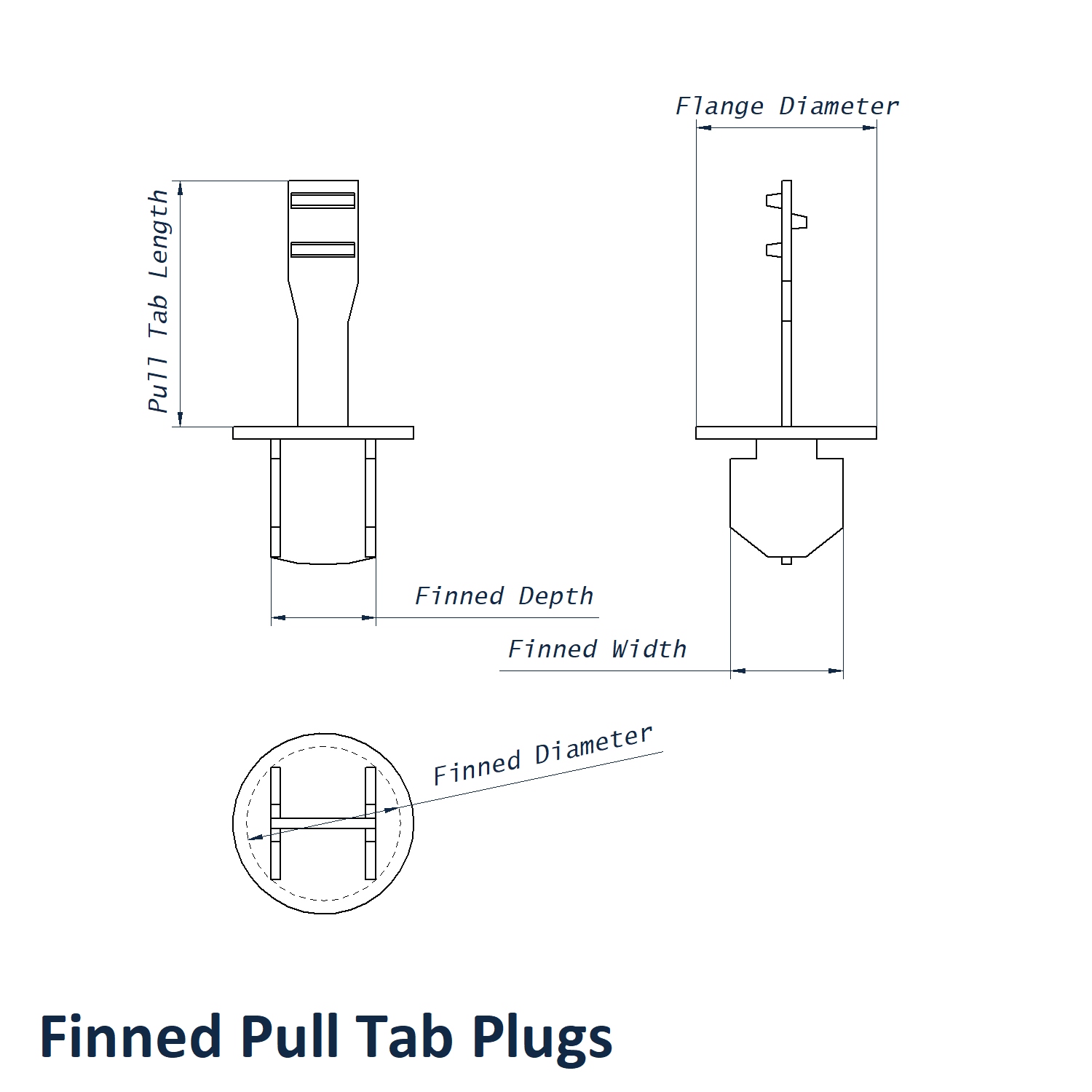

15.6 -18.6mm Red Recycled LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 13.3mm
- Finned Width: 14.5mm
- Pull Tab Length: 25mm
- Flange Diameter: 22mm
- Finned Diameter: 19.3mm
- For Hole ID: 15.6 -18.6mm
- Colour: Red
- Material: Recycled LDPE
Key Benefits
- Sized for 15.6 -18.6mm internal openings
- 22mm flange prevents over-insertion and covers the machined edge
- Chemically resistant Recycled LDPE suits general fluid-system environments
- Visible pull tab allows quick hand removal at the point of use
Other bore sizes and the green Bio LDPE alternative are listed on the Finned Pull Tab Plugs page. Call 01233 713 581 for support matching the plug to your component.
