17 -20.7mm Finned Pull Tab Plug (21.3mm Fin Diameter) | Recycled LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.27 | £0.32 |
| 100 - 499 | £0.20 | £0.24 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.07 | £0.09 |
Product Specification
| For Hole ID | 17.0 -20.7mm |
| Finned Diameter | 21.3mm |
| Finned Depth | 14.5mm |
| Finned Width | 16.1mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 24mm |
| Material | Recycled LDPE |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00

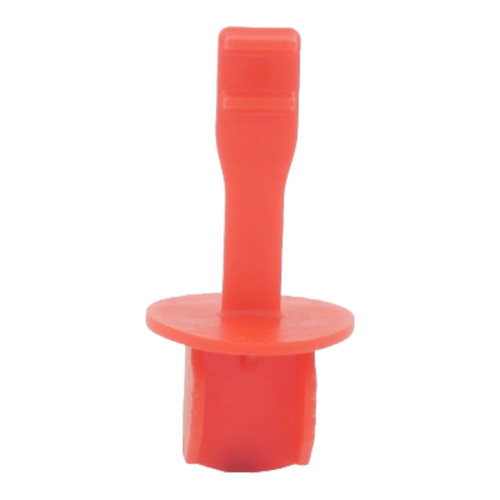

17.0-20.7mm Red Recycled LDPE Finned Pull Tab Plug
Ideal for larger 17.0-20.7mm bores, this red pull tab protection plug is produced from Recycled LDPE for flexible temporary closure. Its 21.3mm finned diameter grips within the opening while the 24mm flange covers the external edge. The red tab remains highly visible during assembly checks and maintenance procedures.
What Are Finned Pull Tab Plugs?
A tapered multi-fin profile allows the plug to adjust across the defined internal diameter range. As the component is pressed into place, the fins compress rather than cutting or threading into the bore. This provides a practical removable barrier against contamination and light contact damage during normal industrial handling.
Common Applications
- Large Pneumatic Valves: Protects connection ports before system pipework is commissioned.
- Construction Equipment Parts: Keeps hydraulic openings covered during transport to dealers or sites.
- Industrial Overhaul Projects: Marks and closes exposed bores while machinery is dismantled.
- OEM Warehouse Operations: Maintains component cleanliness between receipt, storage and line-side delivery.

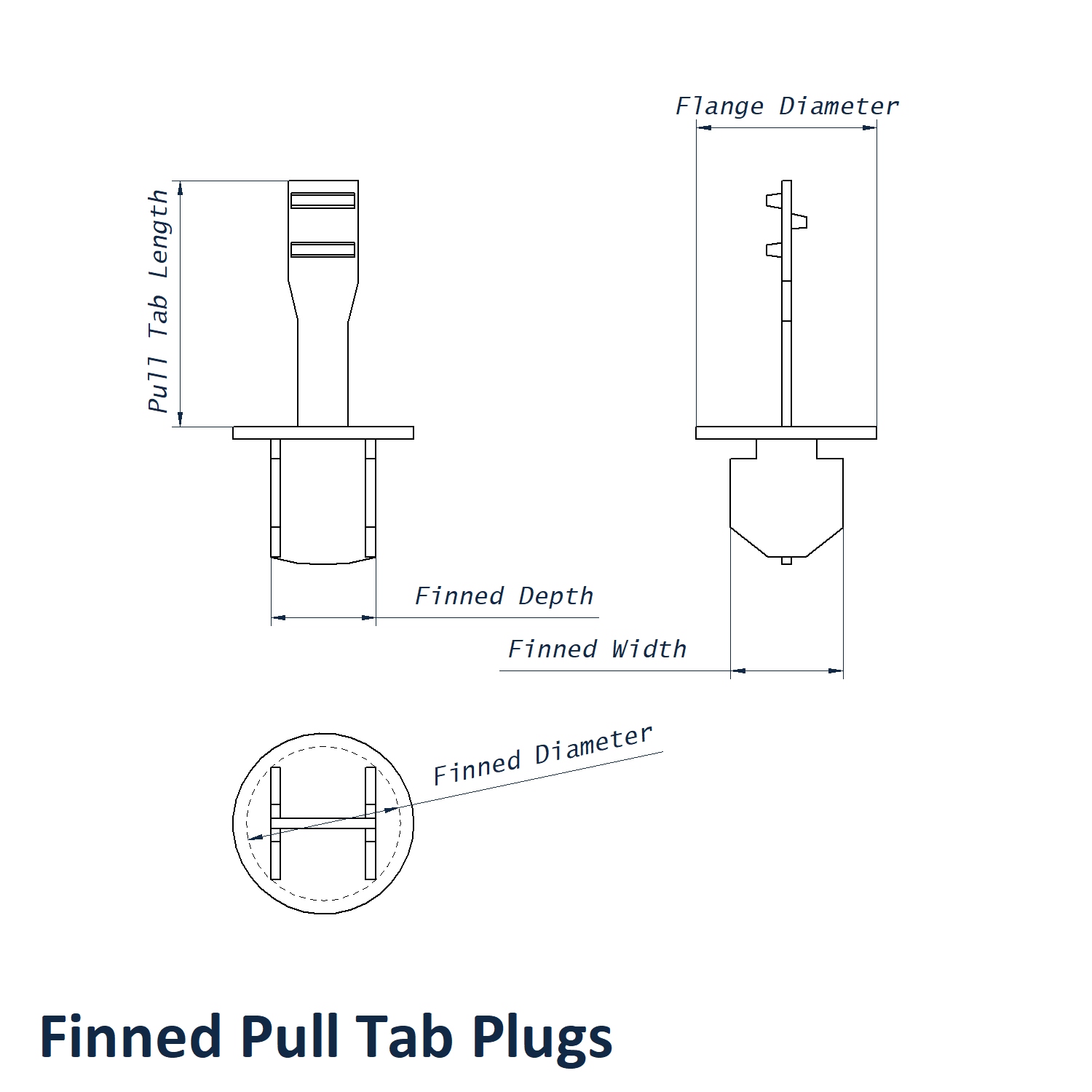

17.0 -20.7mm Red Recycled LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 14.5mm
- Finned Width: 16.1mm
- Pull Tab Length: 25mm
- Flange Diameter: 24mm
- Finned Diameter: 21.3mm
- For Hole ID: 17.0 -20.7mm
- Colour: Red
- Material: Recycled LDPE
Key Benefits
- Flexible design accommodates 17.0 -20.7mm hole IDs
- Red colour supports strong visual control in busy assembly areas
- 24mm flange protects a larger area around the bore
- Recycled material option supports more responsible component sourcing
Use the Finned Pull Tab Plugs category to review smaller and larger alternatives. For sample requests, dimensional checks or ongoing supply requirements, contact the team on 01233 713 581.
