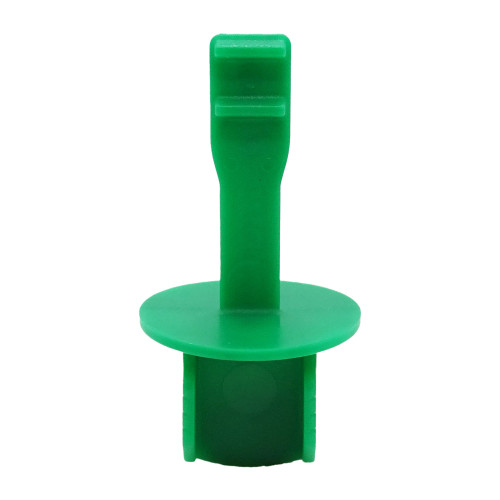

17 -20.7mm Finned Pull Tab Plug (21.3mm Fin Diameter) | Bio LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.29 | £0.35 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.17 | £0.21 |
| 1000 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.08 | £0.10 |

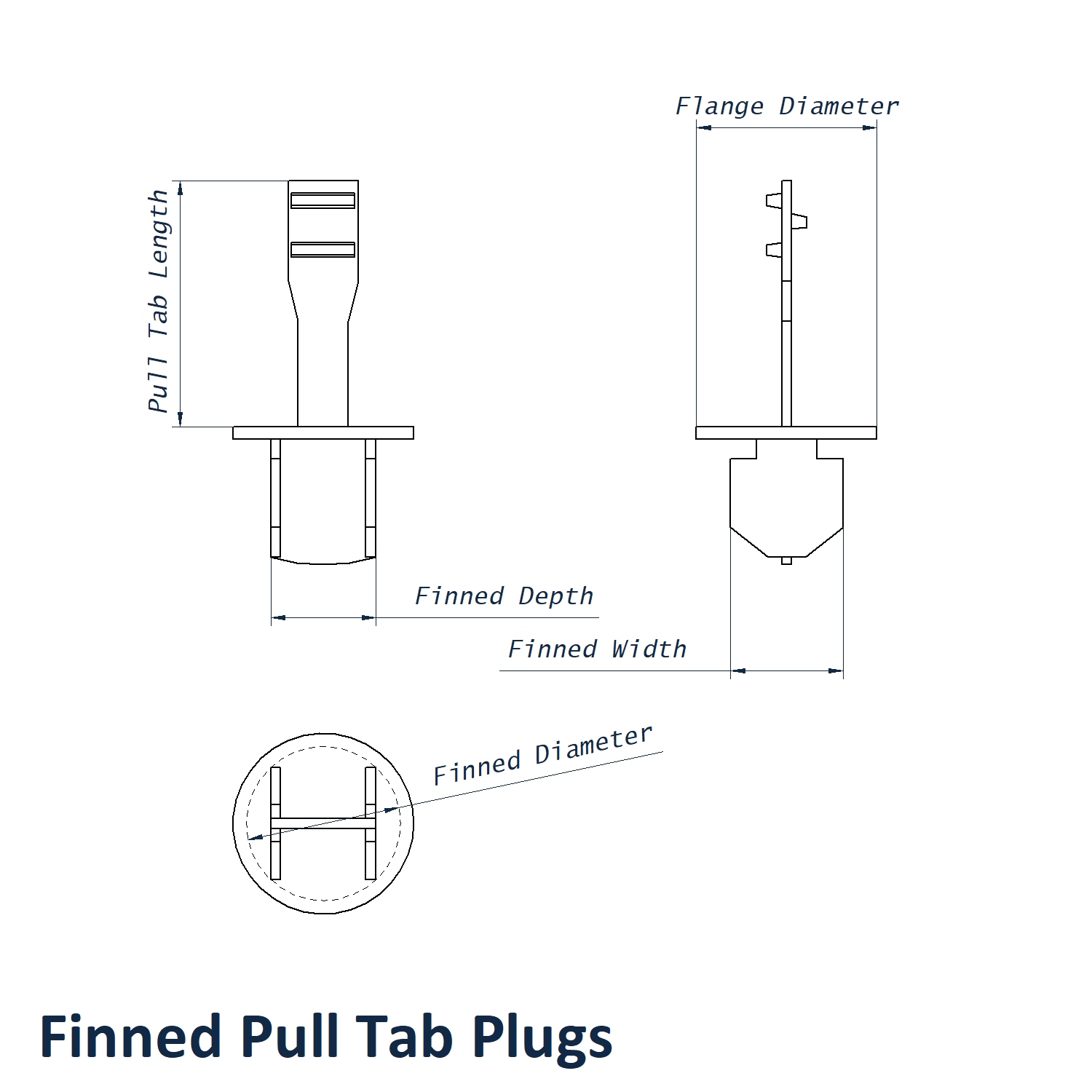

Product Specification
| For Hole ID | 17.0 -20.7mm |
| Finned Diameter | 21.3mm |
| Finned Depth | 14.5mm |
| Finned Width | 16.1mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 24mm |
| Material | Bio LDPE |
| Colour | Green |
Frequently Bought Together
Total Price: £0.00
17.0-20.7mm Green Bio LDPE Finned Pull Tab Plug
Developed for larger internal bores from 17.0mm to 20.7mm, this green Bio LDPE pull tab plug protects open ports while keeping them readily accessible. A 21.3mm finned diameter supplies flexible retention and the 24mm flange covers the component face. The extended tab is useful where removal must be quick and visible.
What Are Finned Pull Tab Plugs?
The tapered fin arrangement allows one plug to accommodate a range of hole sizes by flexing at different points along the body. This can simplify temporary protection stock for manufacturers working with related bore dimensions. The plug is pushed in by hand and later withdrawn using the integral tab, leaving no threaded part to undo.
Common Applications
- Large Valve Bodies: Covers service and connection openings during warehouse storage.
- Mobile Hydraulic Equipment: Protects exposed ports on components intended for construction or agricultural machines.
- OEM Component Supply: Maintains cleanliness while parts pass through packing, transport and goods-in inspection.
- Industrial Refurbishment: Temporarily closes disconnected openings during strip-down and rebuild work.
17.0 -20.7mm Green Bio LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 14.5mm
- Finned Width: 16.1mm
- Pull Tab Length: 25mm
- Flange Diameter: 24mm
- Finned Diameter: 21.3mm
- For Hole ID: 17.0 -20.7mm
- Colour: Green
- Material: Bio LDPE
Key Benefits
- Accommodates 17.0 -20.7mm bores within one tapered design
- 24mm flange helps protect the machined face surrounding the hole
- Bio LDPE option supports material-reduction objectives without losing flexibility
- Pull tab gives a deliberate removal point on larger components
Alternative bore ranges can be selected from the full Finned Pull Tab Plugs selection. For product matching or a discussion about recurring production demand, telephone 01233 713 581.
