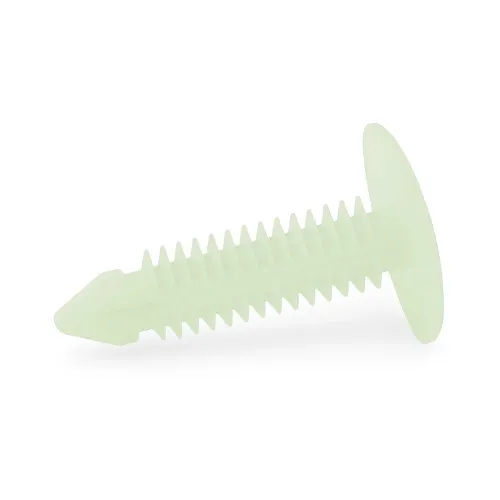

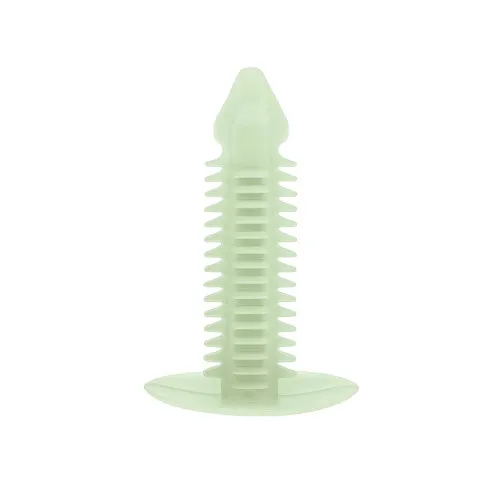

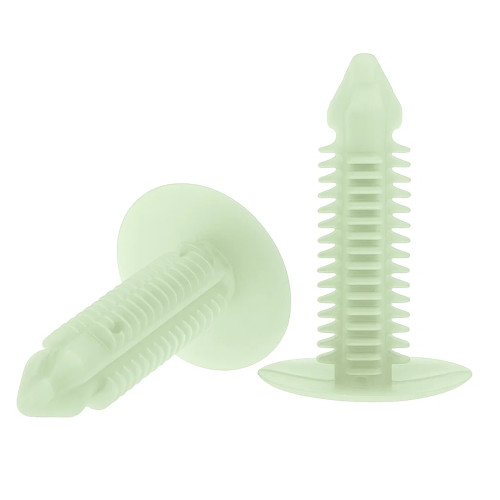

5.5mm x 19.7mm Fir Tree Clip (1.5mm-14.2mm Panel Thickness) Light Green | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.48 | £0.58 |
| 100 - 499 | £0.42 | £0.50 |
| 500 - 999 | £0.35 | £0.42 |
| 1000 - 4999 | £0.29 | £0.35 |
| 5000 + | £0.25 | £0.30 |
Product Specification
| Hole Diameter | 5.50mm |
| Min Panel Thickness | 1.5mm |
| Max Panel Thickness | 14.2mm |
| Length | 19.70mm |
| Head Diameter | 16.5mm |
| Head Height | 2.6mm |
| Material | Nylon |
| Colour | Light Green |
Frequently Bought Together
Total Price: £0.00
5.5mm x 19.7mm Fir Tree Plug (1.5mm-14.2mm Panel Thickness) | Light Green Nylon
Designed for automotive trim work, this fir tree plug is manufactured from light green Nylon with a 5.5mm hole diameter and 19.7mm length, with a 16.5mm head diameter and is suited to 1.5mm-14.2mm panel thickness. It is made for push-fit panel fastening where a barbed stem needs to grip securely inside a prepared hole.
The light green finish makes the plug suitable for matching or contrasting visible panel areas, while barbed ribs help resist pull-out once the plug has been pressed into the hole. Correctly matching the hole diameter and panel thickness helps maintain a stable fit during handling, vibration and service use.
Common Applications
- Securing trim panels where rear access is limited
- Joining plastic, metal or composite panels in light assemblies
- Holding fabricated sheet panels during production builds
- Securing workshop-made guards, brackets and protective covers

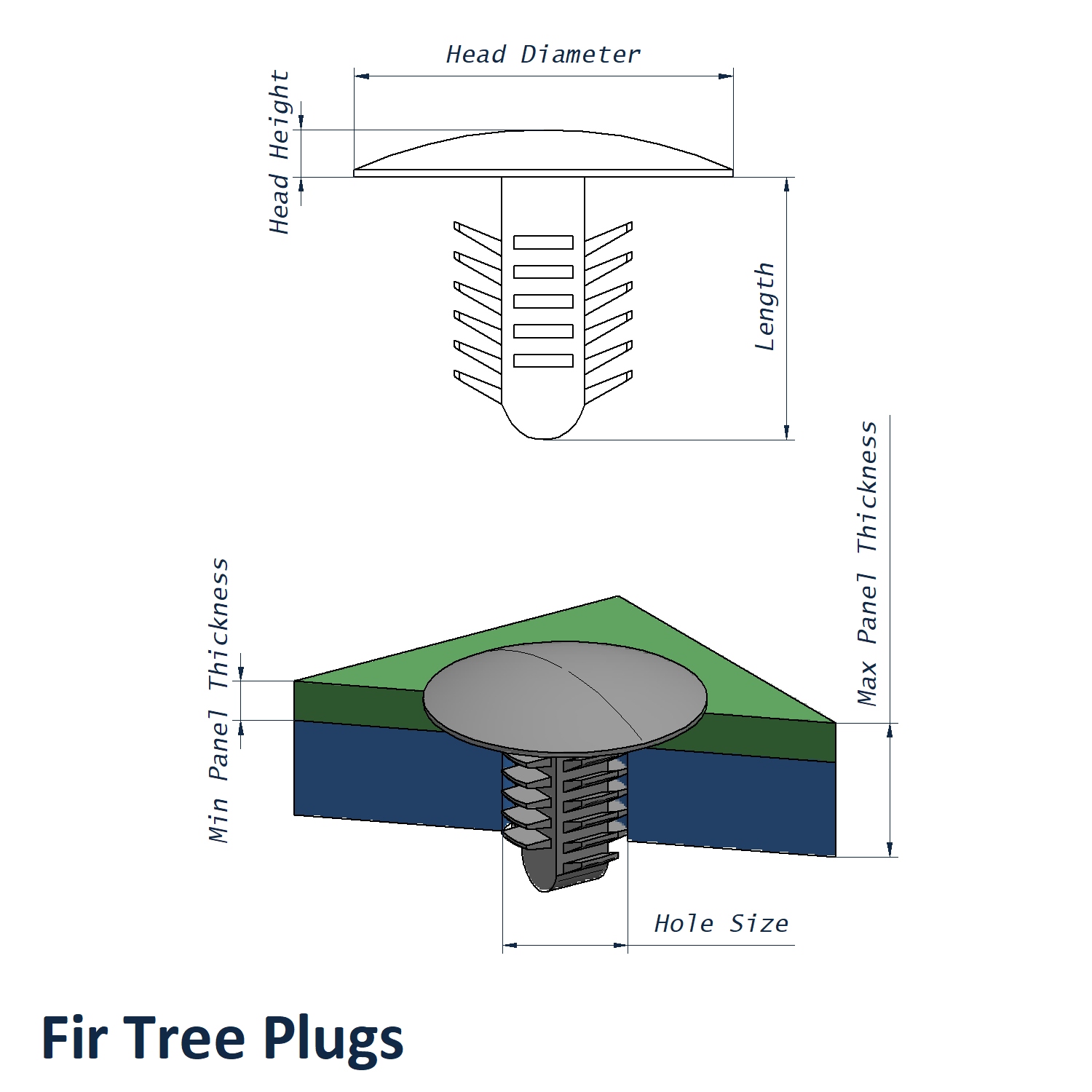

5.5mm x 19.7mm Light Green Fir Tree Plug Dimensions
- Hole Diameter: 5.50mm
- Min Panel Thickness: 1.5mm
- Max Panel Thickness: 14.2mm
- Length: 19.70mm
- Head Diameter: 16.5mm
- Head Height: 2.6mm
- Colour: Light Green
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
For help checking hole diameter, panel thickness or suitability for your fastening application, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for bulk or repeat trade requirements.
