5mm x 12.7mm Fir Tree Clip (1.7mm-8mm Panel Thickness) Black | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.48 | £0.58 |
| 100 - 499 | £0.42 | £0.50 |
| 500 - 999 | £0.35 | £0.42 |
| 1000 - 4999 | £0.29 | £0.35 |
| 5000 + | £0.25 | £0.30 |
Product Specification
| Hole Diameter | 5.00mm |
| Min Panel Thickness | 1.7mm |
| Max Panel Thickness | 8.0mm |
| Length | 12.70mm |
| Head Diameter | 10.75mm |
| Head Height | 1.0mm |
| Material | Nylon |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
5mm x 12.7mm Fir Tree Plug (1.7mm-8mm Panel Thickness) | Black Nylon
A secure option for commercial equipment manufacture, this black fir tree plug combines a domed head with a barbed Nylon stem with a 5mm hole diameter and 12.7mm length, with a 10.75mm head diameter. It helps retain panels, covers and trim sections while giving the visible side a tidy finish.
The black finish makes the plug suitable for matching or contrasting visible panel areas, while the plug can help reduce loose panel movement when correctly matched to the hole and panel thickness. Correctly matching the hole diameter and panel thickness helps maintain a stable fit during handling, vibration and service use.
Common Applications
- Quick push-fit fastening for production line assembly
- Closing holes in panels after temporary fixture removal
- Blanking unused panel holes with a low profile domed head
- Securing signage panels, display boards and retail fixtures

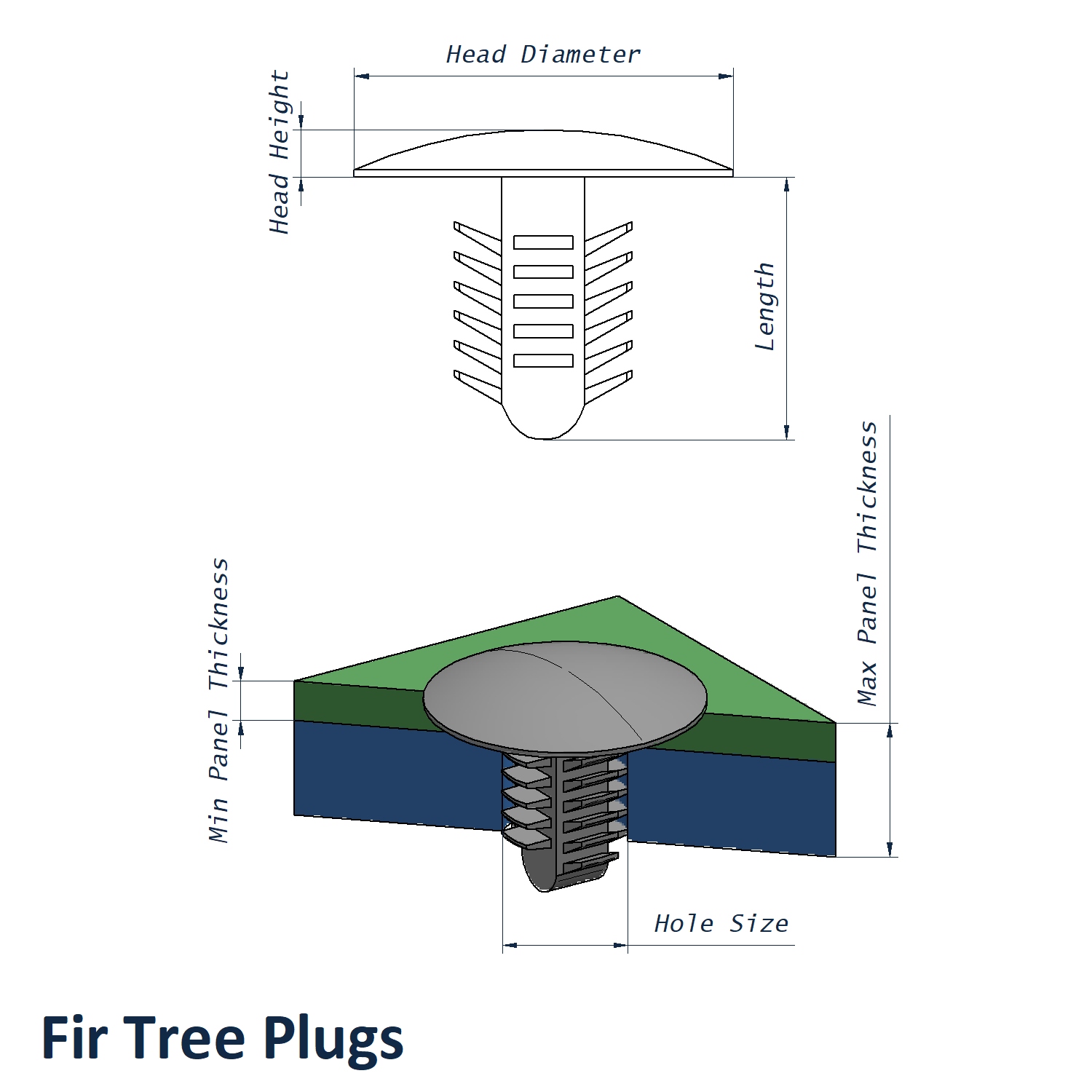

5mm x 12.7mm Black Fir Tree Plug Dimensions
- Hole Diameter: 5.00mm
- Min Panel Thickness: 1.7mm
- Max Panel Thickness: 8.0mm
- Length: 12.70mm
- Head Diameter: 10.75mm
- Head Height: 1.0mm
- Colour: Black
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
When hole size, head diameter or panel grip range needs checking, our team can help. Speak with Vital Parts on 01233 713581 for product advice, sample availability and repeat order support.
