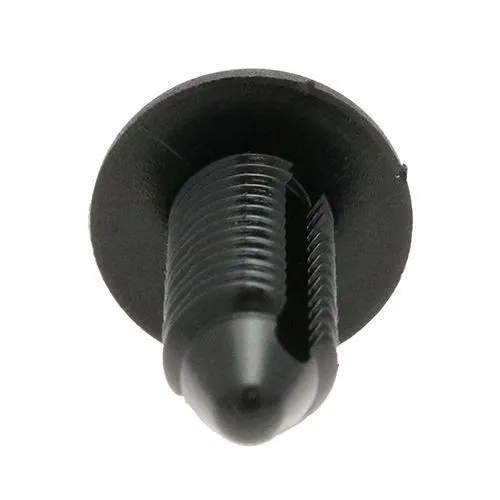

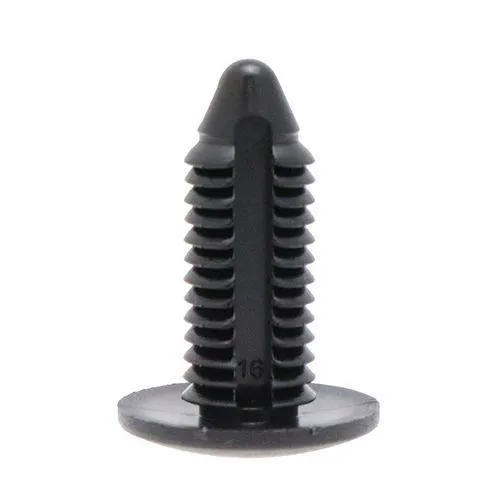

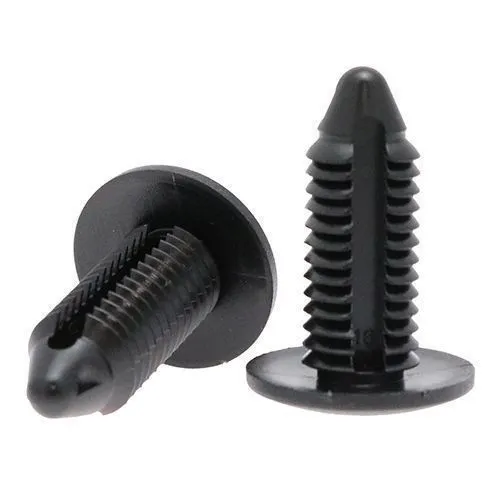

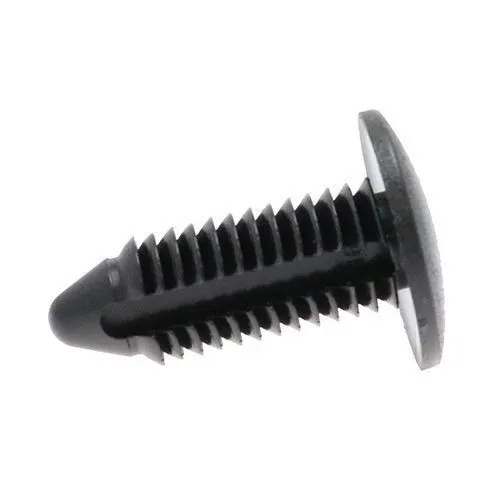

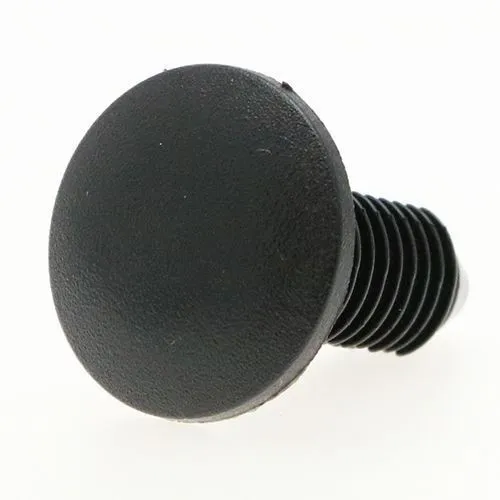

5mm x 28.35mm Fir Tree Clip (1.6mm-26mm Panel Thickness) Black | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.43 | £0.52 |
| 100 - 499 | £0.42 | £0.51 |
| 500 - 999 | £0.42 | £0.50 |
| 1000 - 4999 | £0.41 | £0.49 |
| 5000 + | £0.40 | £0.48 |
Product Specification
| Hole Diameter | 5.00mm |
| Min Panel Thickness | 1.6mm |
| Max Panel Thickness | 26.0mm |
| Length | 28.35mm |
| Head Diameter | 14.0mm |
| Head Height | 2.0mm |
| Material | Nylon |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
5mm x 28.35mm Fir Tree Plug (1.6mm-26mm Panel Thickness) | Black Nylon
This blind hole fastener is a black Nylon push-fit fastening component with a 5mm hole diameter and 28.35mm length, with a 14mm head diameter. It is a useful choice for marine equipment housings where panels need to be retained without a threaded fixing or rear-side access.
The barbed fir tree profile the head helps finish the panel surface while the stem grips behind the material, while the domed head helps cover the drilled hole on the front face. It is best used where a permanent or difficult-to-remove fixing is preferred over a loose push cap.
Common Applications
- Retaining electrical enclosure covers and access panels
- Blind-hole fixing in machinery panels and equipment covers
- Light duty fastening for marine interior panels and covers
- Assembly of appliance panels, service flaps and trim sections

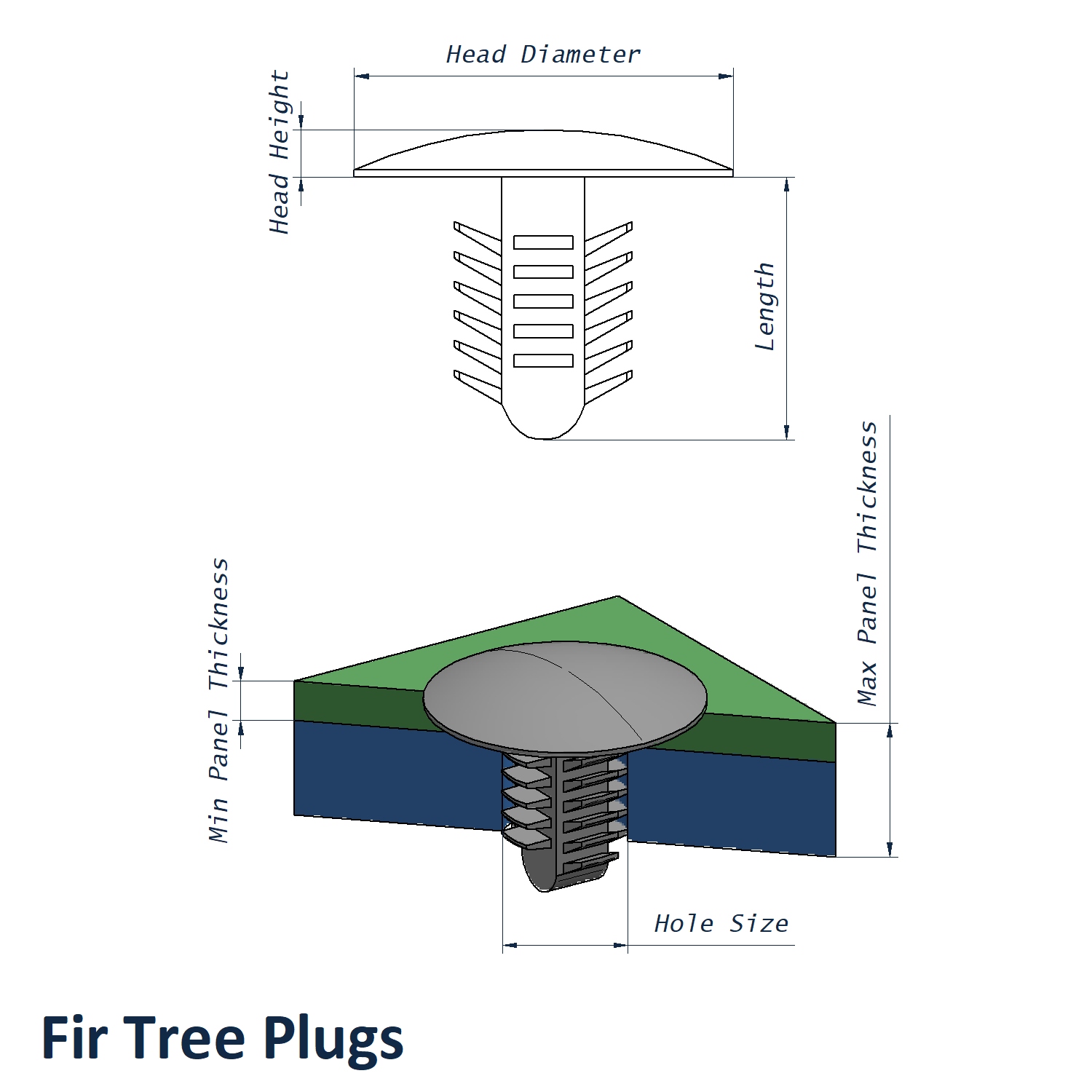

5mm x 28.35mm Black Fir Tree Plug Dimensions
- Hole Diameter: 5.00mm
- Min Panel Thickness: 1.6mm
- Max Panel Thickness: 26.0mm
- Length: 28.35mm
- Head Diameter: 14.0mm
- Head Height: 2.0mm
- Colour: Black
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
If you are matching a fir tree plug to an existing panel hole or replacing a current fastener, contact the Vital Parts team on 01233 713581 for sizing advice, sample support where available and trade order help.
