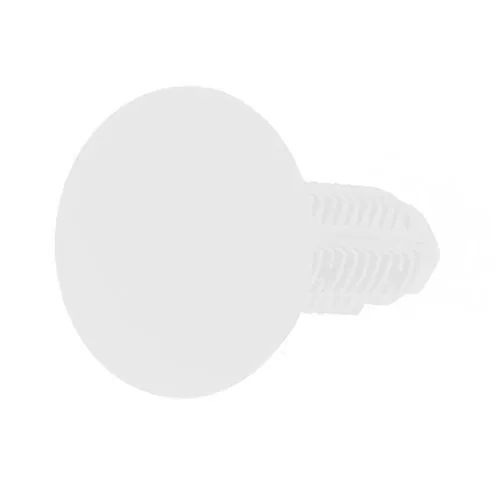

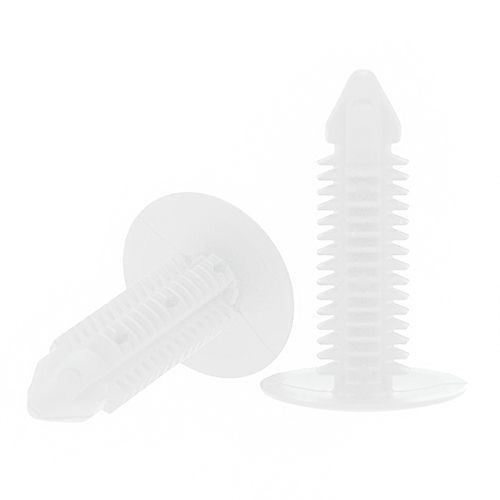

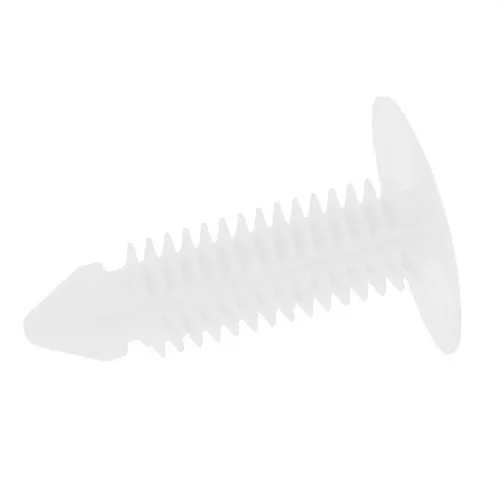

5mm x 12.7mm Fir Tree Clip (1.7mm-8mm Panel Thickness) Natural | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.48 | £0.58 |
| 100 - 499 | £0.42 | £0.50 |
| 500 - 999 | £0.35 | £0.42 |
| 1000 - 4999 | £0.29 | £0.35 |
| 5000 + | £0.25 | £0.30 |
Product Specification
| Hole Diameter | 5.00mm |
| Min Panel Thickness | 1.7mm |
| Max Panel Thickness | 8.0mm |
| Length | 12.70mm |
| Head Diameter | 10.75mm |
| Head Height | 1.0mm |
| Material | Nylon |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00
5mm x 12.7mm Fir Tree Plug (1.7mm-8mm Panel Thickness) | Natural Nylon
Designed for appliance panels, this trim panel fastener is manufactured from natural Nylon with a 5mm hole diameter and 12.7mm length, with a 10.75mm head diameter and is suited to 1.7mm-8mm panel thickness. It is made for push-fit panel fastening where a barbed stem needs to grip securely inside a prepared hole.
The barbed fir tree profile barbed ribs help resist pull-out once the plug has been pressed into the hole, while the domed head helps cover the drilled hole on the front face. It is best used where a permanent or difficult-to-remove fixing is preferred over a loose push cap.
Common Applications
- Natural Nylon panel fixing where a neutral plastic fastener is preferred
- Joining plastic, metal or composite panels in light assemblies
- Holding fabricated sheet panels during production builds
- Securing workshop-made guards, brackets and protective covers

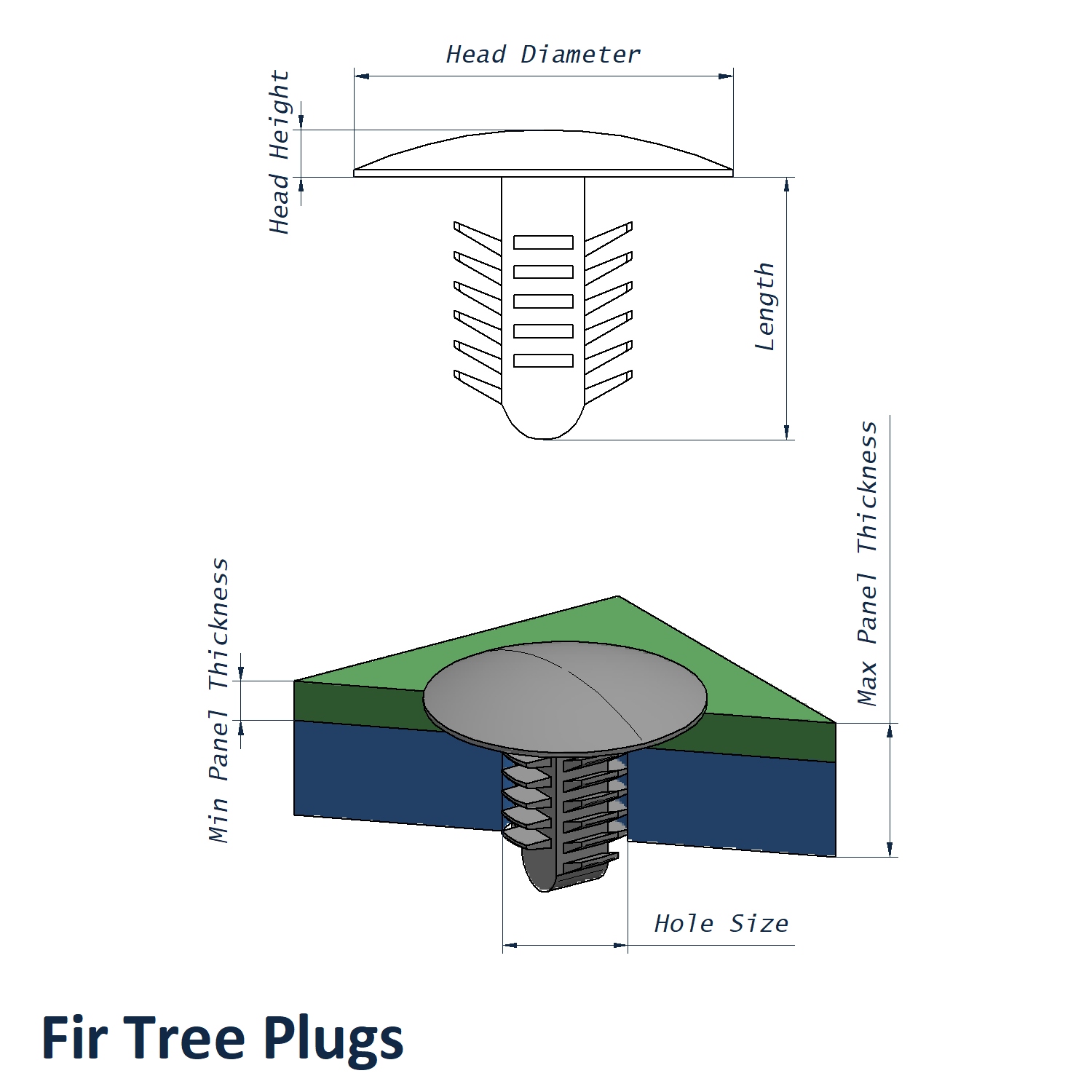

5mm x 12.7mm Natural Fir Tree Plug Dimensions
- Hole Diameter: 5.00mm
- Min Panel Thickness: 1.7mm
- Max Panel Thickness: 8.0mm
- Length: 12.70mm
- Head Diameter: 10.75mm
- Head Height: 1.0mm
- Colour: Natural
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
For help checking hole diameter, panel thickness or suitability for your fastening application, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for bulk or repeat trade requirements.
