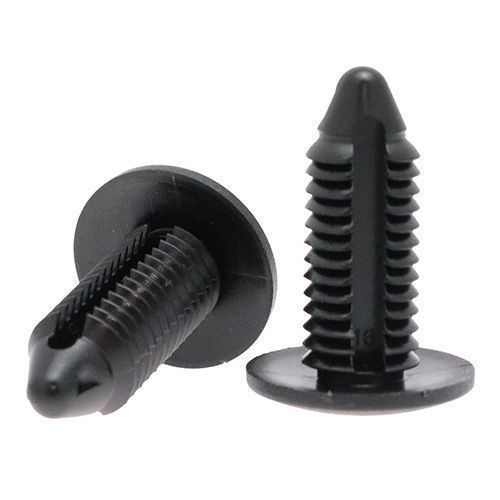

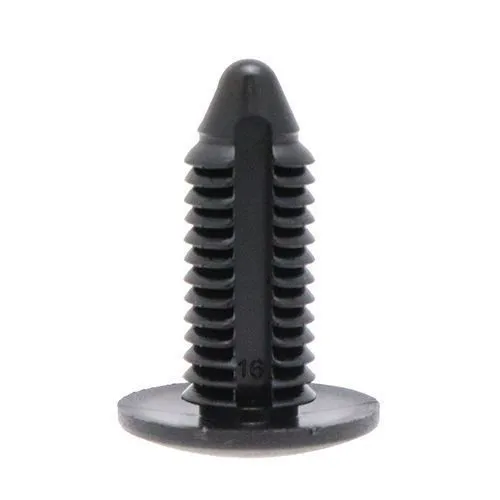

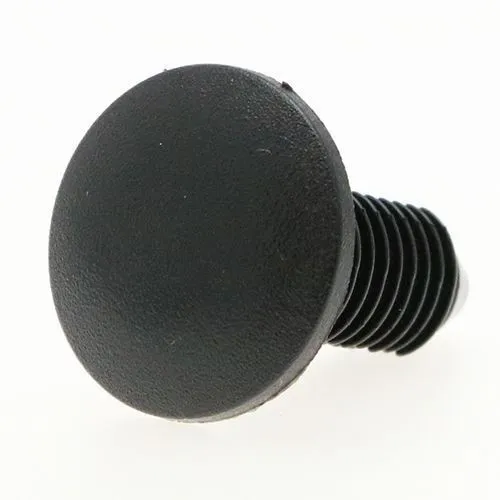

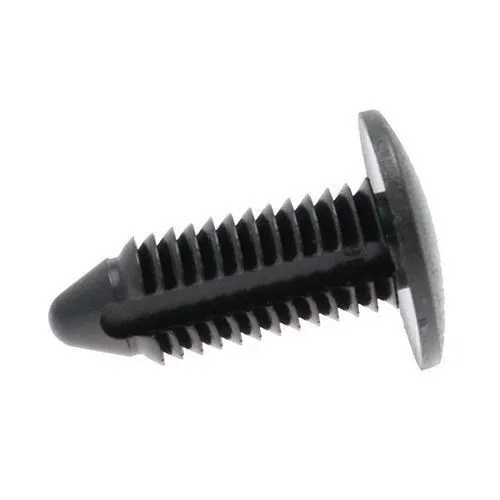

4mm x 12.2mm Fir Tree Clip (1.6mm-10mm Panel Thickness) Black | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.35 | £0.42 |
| 100 - 499 | £0.34 | £0.41 |
| 500 - 999 | £0.33 | £0.40 |
| 1000 - 4999 | £0.33 | £0.39 |
| 5000 + | £0.32 | £0.38 |
Product Specification
| Hole Diameter | 4.00mm |
| Min Panel Thickness | 1.6mm |
| Max Panel Thickness | 10.0mm |
| Length | 12.20mm |
| Head Diameter | 11.2mm |
| Head Height | 2.0mm |
| Material | Nylon |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
4mm x 12.2mm Fir Tree Plug (1.6mm-10mm Panel Thickness) | Black Nylon
Developed for blind-hole fixing and panel retention, this Nylon fir tree plug with a 4mm hole diameter and 12.2mm length, with a 11.2mm head diameter is suitable for sheet metal fabrication. The one-piece push-fit design keeps installation simple on production lines and repair work.
The barbed fir tree profile Nylon construction gives a lightweight fixing with good durability for everyday industrial use, while the domed head helps cover the drilled hole on the front face. It is best used where a permanent or difficult-to-remove fixing is preferred over a loose push cap.
Common Applications
- Retaining plastic housings where metal screws are unsuitable
- Fastening light covers and guards into pre-drilled holes
- Panel fastening for HVAC ductwork covers and housings
- Finishing visible holes on cabinets, casings and enclosures

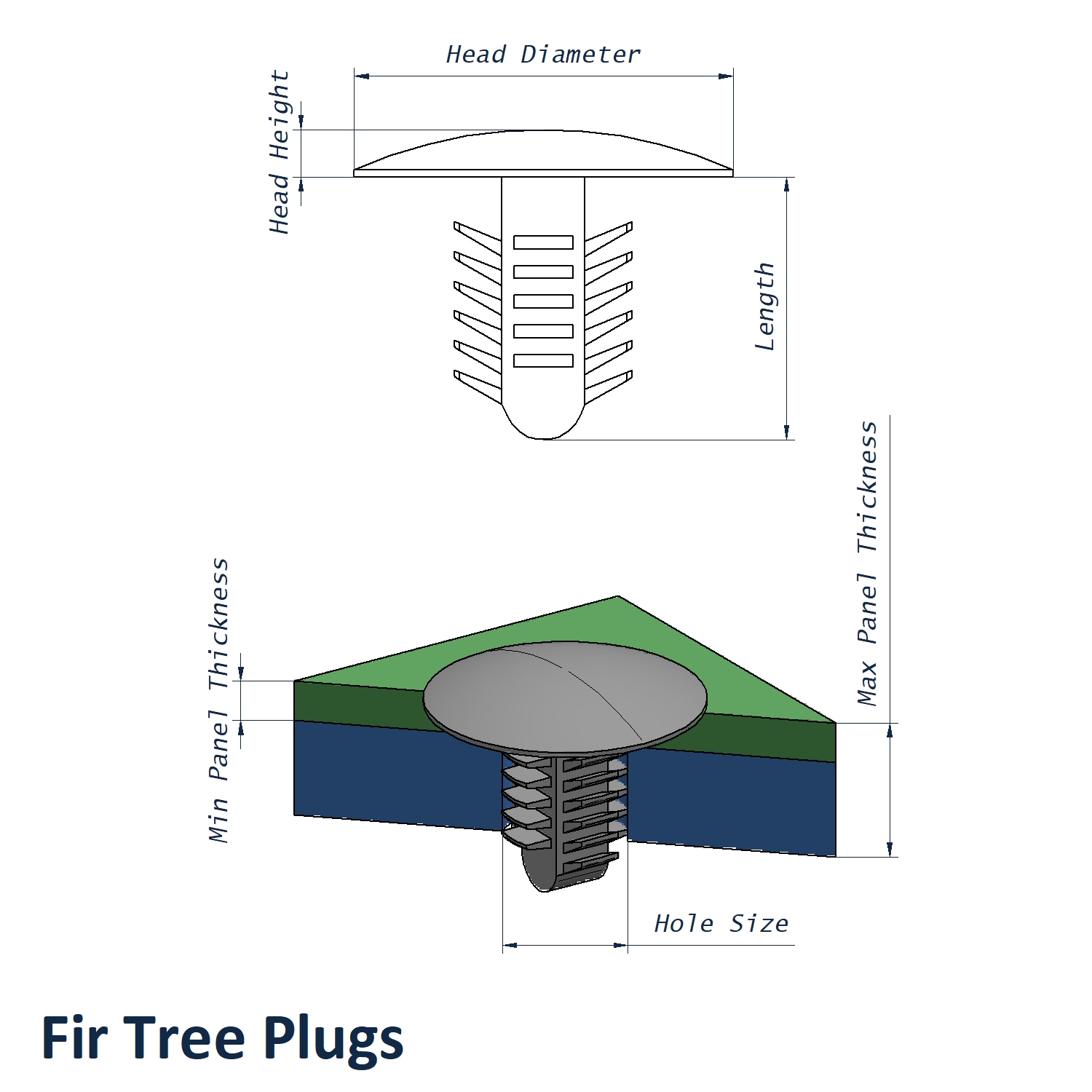

4mm x 12.2mm Black Fir Tree Plug Dimensions
- Hole Diameter: 4.00mm
- Min Panel Thickness: 1.6mm
- Max Panel Thickness: 10.0mm
- Length: 12.20mm
- Head Diameter: 11.2mm
- Head Height: 2.0mm
- Colour: Black
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
For project quantities, replacement fastener checks or help selecting the right barbed plug size, contact Vital Parts on 01233 713581. Our team can advise on fit, samples where available and trade supply options.
