Fixing Plate Index Plungers - IND018
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £6.70 | £8.04 |
| 25 - 49 | £6.43 | £7.72 |
| 50 - 99 | £6.18 | £7.42 |
| 100 - 499 | £5.93 | £7.12 |
| 500 + | £5.47 | £6.56 |
Product Stock

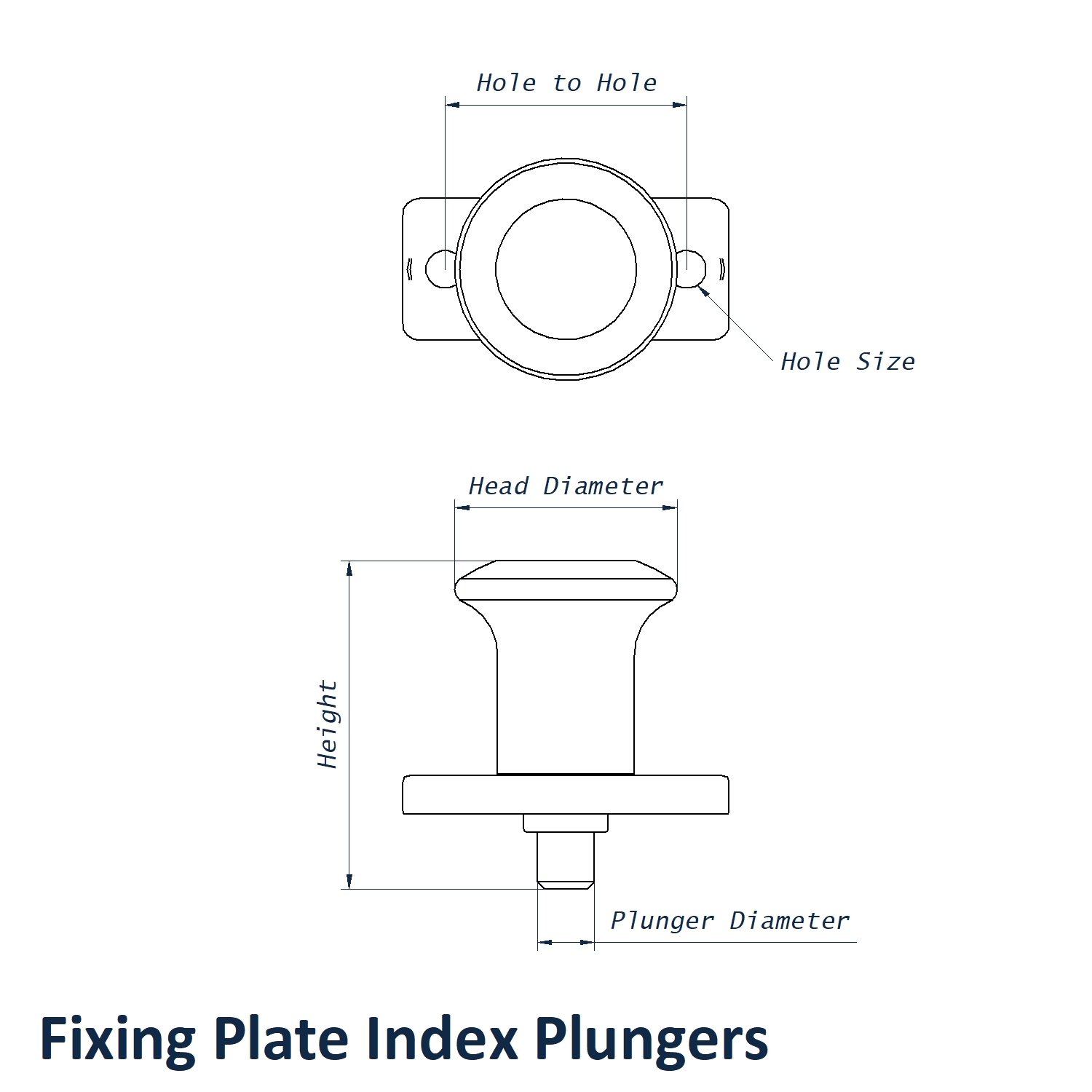

| Product Specifications | IND018 |
|---|---|
| Plunger Diameter | 8mm |
| Head Diameter | 31mm |
| Hole To Hole | 34mm |
| Length | 44mm |
| Material | Nylon & Zinc Plated Steel |
| Locking Rest Position | No |
| With Cap? | No |
| Colour | Black |
| Force For Full Retraction | 27N |
| Initiating Force | 8N |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

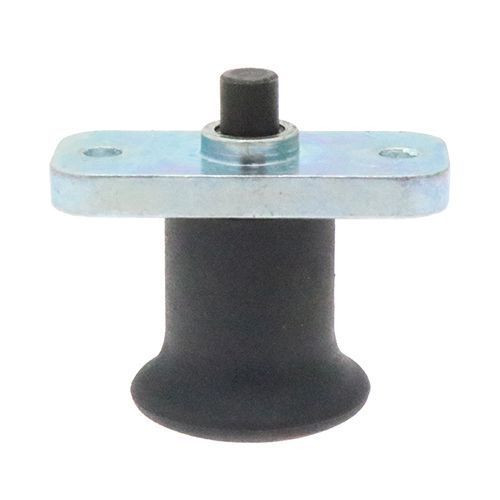

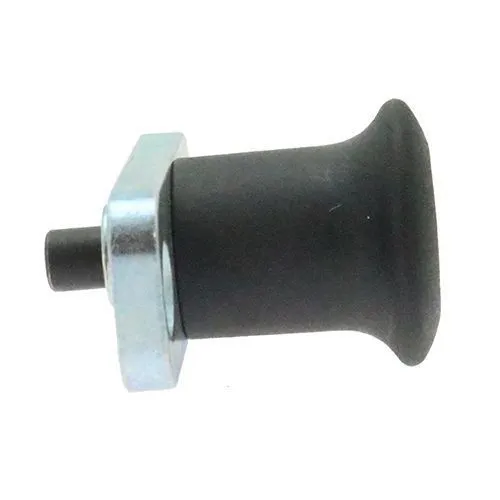

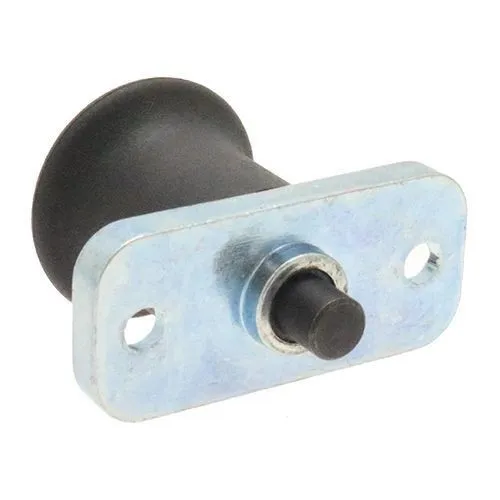

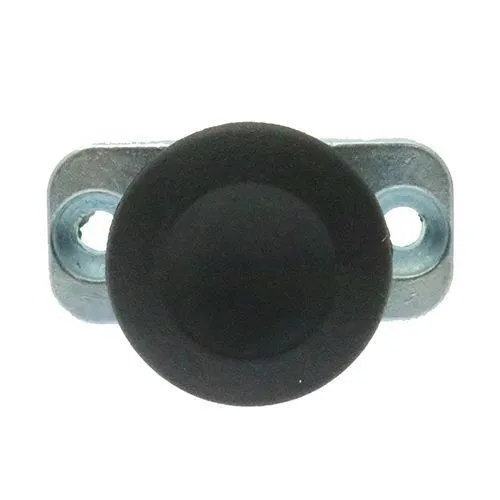

This fixing plate index plunger has a head diameter of 31mm and a length of 44mm. It has a plunger diameter of 8mm and the distance between its mounting holes is 34mm. It is constructed from Thermoplastic & Zinc Steel. Does it utilise a locking rest position? No. Does it come with a cap? No.
Fixing Plate Index Plungers are available with or without a 90° locking rest position, complete with a plate for easy attachment. Made from thermoplastic and zinc plated steel, they are designed to withstand high levels of weight and load, making them versatile for different installations.
They come with a matte black knob for industrial use and are recommended as a catching mechanism that can lock shut without any additional tools or hardware.
Available in a range of head diameters (25mm - 31mm) and fixing plate sizes (40mm to 46mm), they are commonly used as an alternative to standard knobs for locking and catching applications.
