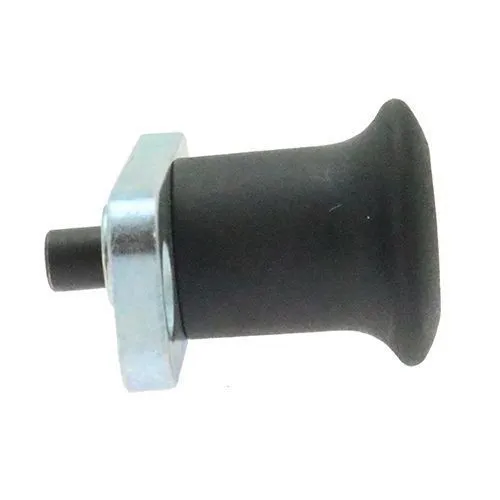

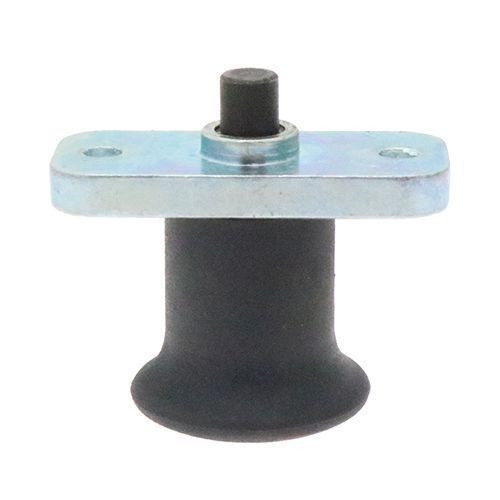

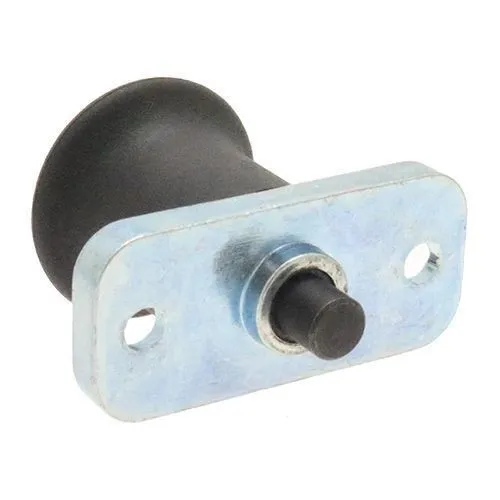

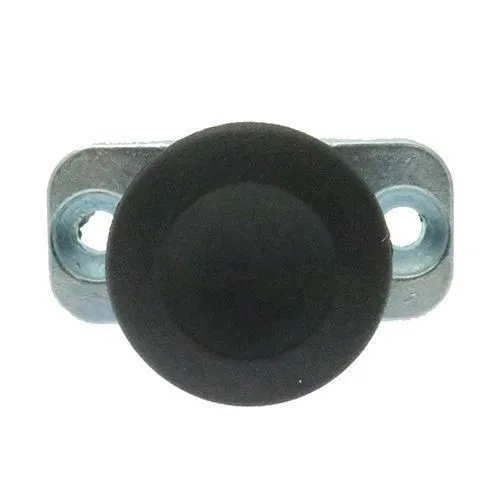

Fixing Plate Index Plungers - IND019
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £7.62 | £9.15 |
| 25 - 49 | £6.99 | £8.39 |
| 50 - 99 | £6.36 | £7.63 |
| 100 - 499 | £5.72 | £6.86 |
| 500 + | £5.34 | £6.41 |

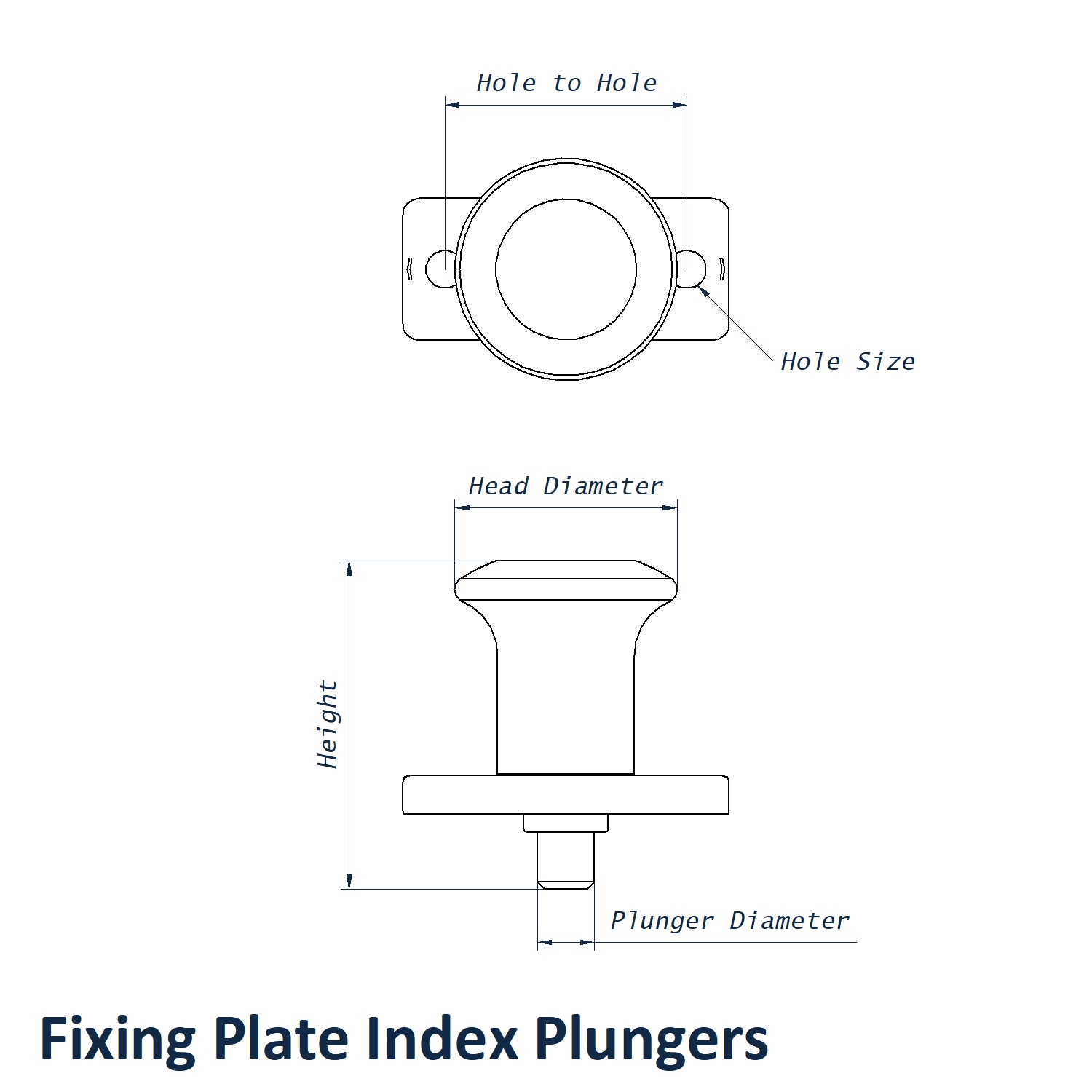

Product Specification
| Plunger Diameter | 6mm |
| Head Diameter | 25mm |
| Hole To Hole | 30mm |
| Length | 37mm |
| Material | Nylon & Zinc Plated Steel |
| Locking Rest Position | Yes |
| With Cap? | No |
| Colour | Black |
| Force For Full Retraction | 20N |
| Initiating Force | 6N |
Frequently Bought Together
Total Price: £0.00
This fixing plate index plunger has a head diameter of 25mm and a length of 37mm. It has a plunger diameter of 6mm and the distance between its mounting holes is 30mm. It is constructed from Thermoplastic & Zinc Steel. Does it utilise a locking rest position? Yes. Does it come with a cap? No.
Fixing Plate Index Plungers are available with or without a 90° locking rest position, complete with a plate for easy attachment. Made from thermoplastic and zinc plated steel, they are designed to withstand high levels of weight and load, making them versatile for different installations.
They come with a matte black knob for industrial use and are recommended as a catching mechanism that can lock shut without any additional tools or hardware.
Available in a range of head diameters (25mm - 31mm) and fixing plate sizes (40mm to 46mm), they are commonly used as an alternative to standard knobs for locking and catching applications.
