3.5mm x 25mm Flanged AB Self Tapping Screw (BS 4174) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.52 | £0.62 |
| 100 - 499 | £0.25 | £0.30 |
| 500 - 999 | £0.23 | £0.27 |
| 1000 + | £0.18 | £0.22 |
Product Specification
| Thread Size | 3.5mm |
| Length | 25.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 8.15mm |
| Head Height | 1.88mm |
| End Type | AB |
| Drive | PZ2 |
| Standard | BS 4174 |
Frequently Bought Together
Total Price: £0.00

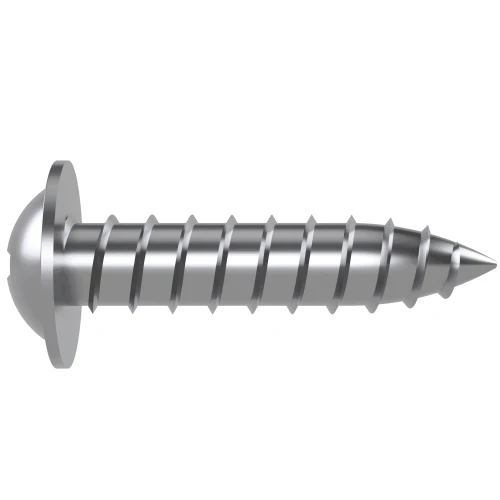

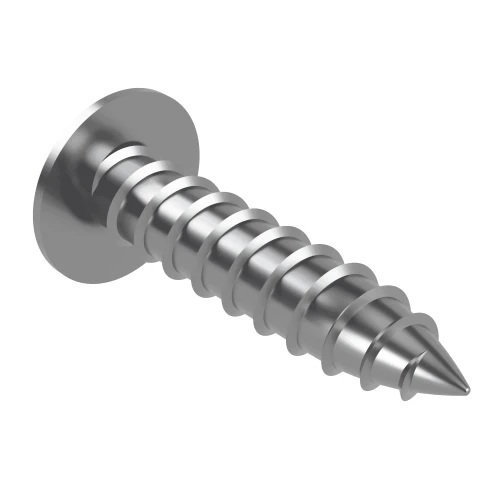

3.5mm x 25mm Pozi Flange AB Self Tapping Screw BS 4174 | A2 Stainless Steel
Built to BS 4174, this 3.5mm x 25mm self tapping screw gives installers a flanged Pozi head for controlled driving and improved clamp spread.
The PZ2 Pozi recess helps the installer maintain pressure during driving, while the AB thread form is suited to self tapping into compatible materials. The AB end type should be used with a suitable pilot hole for the material being fastened.
Common Applications
- Lighting gear housings
- 3.5mm stainless fixing for inspection station covers
- Boat interior hardware
- Cable tray accessories

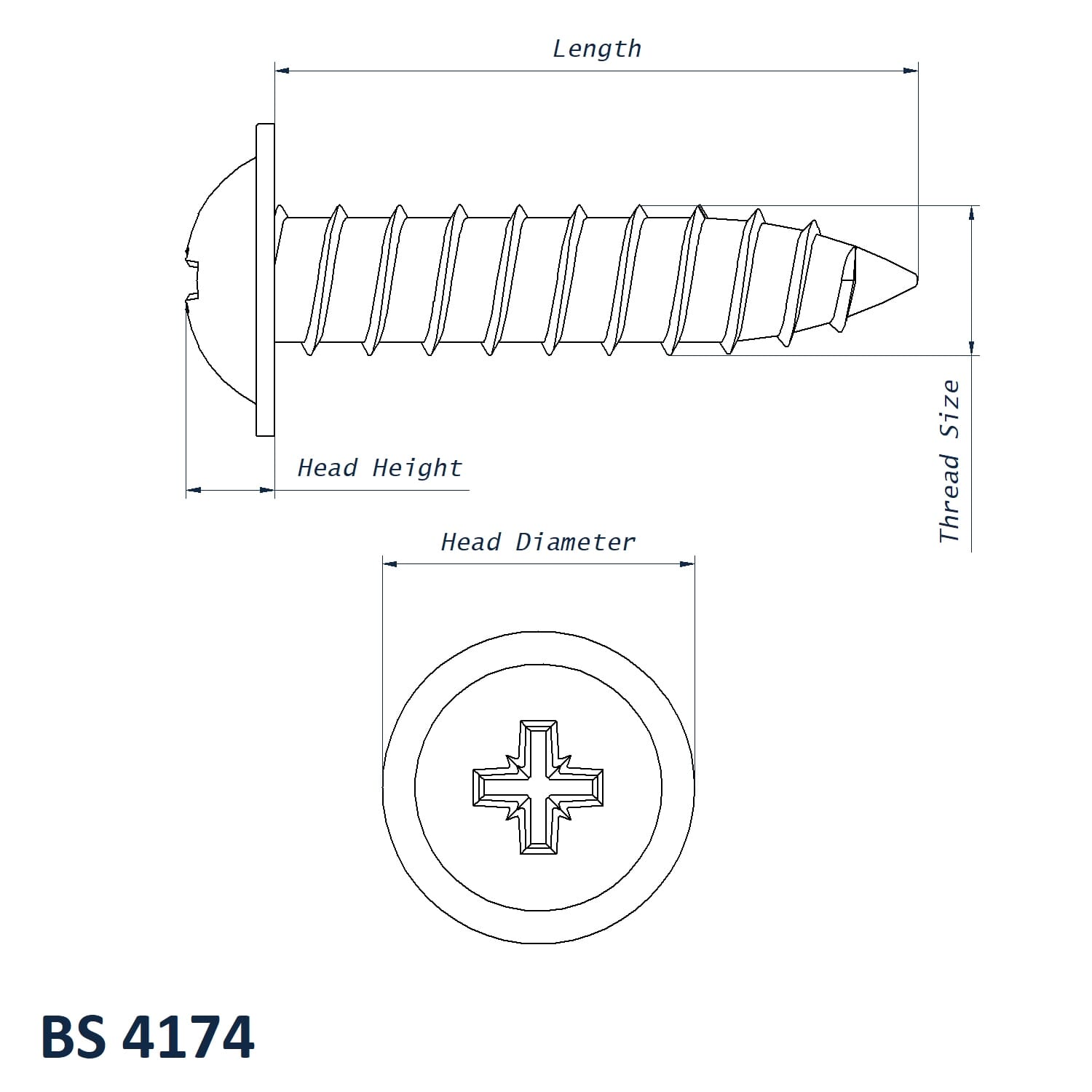

3.5mm x 25mm Pozi Flange Self Tapping Screw Dimensions
- Thread Size: 3.5mm
- Length: 25mm
- Head Diameter: 8.15mm
- Head Height: 1.88mm
- End Type: AB
- Drive: PZ2
- Standard: BS 4174
- Material: A2 Stainless Steel
Self Tapping Screw Buying Notes
The integrated flange is useful where a wider head seat is required, although the substrate thickness and installation torque should always be checked before fitting.
View our full Flanged AB Self Tapping Screws Range.
Explore more Self Tapping Screws for related fastening options.
