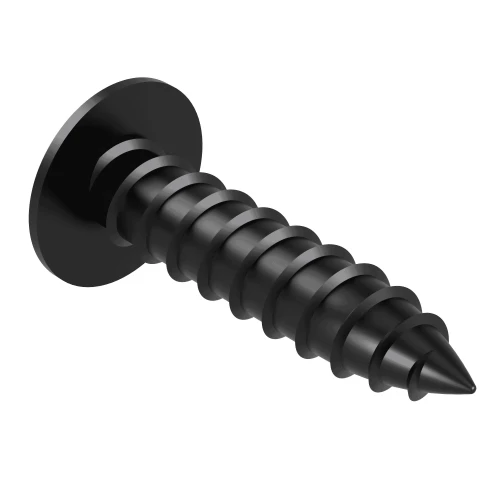

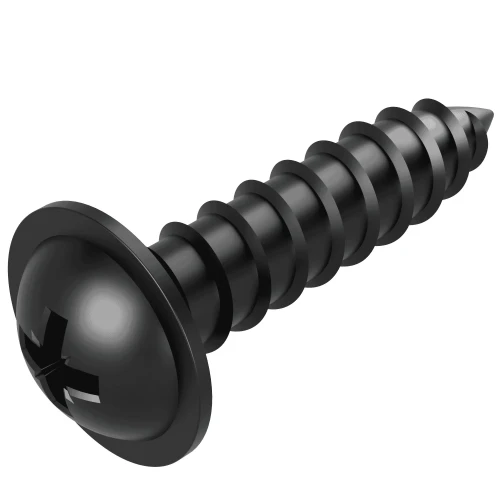

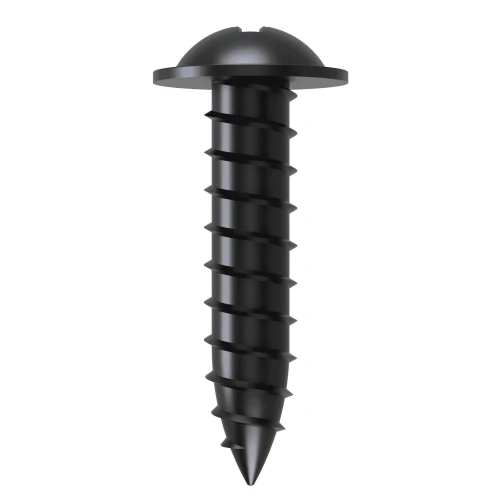

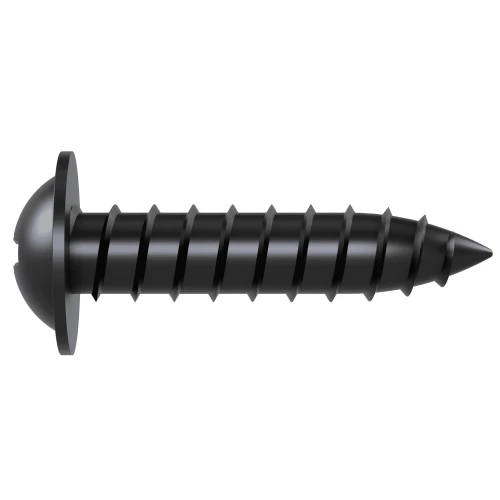

3.9mm x 9.5mm Flanged AB Self Tapping Screw (BS 4174) | Black Zinc Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.14 | £0.17 |
| 100 - 499 | £0.11 | £0.13 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 + | £0.03 | £0.04 |
Product Specification
| Thread Size | 3.9mm |
| Length | 9.5mm |
| Material | Steel Black Zinc |
| Head Diameter | 8.9mm |
| Head Height | 2.00mm |
| End Type | AB |
| Drive | PZ2 |
| Standard | BS 4174 |
Frequently Bought Together
Total Price: £0.00
3.9mm x 9.5mm Pozi Flange AB Self Tapping Screw BS 4174 | Black Zinc Steel
The 3.9mm x 9.5mm dimensions make this AB screw suitable for compact fastening positions where controlled insertion and a broad head seat are needed. It is especially useful when the 8.9mm head diameter is needed for extra bearing coverage.
The AB end type supports starting into suitable pilot holes, while the PZ2 recess gives controlled torque transfer during hand or powered installation.
Common Applications
- Workshop repair fixings
- Speaker cabinet hardware
- Industrial control panels
- Black zinc visible fixing for light duty frame accessories
3.9mm x 9.5mm Pozi Flange Self Tapping Screw Dimensions
- Thread Size: 3.9mm
- Length: 9.5mm
- Head Diameter: 8.9mm
- Head Height: 2mm
- End Type: AB
- Drive: PZ2
- Standard: BS 4174
- Material: Black Zinc Steel
Self Tapping Screw Buying Notes
The integrated flange is useful where a wider head seat is required, although the substrate thickness and installation torque should always be checked before fitting.
View our full Flanged AB Self Tapping Screws Range.
Explore more Self Tapping Screws for related fastening options.
