4.8mm x 38mm Flanged AB Self Tapping Screw (BS 4174) | Black Zinc Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.41 | £0.49 |
| 100 - 499 | £0.31 | £0.37 |
| 500 - 999 | £0.24 | £0.29 |
| 1000 + | £0.09 | £0.11 |
Product Specification
| Thread Size | 4.8mm |
| Length | 38.0mm |
| Material | Steel Black Zinc |
| Head Diameter | 11.38mm |
| Head Height | 2.90mm |
| End Type | AB |
| Drive | PZ2 |
| Standard | BS 4174 |
Frequently Bought Together
Total Price: £0.00
4.8mm x 38mm Pozi Flange AB Self Tapping Screw BS 4174 | Black Zinc Steel
Built to BS 4174, this 4.8mm x 38mm self tapping screw gives installers a flanged Pozi head for controlled driving and improved clamp spread. It is especially useful when the 11.38mm head diameter is needed for extra bearing coverage.
black zinc steel gives a darker finish for exposed fixings while keeping the strength of steel. This makes the screw well suited to controlled assembly work and planned maintenance stock. The BS 4174 reference also helps buyers keep specification records consistent across maintenance orders.
Common Applications
- Boat interior hardware
- Black zinc visible fixing for cable tray accessories
- 38mm reach for hvac access panels
- Fabricated bracket fixing

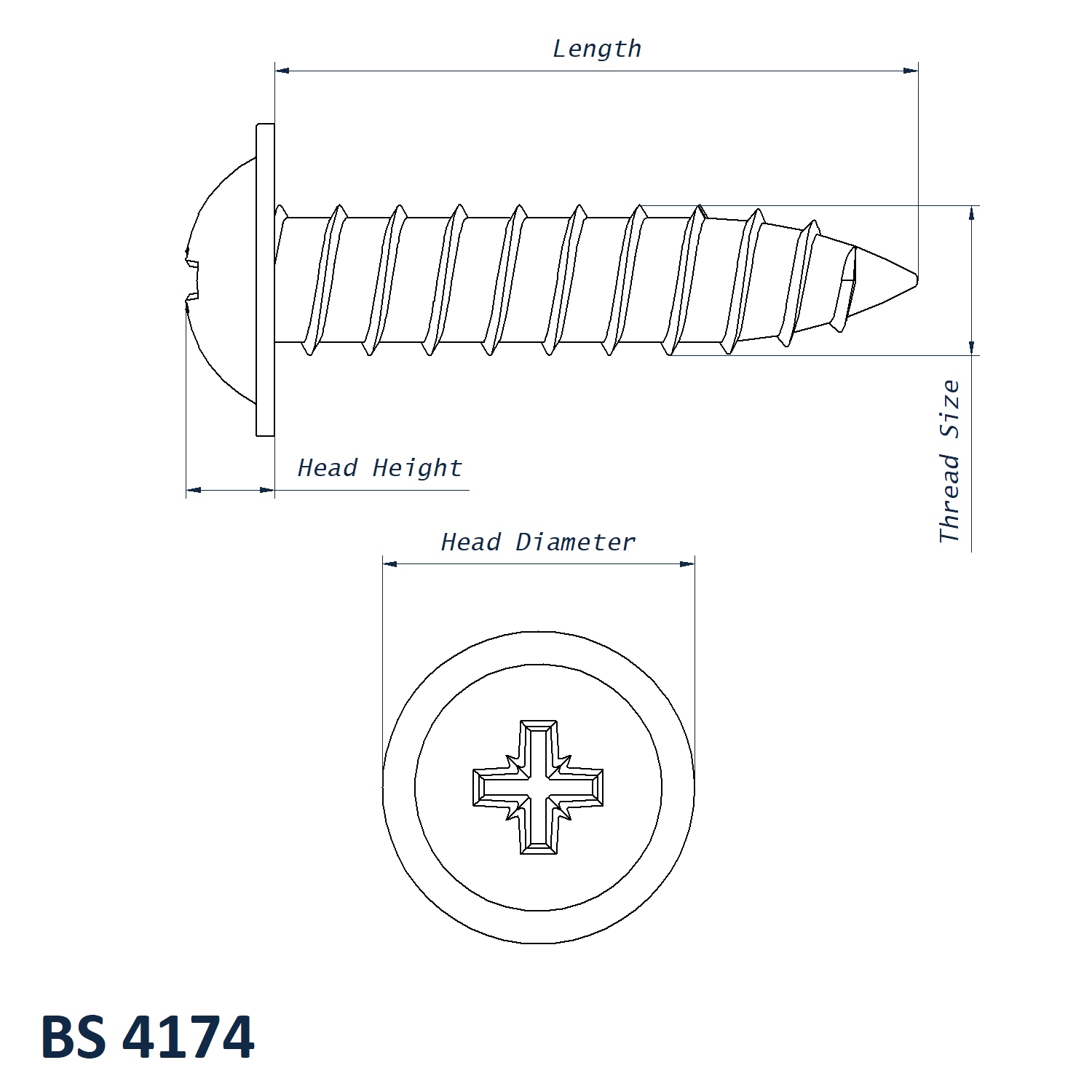

4.8mm x 38mm Pozi Flange Self Tapping Screw Dimensions
- Thread Size: 4.8mm
- Length: 38mm
- Head Diameter: 11.38mm
- Head Height: 2.90mm
- End Type: AB
- Drive: PZ2
- Standard: BS 4174
- Material: Black Zinc Steel
Self Tapping Screw Buying Notes
The integrated flange is useful where a wider head seat is required, although the substrate thickness and installation torque should always be checked before fitting.
View our full Flanged AB Self Tapping Screws Range.
Explore more Self Tapping Screws for related fastening options.
