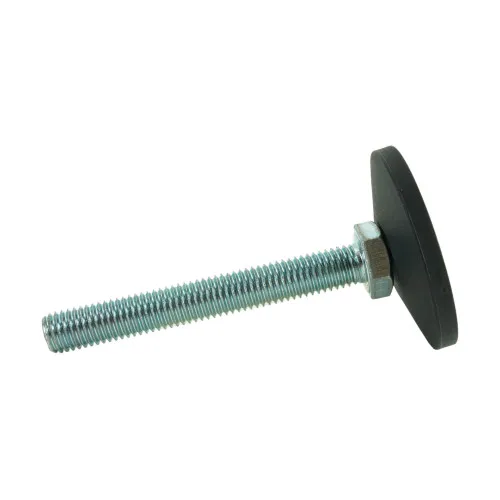

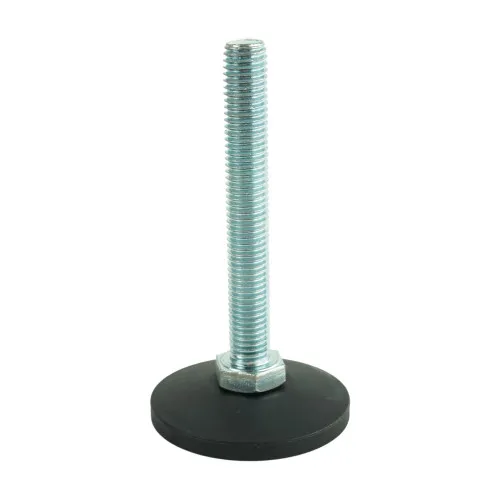

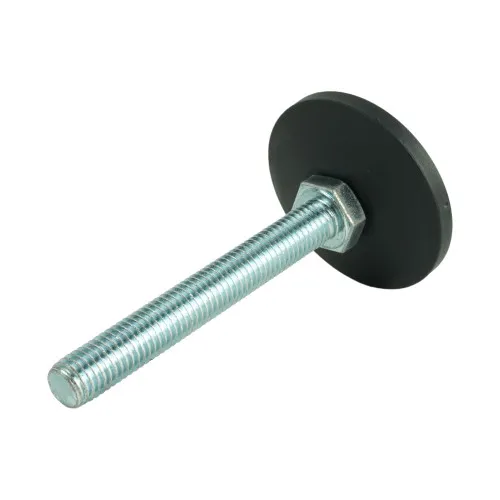

M12 x 90mm Articulating Foot - 58mm Base (650kg Load) | Polypropylene & Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.27 | £2.72 |
| 100 - 249 | £2.06 | £2.47 |
| 250 - 499 | £1.88 | £2.25 |
| 500 - 999 | £1.71 | £2.05 |
| 1000 + | £1.55 | £1.86 |
£2.72 / each
.png)
Product Specification
| Thread Size | M12 |
| Thread Length | 90mm |
| Base Diameter | 58mm |
| Base Height | 10mm |
| Weight Rating | 650kg |
| Material | Polypropylene & Steel BZP |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M12 x 90mm General Articulating Foot – 58mm Black Polyethylene Base (650kg)
This M12 articulating adjustable foot offers a 90mm threaded fixing and a 58mm bearing base. The base swivels relative to the stem so the mounted item can be levelled without requiring the floor beneath every foot to be perfectly flat.
What Are General Articulating Feet?
A general articulating foot is a screw-in support that can help steady equipment on an irregular floor. Its steel male thread provides vertical adjustment and its 58mm polyethylene base can swivel to suit floor angles of up to 8°. Check the full installation and load distribution when selecting feet.
Common Applications
- Replacement levelling feet: Replace a compatible M12 screw-in foot when the thread and base dimensions match.
- Assembly stations: Position an assembly station level by adjusting individual threaded support points.
- Industrial workstations: Level a workstation frame using the 90mm threaded stem and an appropriate mating fixing.
- Display fixtures: Level a floor-standing display or modular fixture with suitable threaded sockets.
M12 x 90mm General Articulating Foot Dimensions
- Base Diameter: 58mm
- Base Height: 10mm
- Thread Size: M12
- Thread Length: 90mm
- Weight Rating: 650kg
- Colour: Black
- Material: Polyethylene
- Threaded Stem Material: Steel
Key Benefits
- The stated 650kg weight rating helps with selection against the application load.
- Available dimensions allow replacements to be matched to existing threaded support points.
- The M12 steel threaded stem allows height adjustment through a suitable mating thread.
- The pivoting design accommodates floor angle without requiring a rigid foot to sit perfectly flat.
Explore more articulating feet for equipment to compare base sizes, thread lengths and weight ratings. If you need help selecting the correct foot, call us on 01233 713581.
