| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £2.68 | £3.22 |
| 2 - 99 | £2.43 | £2.92 |
| 100 - 249 | £2.22 | £2.66 |
| 250 - 499 | £2.02 | £2.42 |
| 500 - 999 | £1.83 | £2.20 |
| 1000 + | £1.67 | £2.00 |
Product Stock
| Product Specifications | ADJ567 |
|---|---|
| Thread Size | M12 x 100mm |
| Base Diameter | 58mm |
| Weight Rating | 650kg |
| Colour | Black |
| Material | Polyethylene |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
- Thread Size M12
- Material A2-70 Stainless Steel
- Height 10.0mm
- Thread Pitch 1.75mm
- Across Flats 19.0mm
- Standard DIN 934
- Thread Size M12
- Material LDPE
- Colour Black
- Outside Diameter 40mm x 40mm
- Wall Thickness 1.0 - 1.5mm
- Thread Size M12
- Material Stainless Steel
- Colour Black
- Outside Diameter 50mm x 50mm
- Wall Thickness 2.5mm
Total Price: £0.00
Product Description

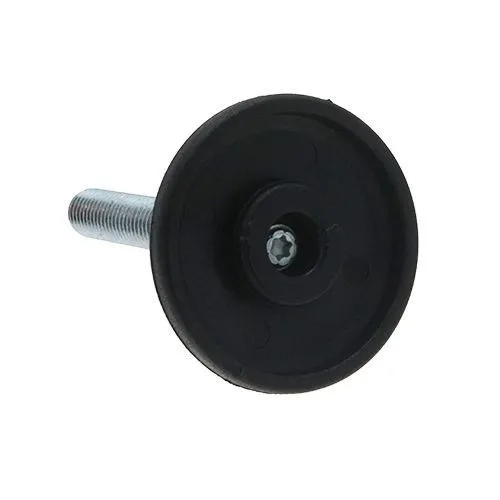

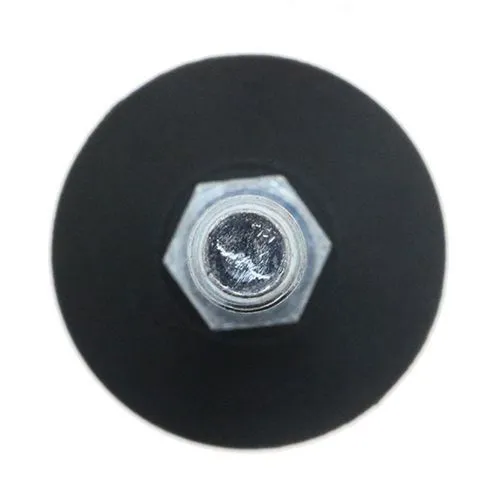

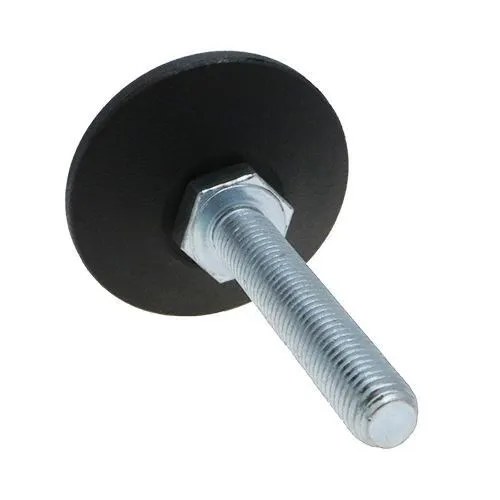

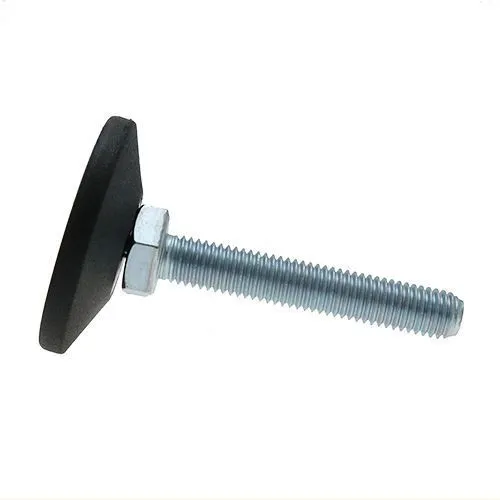

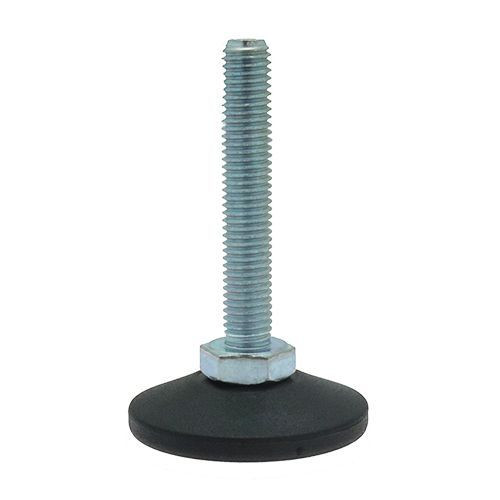

M12 x 100mm Articulating Adjustable Feet, 58mm Base | Vital Parts - ADJ567
Enhance the stability and longevity of your furniture, appliances and machinery with our M12 x 100mm Articulating Adjustable Feet. Expertly crafted from durable steel and polyethylene, these feet are designed to provide reliable support and easy height adjustment, ensuring your equipment remains level and secure on uneven surfaces.
What are Articulating Adjustable Feet?
Articulating Adjustable Feet are components used to level and stabilise various types of equipment. They consist of a threaded steel stem and a polyethylene base, allowing for straightforward height adjustments. The articulating base permits up to 8 degrees of movement, accommodating uneven surfaces and providing additional stability. Commonly utilised in both industrial and consumer applications, these feet are essential for maintaining balance and reducing wear on furniture, appliances and machinery.
Key Applications and Industries
In the UK market, our Articulating Adjustable Feet are favoured by professionals and DIY enthusiasts across multiple sectors:
- Furniture Manufacturing: Ensuring tables, chairs and cabinets remain level, preventing wobbling and potential damage.
- Appliance Production: Providing stability for washing machines, refrigerators and other household appliances, enhancing performance and safety.
- Industrial Machinery: Stabilising equipment to maintain operational efficiency and reduce vibration-related wear.
Who Uses Articulating Adjustable Feet?
Our Articulating Adjustable Feet are utilised by a diverse range of individuals and professionals in the UK, including:
- Furniture Manufacturers: Incorporating adjustable feet into products to ensure stability and customer satisfaction.
- Appliance Manufacturers: Equipping appliances with adjustable feet to enhance performance and user safety.
- Industrial Engineers: Installing adjustable feet on machinery to maintain operational efficiency and reduce wear.
- DIY Enthusiasts: Adding adjustable feet to custom projects to ensure balance and longevity.
Why Choose Our Articulating Adjustable Feet?
Our adjustable feet offer several advantages:
Durable Construction: The combination of a steel threaded stem and a polyethylene base ensures long-lasting performance, even under substantial loads.
Articulating Base: The base allows for up to 8 degrees of movement, accommodating uneven surfaces and providing additional stability.
Easy Installation: The M12 x 100mm thread allows for quick and secure attachment to a variety of equipment.
Cost-Effective Solution: Designed to provide quality performance at an affordable price point, making them accessible for various applications.
Key Features and Benefits:
- Material: Steel threaded stem paired with a durable polyethylene base.
- Dimensions: M12 x 100mm thread size with a 58mm base diameter.
- Weight Capacity: Supports loads up to 650kg, suitable for a wide range of equipment.
- Articulation: Base allows for up to 8 degrees of movement to accommodate uneven surfaces.
Available in a range of sizes to suit your specific requirements. Order your Articulating Adjustable Feet today to enhance the stability and longevity of your equipment. With same-day dispatch available, trade pricing discounts and free technical support - Contact Vital Parts today at 01233 713581.
Related Products
| Code | Base Diameter | Thread Size | Material | Weight Rating | Colour | Stock | |
|---|---|---|---|---|---|---|---|
| ADJ562 | 58mm | M12 x 50mm | Polyethylene | 650kg | Black |
Checking...
|
|
| ADJ563 | 58mm | M12 x 60mm | Polyethylene | 650kg | Black |
Checking...
|
|
| ADJ564 | 58mm | M12 x 70mm | Polyethylene | 650kg | Black |
Checking...
|
|
| ADJ565 | 58mm | M12 x 80mm | Polyethylene | 650kg | Black |
Checking...
|
|
| ADJ566 | 58mm | M12 x 90mm | Polyethylene | 650kg | Black |
Checking...
|
|
| ADJ568 | 58mm | M12 x 120mm | Polyethylene | 650kg | Black |
Checking...
|
|
