Adjustable Metal Feet - ADJ298
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £1.38 | £1.65 |
| 50 - 249 | £1.25 | £1.50 |
| 250 - 499 | £1.13 | £1.36 |
| 500 - 999 | £1.03 | £1.24 |
| 1000 + | £0.94 | £1.13 |
Product Specification
| Thread Size | M8 |
| Stud Length | 50mm |
| Base Diameter | 50mm |
| Base Style | Bolt Down |
| Weight Rating | 650kg |
| Base Height | 6mm |
| Material | Zinc Plated Steel |
Frequently Bought Together
Total Price: £0.00

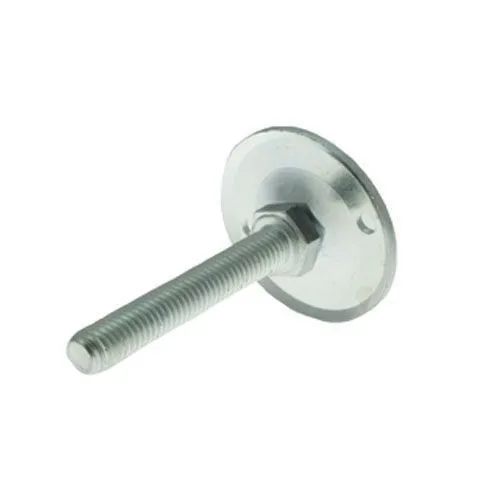

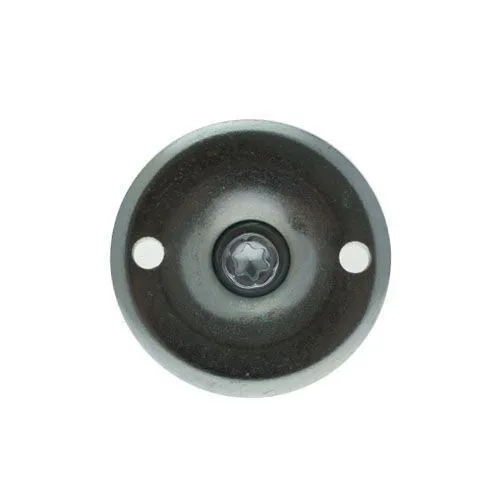

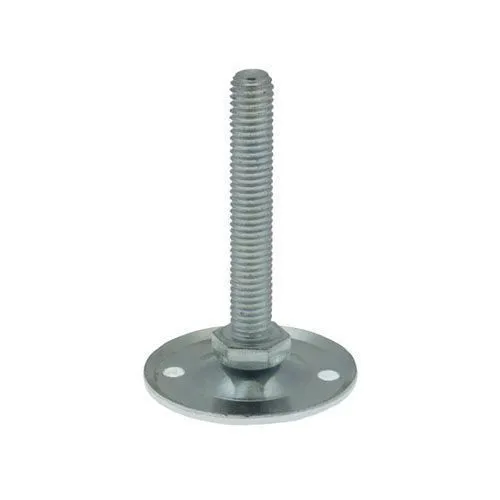

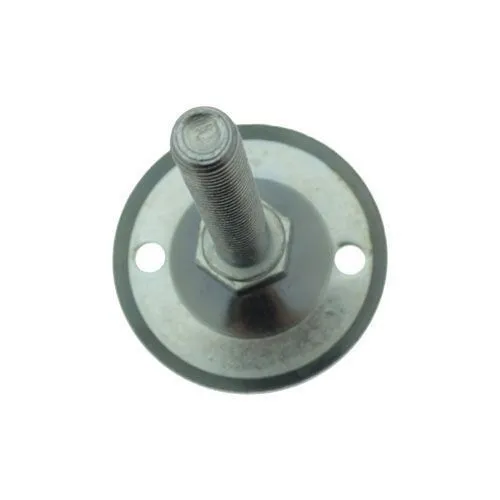

M8 x 50mm Bolt Down Adjustable Metal Foot | 50mm Base Diameter | Zinc Plated Steel
For fixed processing lines, these M8 x 50mm Bolt Down Adjustable Metal Foot give engineers an adjustable metal foot that can be secured once the machine position is confirmed.
The M8 stem supports accurate vertical setting and the bolt down base helps keep equipment lines stable through routine operation. This bolt down adjustable foot is especially useful where the frame must be positioned, levelled and then fixed through the base for extra security.
Common Applications
- Fixed line machinery
- Bolted processing frames
- Machine installation feet
- Production equipment levelling

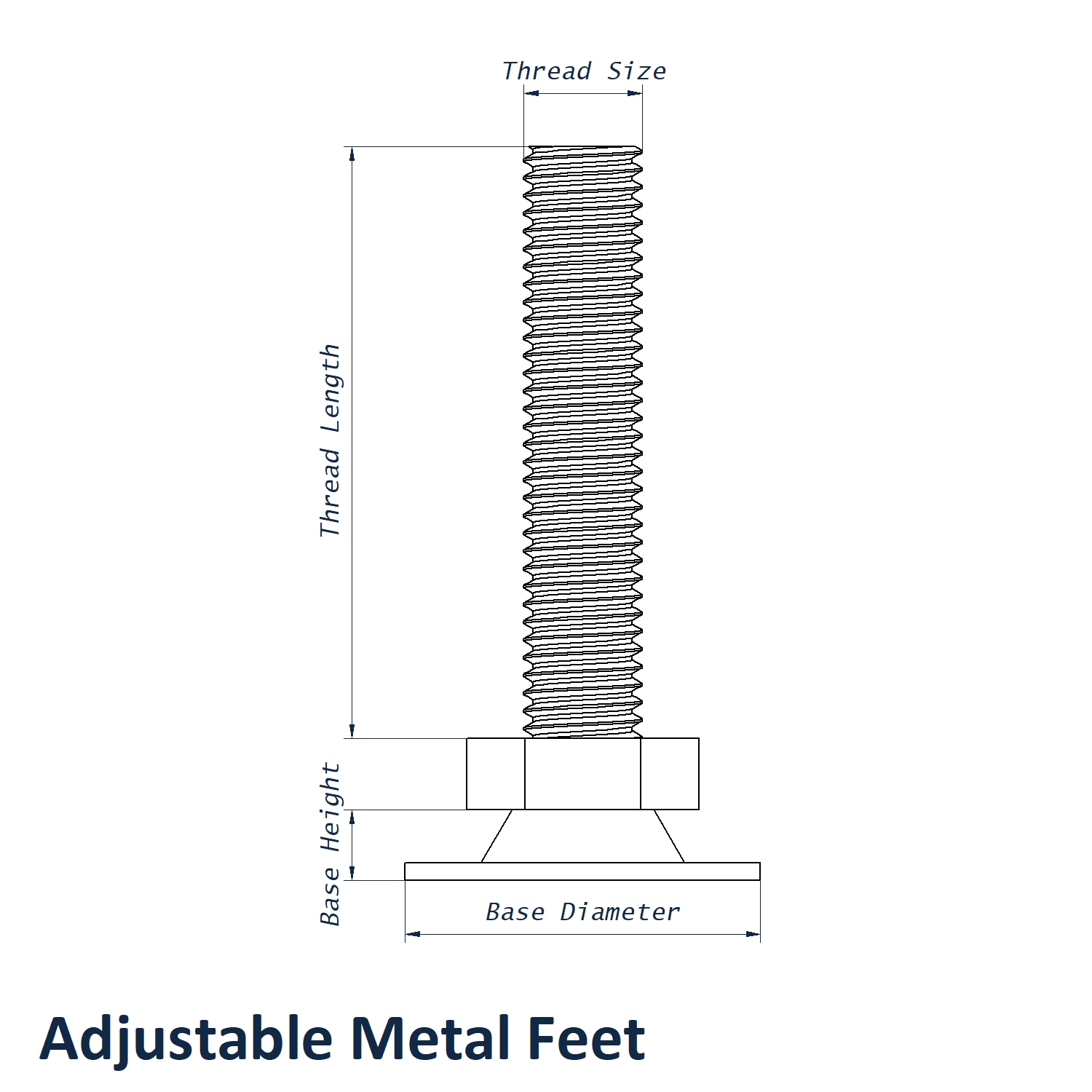

M8 x 50mm Bolt Down Adjustable Metal Foot Dimensions
- Base Diameter: 50mm
- Thread Size: M8
- Stud Length: 50mm
- Base Style: Bolt Down
- Weight Rating: 650kg
- Base Height: 6mm
- Material: Zinc Plated Steel
- Colour: Silver
Commonly Paired with General Metal Adjustable Feet - T Nuts
Perfect for adjustable metal feet where a secure threaded anchor is required in timber, composite panels or furniture assemblies. T Nuts provide a reliable fixing point for threaded feet and help support repeated levelling adjustments.
Click here to view our full range of T Nuts.
View our full range of General Metal Adjustable Feet.
