Black 2:1 Heat Shrink, 1.2mm x 12m - HS2-1.2-12B
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £4.40 | £5.28 |
| 15 - 49 | £3.77 | £4.53 |
| 50 + | £3.30 | £3.96 |

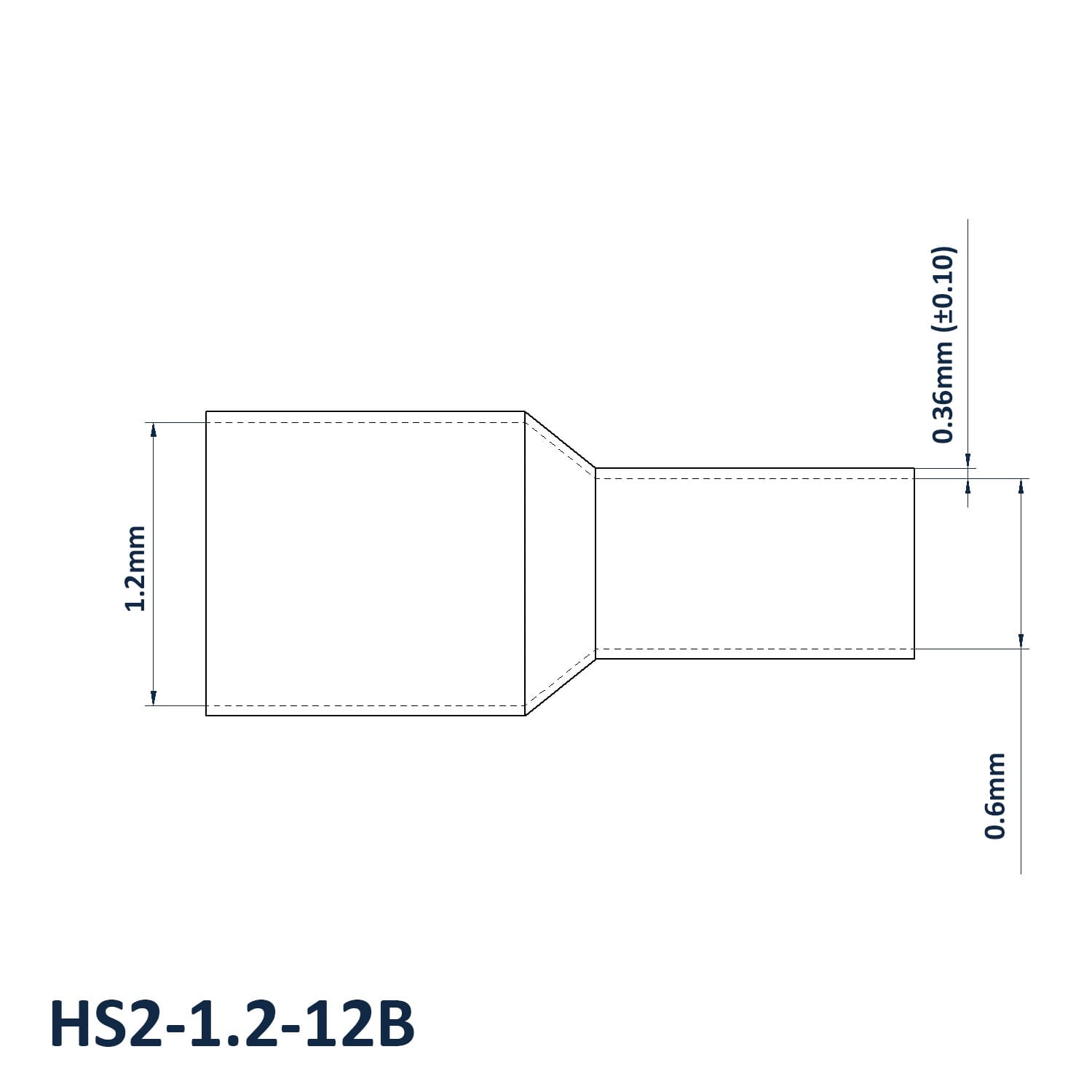

Product Specification
| Supplied Internal Diameter | 1.2mm |
| Recovered Internal Diameter | 0.6mm |
| Colour | Black |
| Length | 12m |
| Wall Thickness After Recovery | 0.36mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00

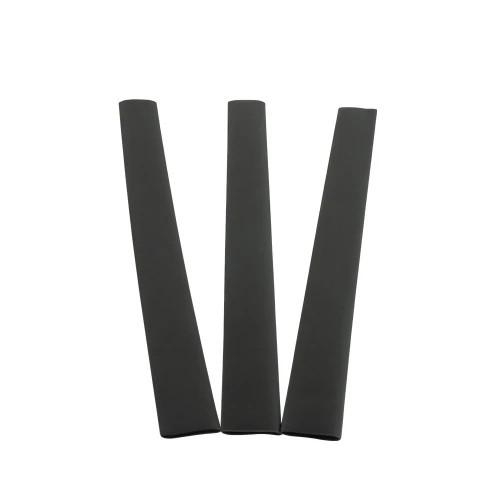

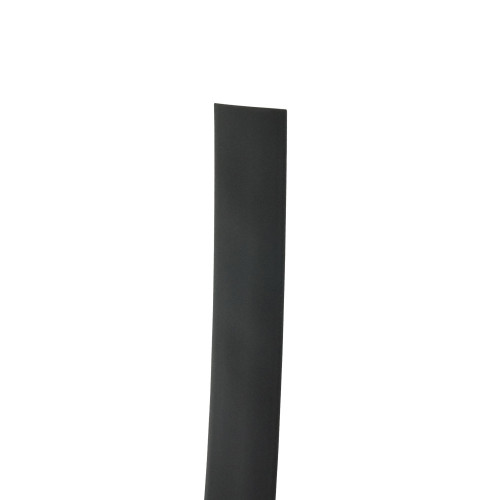

Black 2:1 Heat Shrink Sleeve – 1.2mm x 12m | Polyolefin
Designed for neat electrical insulation, this black heat shrink sleeve is supplied with a 1.2mm internal diameter and 12m roll length for controlled cable covering work.
With a wall thickness after recovery of 0.36mm (±0.10), it adds a useful protective layer while keeping the sleeve compact enough for neat harness layouts.
What Are Heat Shrink Sleeves?
A heat shrink sleeve is fitted over a wire, cable or joint before being heated into place. As it contracts, it forms a closer covering that helps protect the area beneath it.
Common Applications
- Marking wires in electronics assembly
- Protecting sensor leads and smaller conductors
- Insulating low voltage cable joints
- Providing a neat finish around component wiring
1.2mm x 12m Black Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 1.2mm
- Recovered Internal Diameter: 0.6mm
- Colour: Black
- Length: 12m
- Wall Thickness After Recovery: 0.36mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
For best results, choose a supplied diameter that fits over the target area before heating and check that the recovered diameter is suitable for the final cable size.
Related Heat Shrink Products
For related cable protection, see our Adhesive Lined Heatshrink where internal bonding is needed and Heat Shrink Caps for end sealing applications.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
For advice on choosing the correct heat shrink sleeve size for your cable, harness or repair application, call 01233 713581. We can help with technical checks and larger order requirements.
