Yellow 2:1 Heat Shrink, 1.6mm x 12m - HS2-1.6-12Y
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £5.20 | £6.24 |
| 15 - 49 | £4.46 | £5.35 |
| 50 + | £3.90 | £4.68 |
Product Specification
| Supplied Internal Diameter | 1.6mm |
| Recovered Internal Diameter | 0.8mm |
| Colour | Yellow |
| Length | 12m |
| Wall Thickness After Recovery | 0.36mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00
Yellow 2:1 Heat Shrink Sleeve – 1.6mm x 12m | Polyolefin
Specified for wiring looms and control panels, this colour coded heat shrink supports neat cable management while adding abrasion resistance over exposed sections.
The recovered diameter of 0.8mm helps create a closer fit around compatible cable sizes and reduces the risk of a loose protective sleeve after installation.
What Are Heat Shrink Sleeves?
Cable heat shrink is a simple sleeving product used to finish and protect wiring. The 2:1 ratio means the sleeve recovers to around half its supplied internal diameter when correctly heated.
Common Applications
- Cable identification in signage assemblies
- Protecting LED wiring connections
- Bundling smaller wires behind display panels
- Finishing electrical joins in retail fixtures

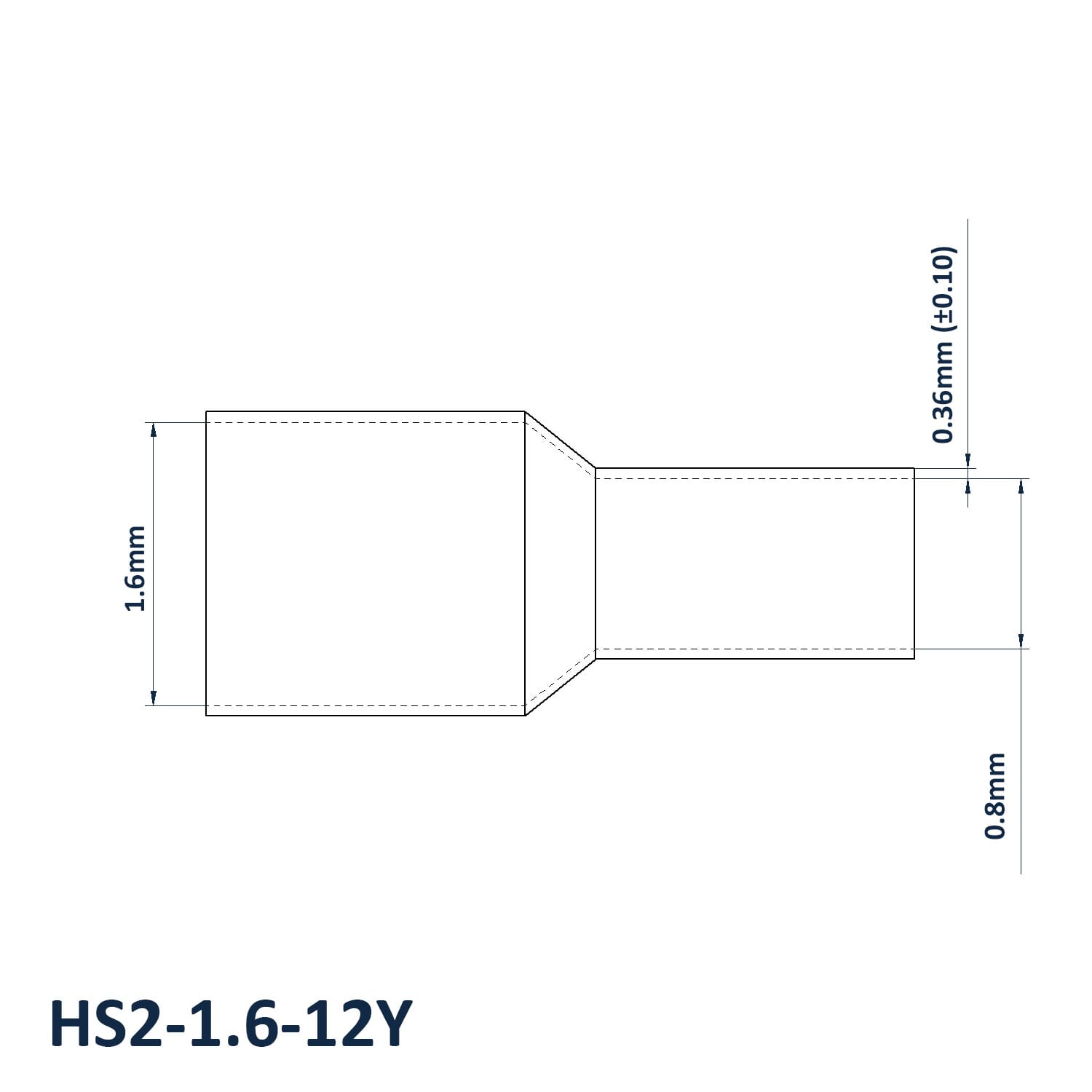

1.6mm x 12m Yellow Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 1.6mm
- Recovered Internal Diameter: 0.8mm
- Colour: Yellow
- Length: 12m
- Wall Thickness After Recovery: 0.36mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
For best results, choose a supplied diameter that fits over the target area before heating and check that the recovered diameter is suitable for the final cable size.
Related Heat Shrink Products
For related cable protection, see our Adhesive Lined Heatshrink where internal bonding is needed and Heat Shrink Caps for end sealing applications.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
If you are unsure whether a standard sleeve, adhesive lined heatshrink or heat shrink cap is the best option, call 01233 713581 and our team can help you choose the right range.
