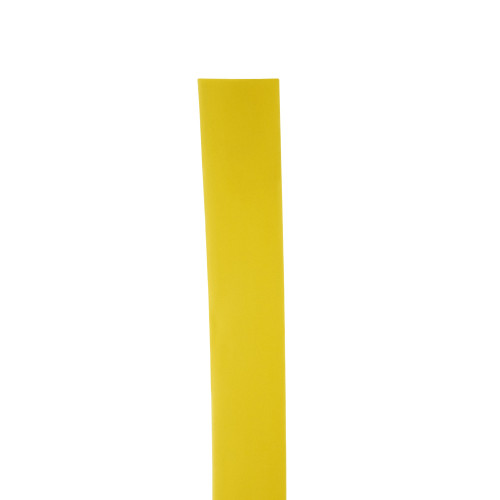

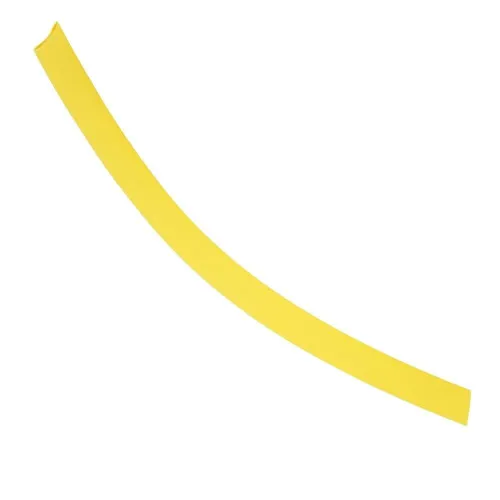

12.7mm Yellow Heat Shrink Tubing | 100m
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £45.00 | £54.00 |
| 15 - 49 | £40.00 | £48.00 |
| 50 + | £36.00 | £43.20 |
£54.00 / each
Product Specification
| Supplied Internal Diameter | 12.7mm |
| Recovered Internal Diameter | 6.35mm |
| Colour | Yellow |
| Length | 100m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00
Yellow 2:1 Heat Shrink Sleeve – 12.7mm x 100m | Polyolefin
Developed for clean cable finishing, this yellow cable repair sleeve is supplied in yellow Polyolefin and sized to recover around smaller or larger wire groups as required.
The recovered diameter of 6.35mm helps create a closer fit around compatible cable sizes and reduces the risk of a loose protective sleeve after installation.
What Are Heat Shrink Sleeves?
Cable heat shrink is a simple sleeving product used to finish and protect wiring. The 2:1 ratio means the sleeve recovers to around half its supplied internal diameter when correctly heated.
Common Applications
- Securing wire groups inside packaging machinery
- Finishing switch wiring in machine guards
- Protecting cable repairs around access panels
- Colour coding service circuits for quick identification

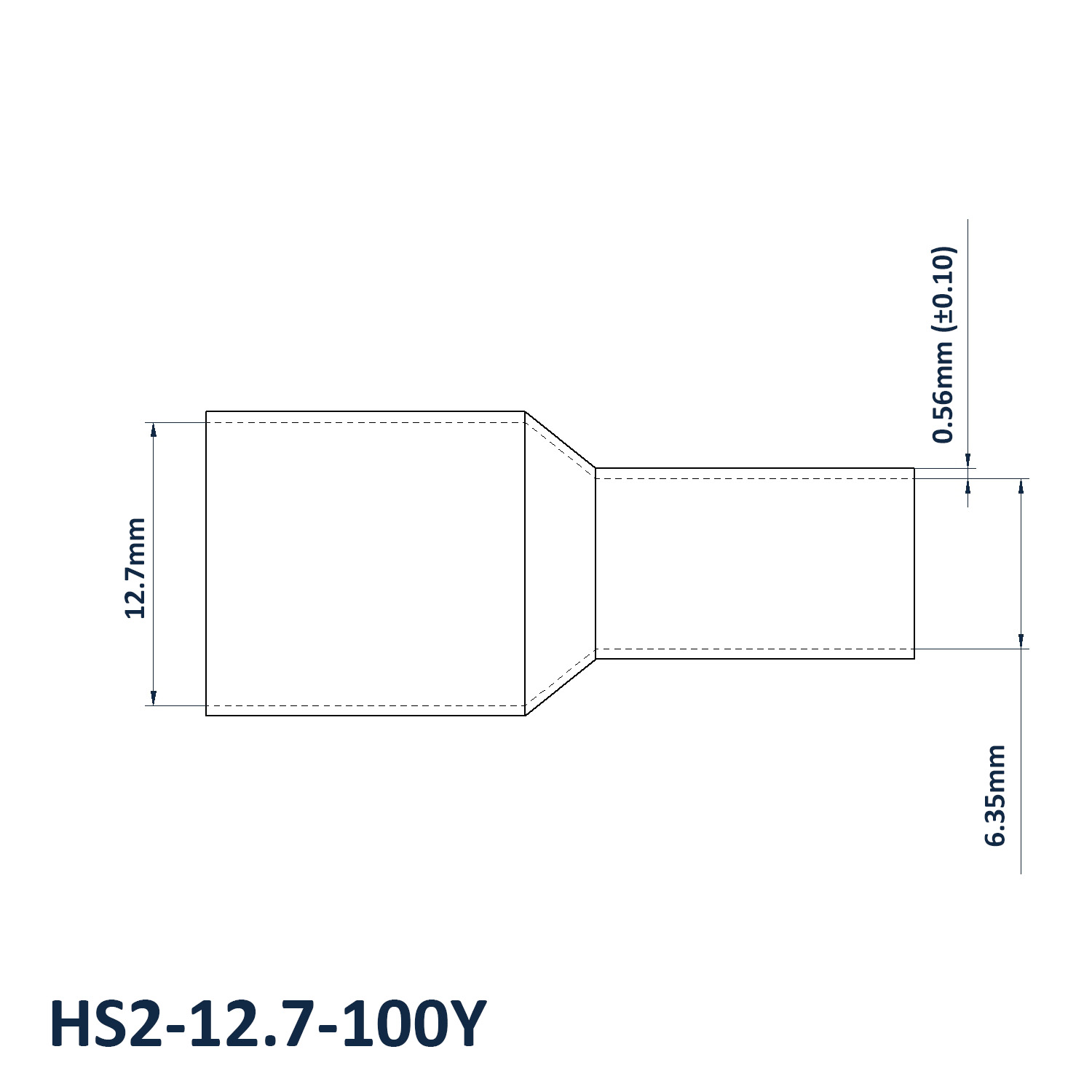

12.7mm x 100m Yellow Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 12.7mm
- Recovered Internal Diameter: 6.35mm
- Colour: Yellow
- Length: 100m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
Use suitable heat control during fitting so the sleeve recovers cleanly without damaging the cable insulation beneath it.
Related Heat Shrink Products
We also offer Adhesive Lined Heatshrink for sealed cable joints and Heat Shrink Caps for closing off cable ends where a sleeve is not the best option.
View our full Heat Shrink Sleeves range.
