Yellow 2:1 Heat Shrink, 12.7mm x 6m - HS2-12.7-6Y
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £8.83 | £10.60 |
| 15 - 49 | £8.06 | £9.67 |
| 50 + | £7.05 | £8.46 |
Product Specification
| Supplied Internal Diameter | 12.7mm |
| Recovered Internal Diameter | 6.35mm |
| Colour | Yellow |
| Length | 6m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00

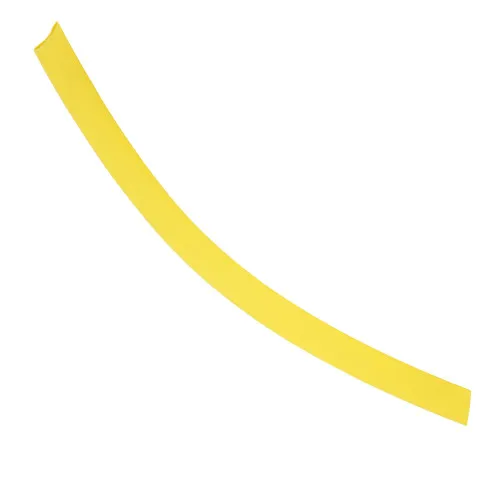

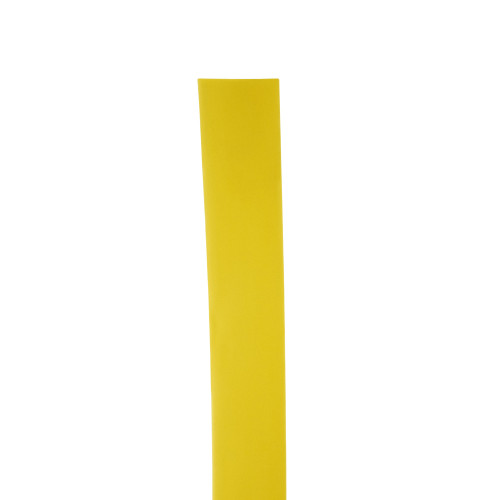

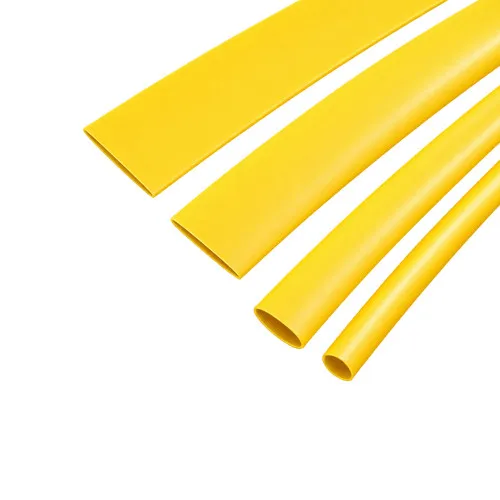

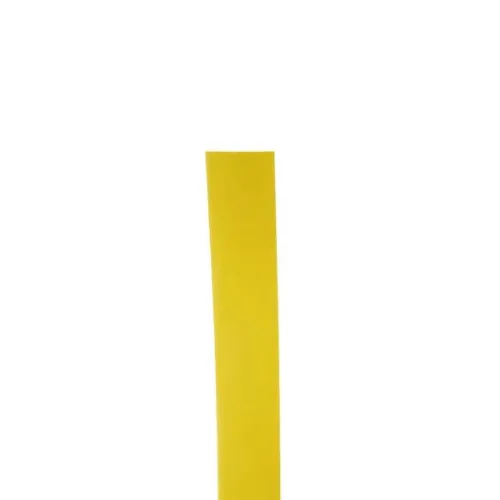

Yellow 2:1 Heat Shrink Sleeve – 12.7mm x 6m | Polyolefin
Ideal for cable marking and insulation, this 2:1 heat shrink tubing combines a 12.7mm supplied bore with a recovered size of 6.35mm once heat is applied.
The recovered diameter of 6.35mm helps create a closer fit around compatible cable sizes and reduces the risk of a loose protective sleeve after installation.
What Are Heat Shrink Sleeves?
Cable heat shrink is a simple sleeving product used to finish and protect wiring. The 2:1 ratio means the sleeve recovers to around half its supplied internal diameter when correctly heated.
Common Applications
- Rail and transport equipment wiring support
- Colour marking inspection points
- Covering cable joints inside service compartments
- Protecting wiring from regular handling

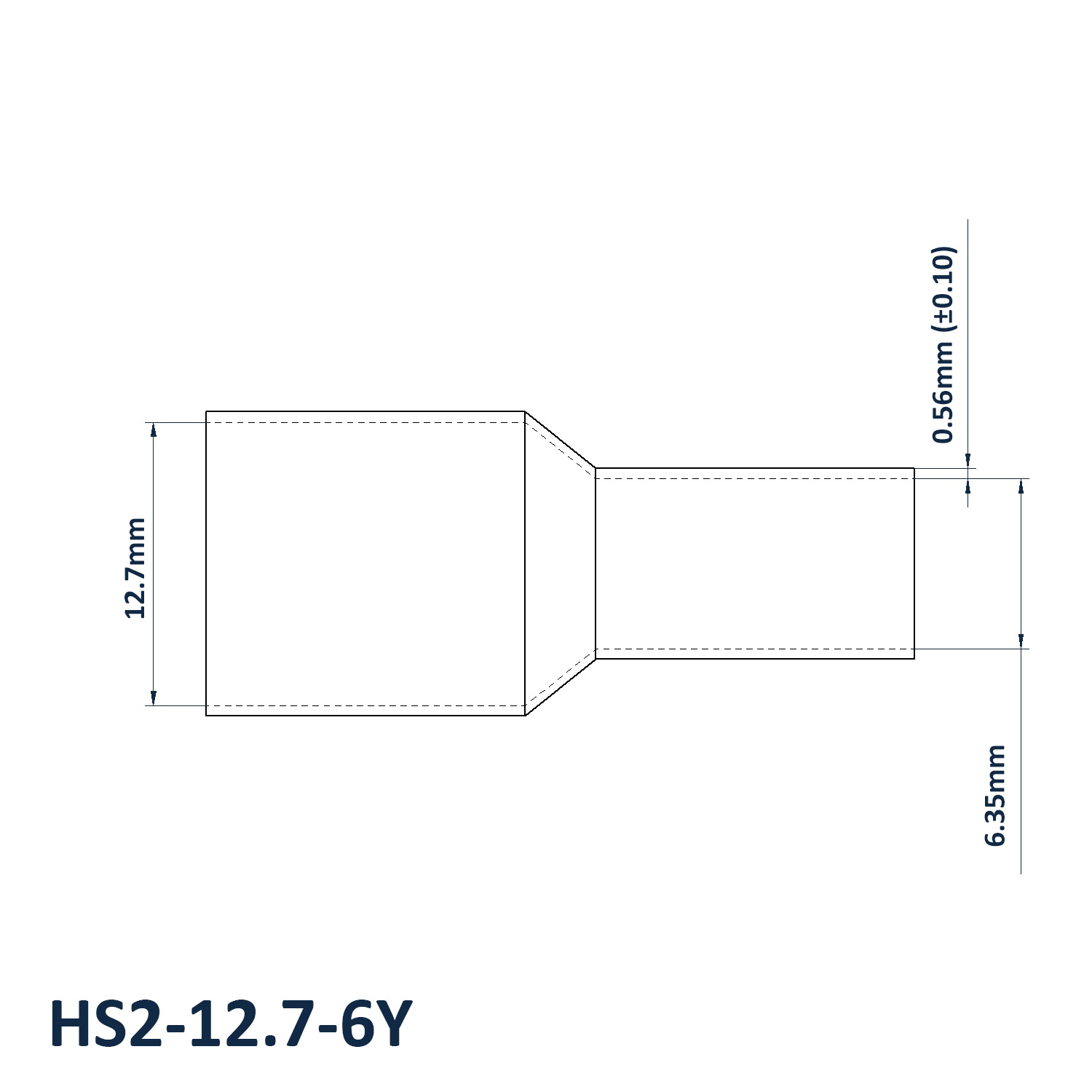

12.7mm x 6m Yellow Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 12.7mm
- Recovered Internal Diameter: 6.35mm
- Colour: Yellow
- Length: 6m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
Apply heat evenly around the sleeve rather than from one side only, as this helps the material recover more consistently around the cable.
Related Heat Shrink Products
For installations where a sleeve alone is not enough, consider Adhesive Lined Heatshrink. For terminating exposed cable ends, view our Heat Shrink Caps range.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
If you are unsure whether a standard sleeve, adhesive lined heatshrink or heat shrink cap is the best option, call 01233 713581 and our team can help you choose the right range.
