Heavy Duty Handle - 210mm

Heavy Duty Handles ( 195kg Weight Rating) – 210mm – 232mm Length – Reinforced Nylon & Aluminium | Vital Parts – HAND150

Our Heavy Duty Handles are engineered for demanding industrial environments and are ideal for manufacturing machinery and robust enclosures. Designed with strength and practicality in mind they provide a reliable grip with a durable matt finish.

What are Heavy Duty Handles?

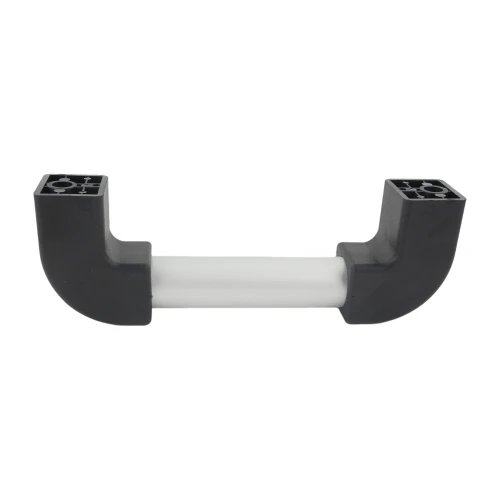

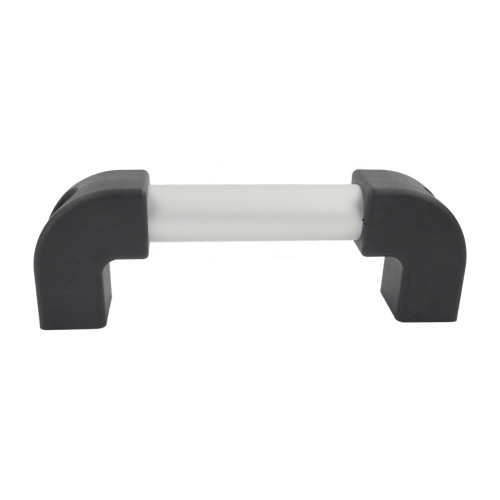

Heavy Duty Handles are large format grab handles built to withstand frequent use and higher loads. This design features a reinforced nylon body with a central aluminium tube that can be cut to size to achieve a permanent width adjustment, making them versatile for custom installations.

Key Features:

• Reinforced Nylon PA6 with 15% glass fill for increased strength
• Central aluminium tube can be cut to adjust width permanently

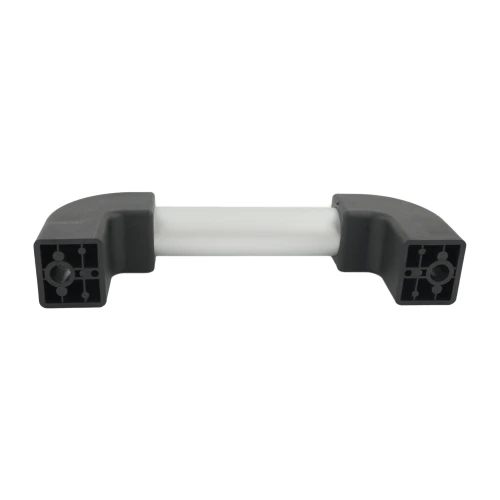

• Removable nylon end caps with 10mm plain moulded bores
• Fixes from above using M10 bolts
• Hard wearing matt surface for improved grip
• UL 94 HB flammability rating

Key Applications and Industries

Suitable for heavy doors, industrial cabinets, machinery access points, plant enclosures and equipment where a robust handhold is required across UK manufacturing and maintenance settings.

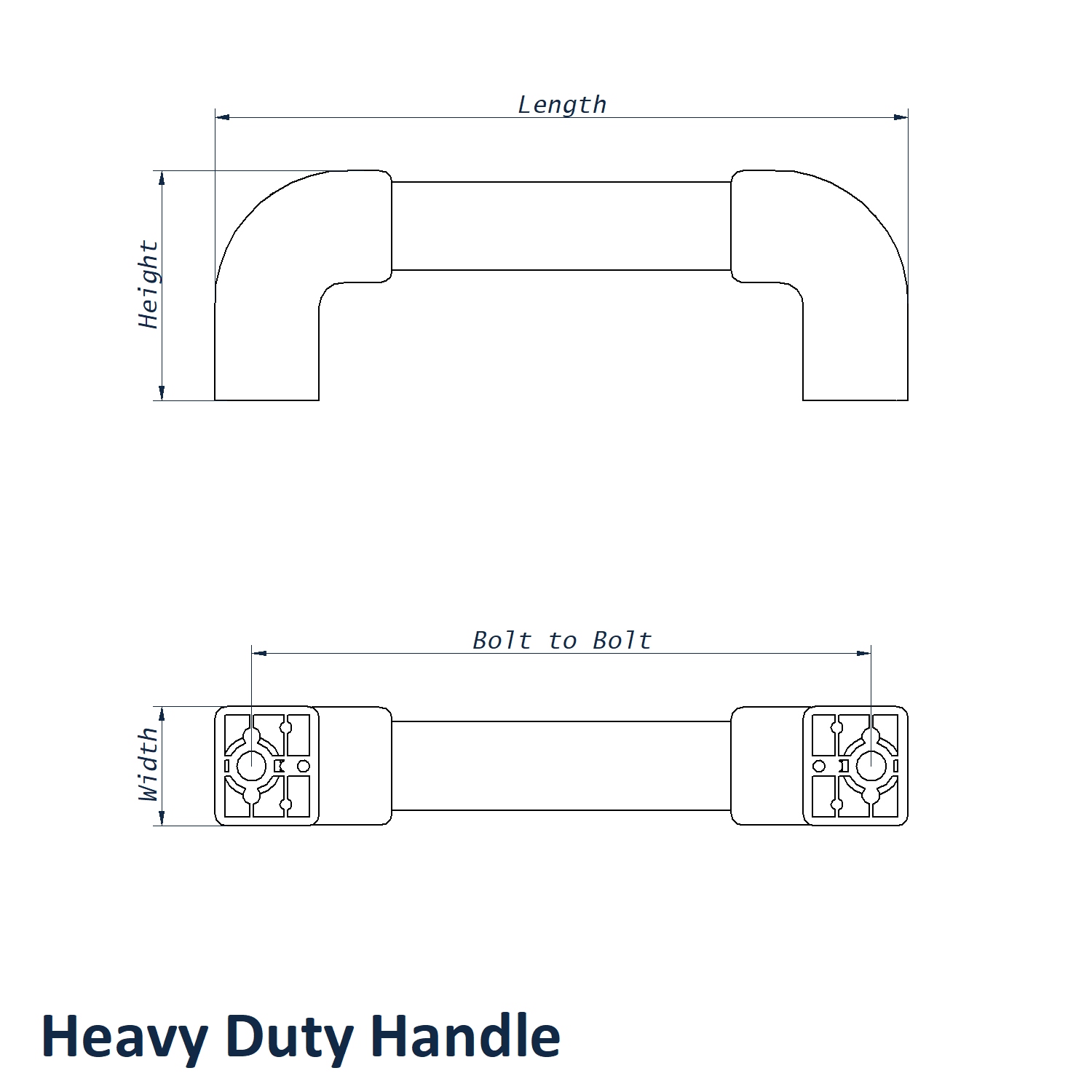

Technical Specifications

• Length: 232mm
• Width: 41mm
• Height: 78mm
• Bolt to Bolt: 210mm
• Thread / Bore Size: 10mm
• Weight Rating: 195kg
• Material: Reinforced Nylon PA6 (15% glass filled) with aluminium tube
• Finish: Matt black nylon with aluminium core
• Fixing Type: From above with M10 bolts
• Bore Diameter: 10mm plain moulded bores in end caps
• Adjustability: Width can be trimmed by sawing the aluminium tube
• Flammability: UL 94 HB rated

Handle Benefits:

• Heavy duty performance for industrial use
• Customisable width to suit door or panel spacing
• Secure grip with a durable matt texture
• Simple top fixing for rapid installation

How do I maintain these Handles?

We would recommend using a soap product which has a pH of between 6-8 and does not contain chlorine; ensuring that any soap residue is thoroughly rinsed with water afterwards. This handle can be deconstructed by removing the two end caps for thorough cleaning.

Why Buy from Vital Parts?

At Vital Parts we supply high quality industrial handles designed for reliable performance and easy installation. These Heavy Duty Handles offer long service life with the flexibility to tailor the width for your application.

• Fast UK delivery on stocked options
• Consistent quality with compliant materials
• Expert support to help specify the correct handle

If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
