M6 x 25mm Heavy Duty (Tilting) Feet (100kg Weight Rated) 47.5mm Base
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.14 | £1.37 |
| 100 - 249 | £1.00 | £1.20 |
| 250 - 499 | £0.88 | £1.05 |
| 500 - 999 | £0.75 | £0.90 |
| 1000 + | £0.65 | £0.78 |
Product Specification
| Thread Size | M6 |
| Base Diameter | 47.5mm |
| Base Height | 20mm |
| Weight Rating | 100kg |
| Tilt Angle | 20º |
| Colour | Black |
| Material | Steel Stud & Polyamide |
| Thread Length | 25.0mm |
Frequently Bought Together
Total Price: £0.00
M6 x 25mm Heavy Duty Tilting Foot | 100kg Weight Rated | 47.5mm Base Diameter | Steel Stud & Polyamide
These M6 x 25mm heavy duty machine feet are a strong choice for automation guarding frames where perimeter guards where reliable foot contact keeps panels aligned.
A 47.5mm base diameter helps spread load below the frame and the 25mm thread length provides adjustment range for setting equipment height during installation. Used across equipment builds and refurbishment work, the design supports repeatable set-up and straightforward height correction.
Common Applications
- OEM equipment manufacture using repeatable support components
- Modular aluminium frames needing threaded levelling feet
- Industrial enclosure stands fitted around production equipment
- Bespoke machinery bases requiring load rated adjusters

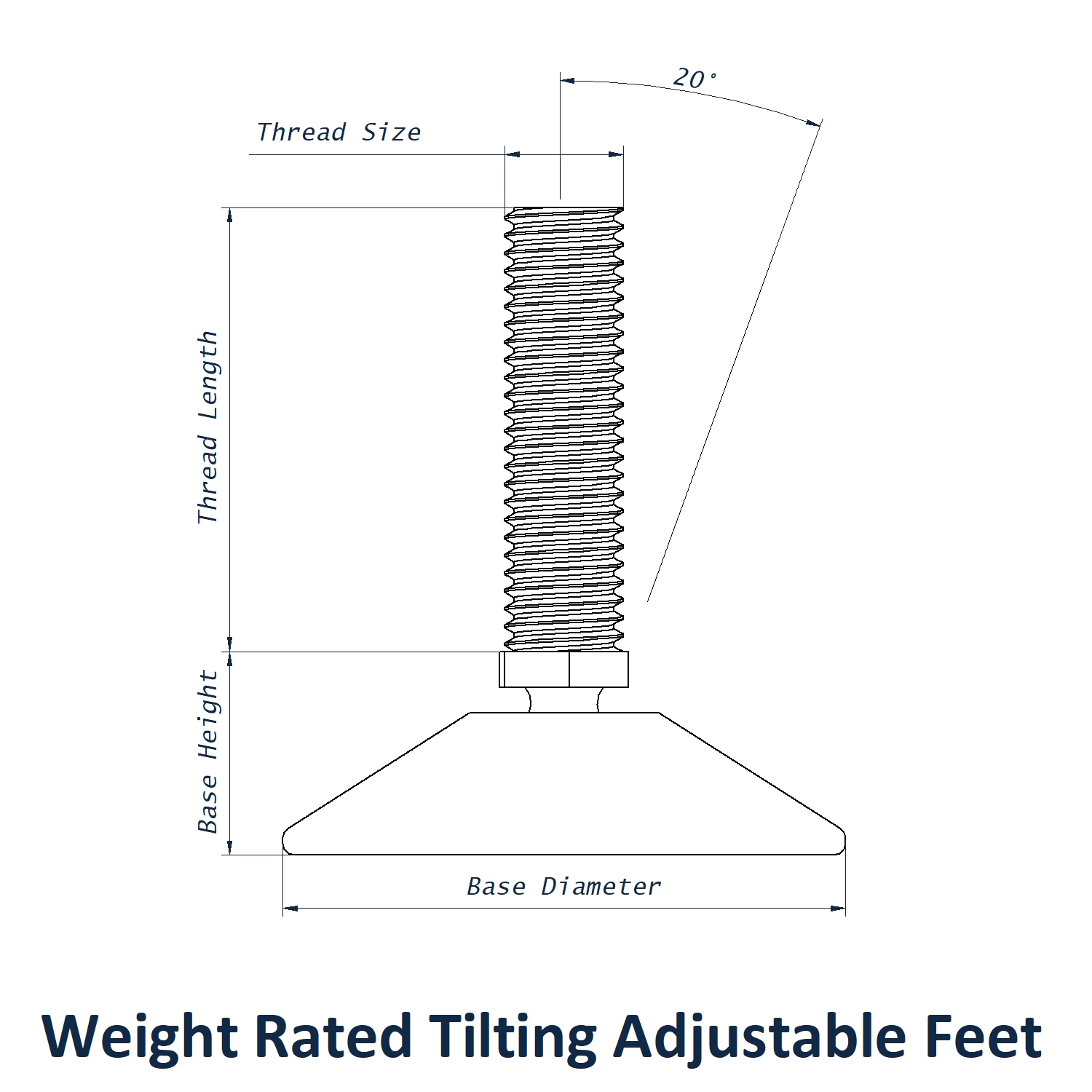

M6 x 25mm Heavy Duty Tilting Foot Dimensions
- Base Diameter: 47.5mm
- Thread Size: M6
- Thread Length: 25mm
- Base Height: 20mm
- Tilt Angle: 20º
- Weight Rating: 100kg
- Colour: Black
- Material: Steel Stud & Polyamide
Commonly Paired with Articulated Feet - E Nuts for a secure fit
Perfect for tilting or articulated adjustable feet, E Nuts use a self-locking design to help prevent loosening and increase grip in soft woods. They are ideal for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full Heavy Duty Tilting Feet range for more heavy duty levelling feet, tilting adjustable feet and load rated support options.
