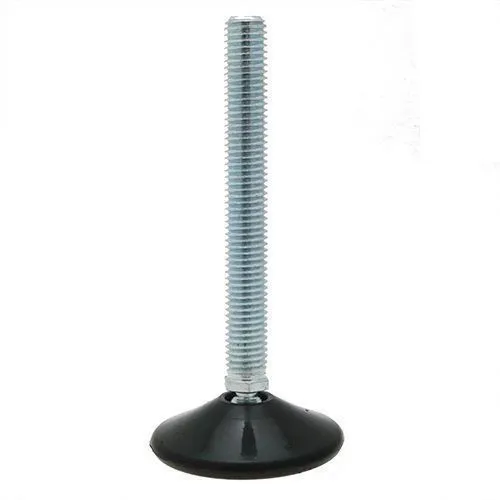

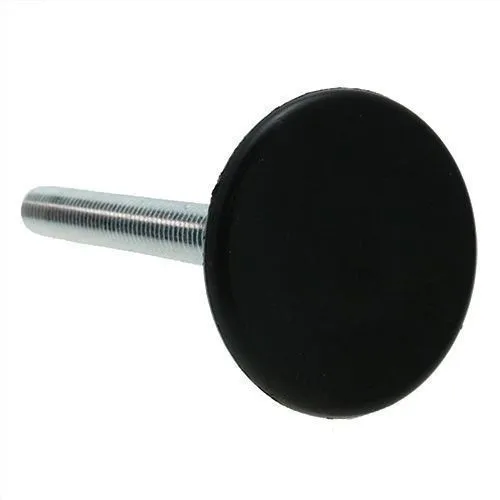

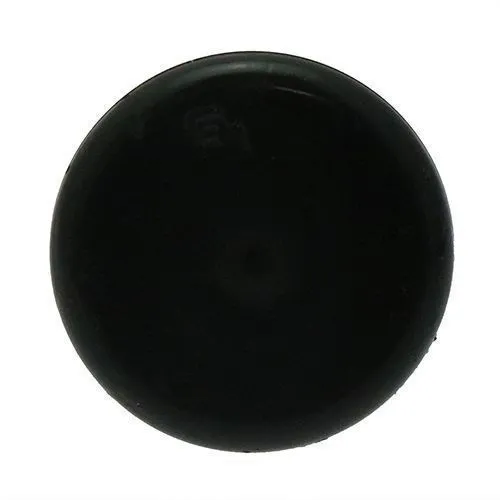

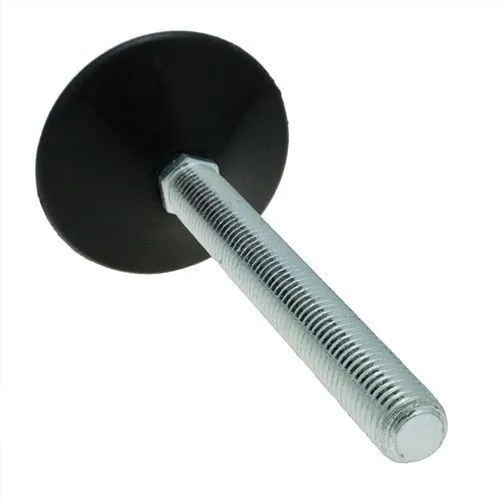

M8 x 25mm Heavy Duty (Tilting) Feet (100kg Weight Rated) 47.5mm Base
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.15 | £1.38 |
| 100 - 249 | £1.00 | £1.20 |
| 250 - 499 | £0.87 | £1.04 |
| 500 - 999 | £0.76 | £0.91 |
| 1000 + | £0.66 | £0.79 |
Product Specification
| Thread Size | M8 |
| Base Diameter | 47.5mm |
| Base Height | 20mm |
| Weight Rating | 100kg |
| Tilt Angle | 20º |
| Colour | Black |
| Material | Steel Stud & Polyamide |
| Thread Length | 25.0mm |
Frequently Bought Together
Total Price: £0.00
M8 x 25mm Heavy Duty Tilting Foot | 100kg Weight Rated | 47.5mm Base Diameter | Steel Stud & Polyamide
These M8 x 25mm load rated adjustable feet help manufacturing jigs stay aligned when the floor surface is not completely level.
A clear thread size and thread length make it easier to select compatible fixings, inserts or mounting points during design and installation. This version is useful where a load rated levelling foot must combine strength, articulation and a clean floor contact point.
Common Applications
- CNC auxiliary tables and machine-side support frames
- Printing machinery accessories where alignment matters
- Process equipment around handling or finishing lines
- Metalworking support stands used on imperfect floors

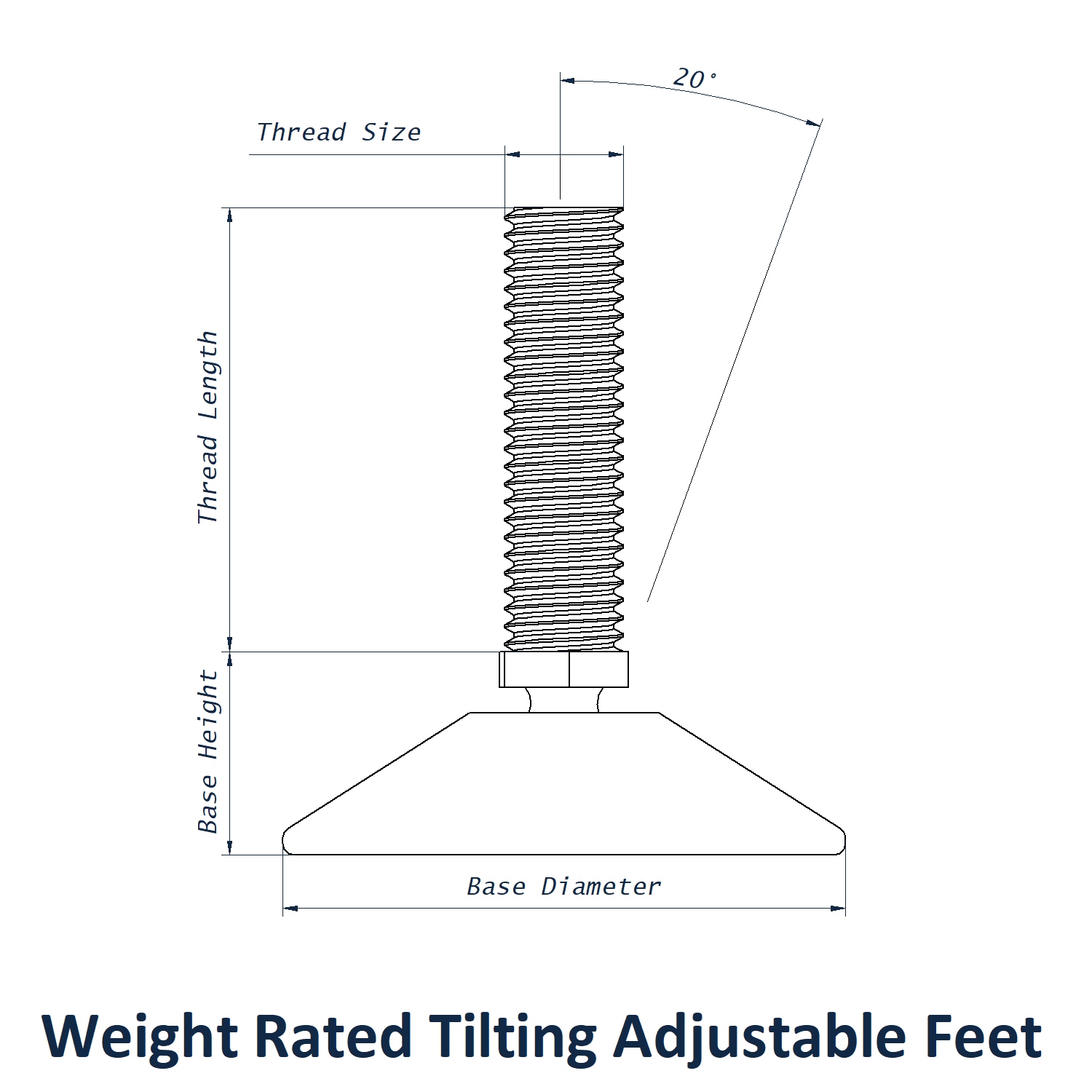

M8 x 25mm Heavy Duty Tilting Foot Dimensions
- Base Diameter: 47.5mm
- Thread Size: M8
- Thread Length: 25mm
- Base Height: 20mm
- Tilt Angle: 20º
- Weight Rating: 100kg
- Colour: Black
- Material: Steel Stud & Polyamide
Commonly Paired with Articulated Feet - E Nuts for a secure fit
Perfect for tilting or articulated adjustable feet, E Nuts use a self-locking design to help prevent loosening and increase grip in soft woods. They are ideal for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full Heavy Duty Tilting Feet range for more heavy duty levelling feet, tilting adjustable feet and load rated support options.
