Polyester Discs - HID012

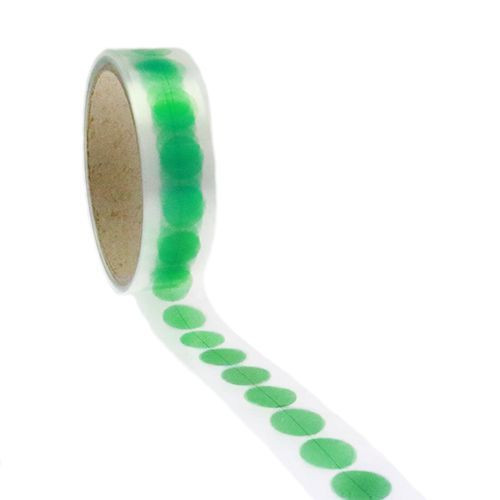

High Temp Polyester Discs – 14mm Disc Diameter & 2500 Discs per roll | Vital Parts – HID012

Our High Temp Polyester Discs are a durable and versatile masking solution designed to withstand extreme heat during powder coating, e-coating, anodising, and industrial painting. These discs offer a clean, precise finish by masking off round or irregular areas without wrinkling or lifting under thermal stress. Commonly known as die-cut polyester discs, they are crafted from high-performance green polyester film and backed with a silicone adhesive for clean removal post-curing.

What are High Temp Polyester Discs?

High Temp Polyester Discs are circular die-cut shapes made from the same high-grade polyester film used in industrial masking tapes. Designed for use in high-temperature finishing environments, these discs provide excellent resistance to temperatures up to 220°C. They feature a low tack silicone adhesive that ensures a residue-free release, even after extended exposure to heat during baking or curing. Their robust construction makes them suitable for precise masking of bolts, threads, contact points, or complex features on metal and plastic components.

We also offer a range of High Temp Polyimide Discs

Key Features:

• Made from heat-resistant green polyester film
• Withstands temperatures up to 220°C
• Low tack silicone adhesive for clean removal
• Pre-cut circular design for easy and consistent application
• No wrinkling, curling or adhesive bleed under heat
• Ideal for powder coating, e-coating and industrial painting
• Available in sizes from 3mm to 150mm diameter
• Custom shapes and sizes available on request

Key Applications and Industries

In the UK market, High Temp Polyester Discs are used widely in finishing and manufacturing operations where heat-resistant masking is critical. These discs are commonly applied in powder coating plants for masking off threads and holes prior to baking. Electronics and electrical manufacturers rely on them for insulating contact points during soldering or wave processes. Automotive and aerospace sectors use them during multi-stage finishing where masking accuracy and residue-free removal are essential. Their fast, uniform application also benefits high-volume production lines requiring consistent masking performance.

Technical Specifications

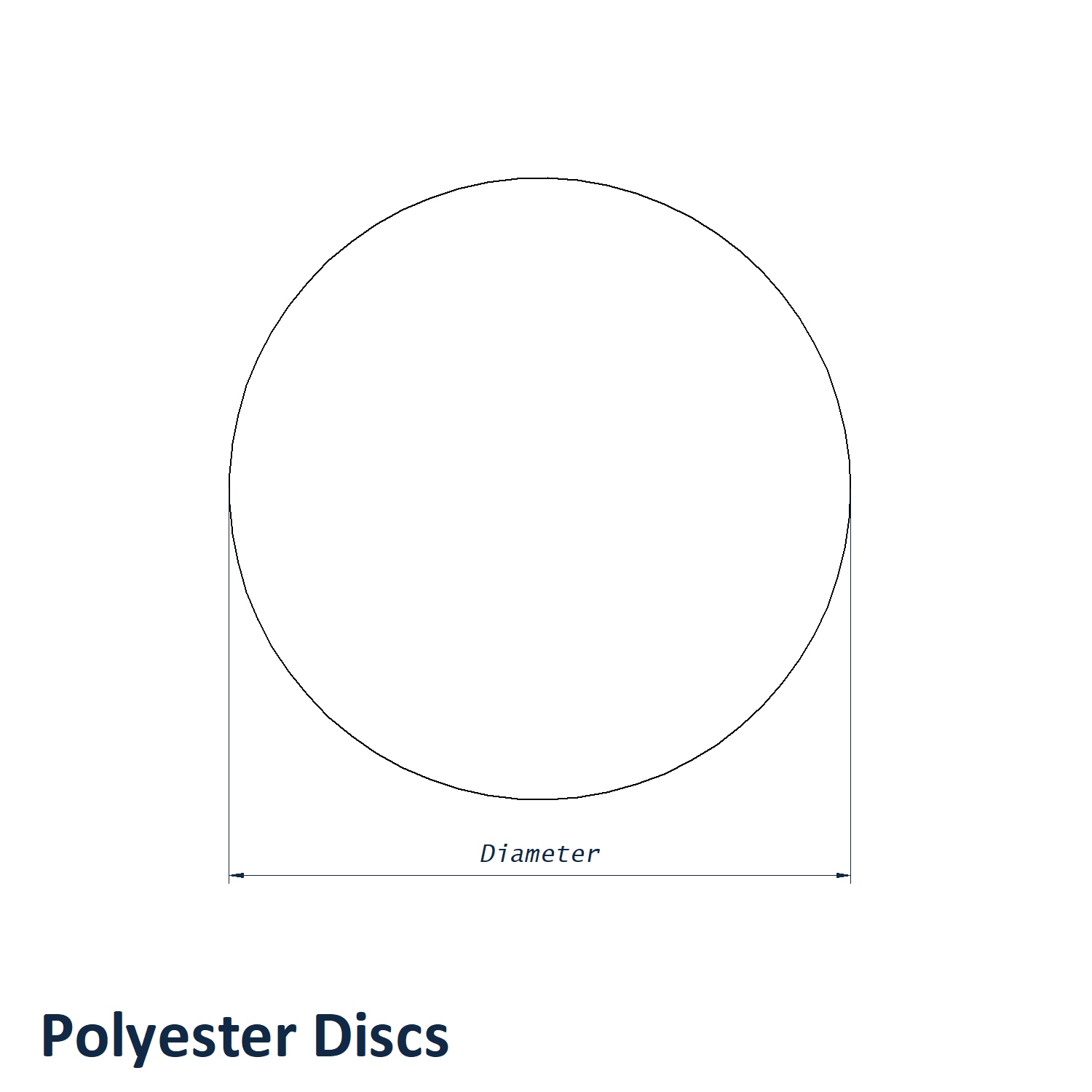

• Disc Diameter : 14mm
• Discs Per Roll : 2500
• Material: Green polyester film
• Adhesive Type: Silicone (low tack)
• Max Temperature: 220°C
• Disc Sizes: Standard 3mm – 150mm
• Adhesion Strength: Approx. 1.5 N/cm to metal
• Customisation: Available on request (shapes, widths, and materials)
• Colour: Green for high visibility
• Format: Supplied on rolls for easy dispensing

Our High Temp Polyester Discs are ideal for:

• Powder coating and e-coating applications
• High-temperature masking during anodising or paint curing
• Precision masking of holes, bolts, rivets, and terminals
• Use in cleanroom or electronics assembly environments
• Any process requiring fast, repeatable, circular masking

Benefits:

• Withstands high heat without adhesive failure
• Clean removal with no residue or surface damage
• Saves time with quick peel-and-place application
• Improves masking accuracy and finish quality
• Reduces rework and material waste in production
• Flexible customisation to suit any masking requirement

Why Choose Vital Parts?

Vital Parts is a trusted UK supplier of premium fasteners and industrial components, dedicated to delivering a customer-focused service with the following advantages:

• Same-Day Dispatch: Prompt and dependable shipping to keep your projects moving.
• Competitive Trade Pricing: Save more with discounted rates on bulk purchases.
• Expert Technical Support: Get guidance from our experienced team for choosing the right products and applications.

If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
