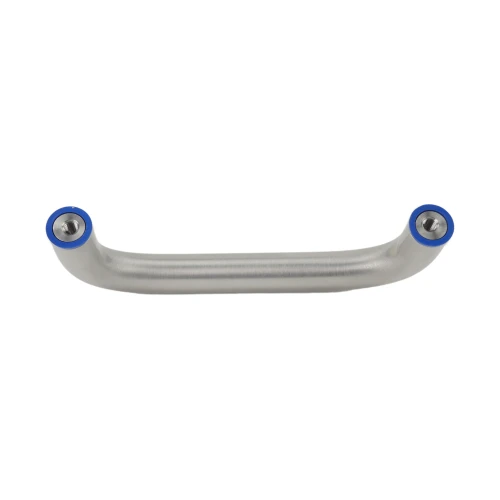

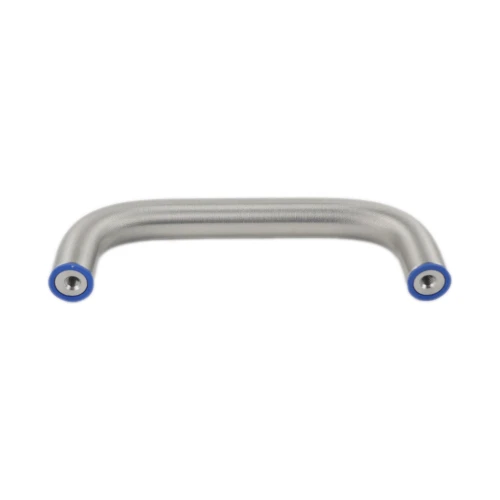

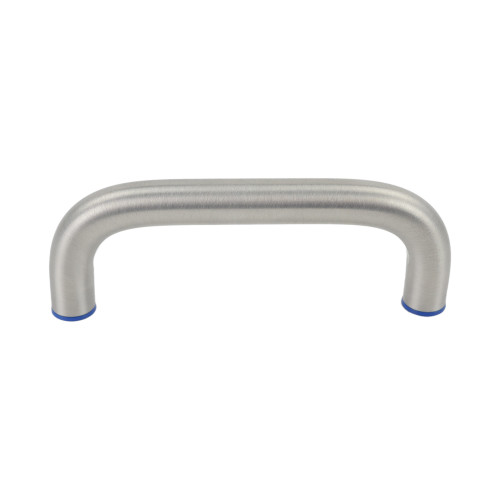

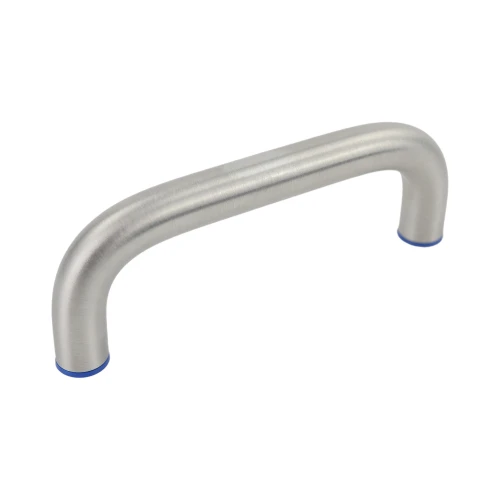

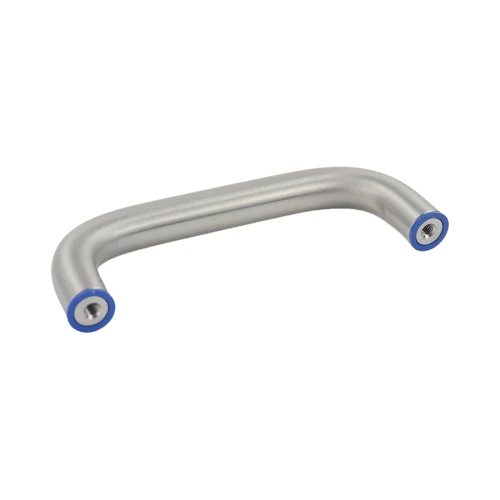

Hygienic Bridge Handle - 200mm

Hygienic Bridge Handles – 200mm – 216mm length - A4 Stainless Steel | Vital Parts – HAND244

Our Hygienic Door Handles are designed for environments where cleanliness and durability are critical, including food manufacturing, hospitals, veterinary practices and dental surgeries. Manufactured from corrosion resistant stainless steel with blue NBR hygienic seals, they block water ingress and help prevent bacteria entering the fixing hole.

What are Hygienic Bridge Handles?

The Hygienic Handle is a stainless steel grab handle with integrated elastomer seal for sanitary applications. The smooth geometry and sealed interfaces support effective wash down and reduce dirt traps on equipment and enclosures.

Key Features:

• Stainless steel construction for corrosion resistance
• Blue NBR rubber seals to block water and contaminants
• Smooth, easy clean design for hygienic areas
• Available with M4, M5 and M6 threads
• Suitable for frequent wash down routines

Key Applications and Industries

Ideal for clinical environments and sanitary production lines, including food processing machinery, medical trolleys, laboratory cabinetry, pharmaceutical equipment and clean room enclosures across the UK market.

Installation

Fasten from below using the relevant sized bolt or screw to match the selected thread. Hygienic Hex Head Screws with NBR seal are also available in stainless steel for a consistent sanitary fixing.

Maintenance

This handle can be washed down with water to clean it. Commercial sanitising solutions may be used; always follow the manufacturer’s instructions to ensure compatibility with stainless steel and NBR seals.

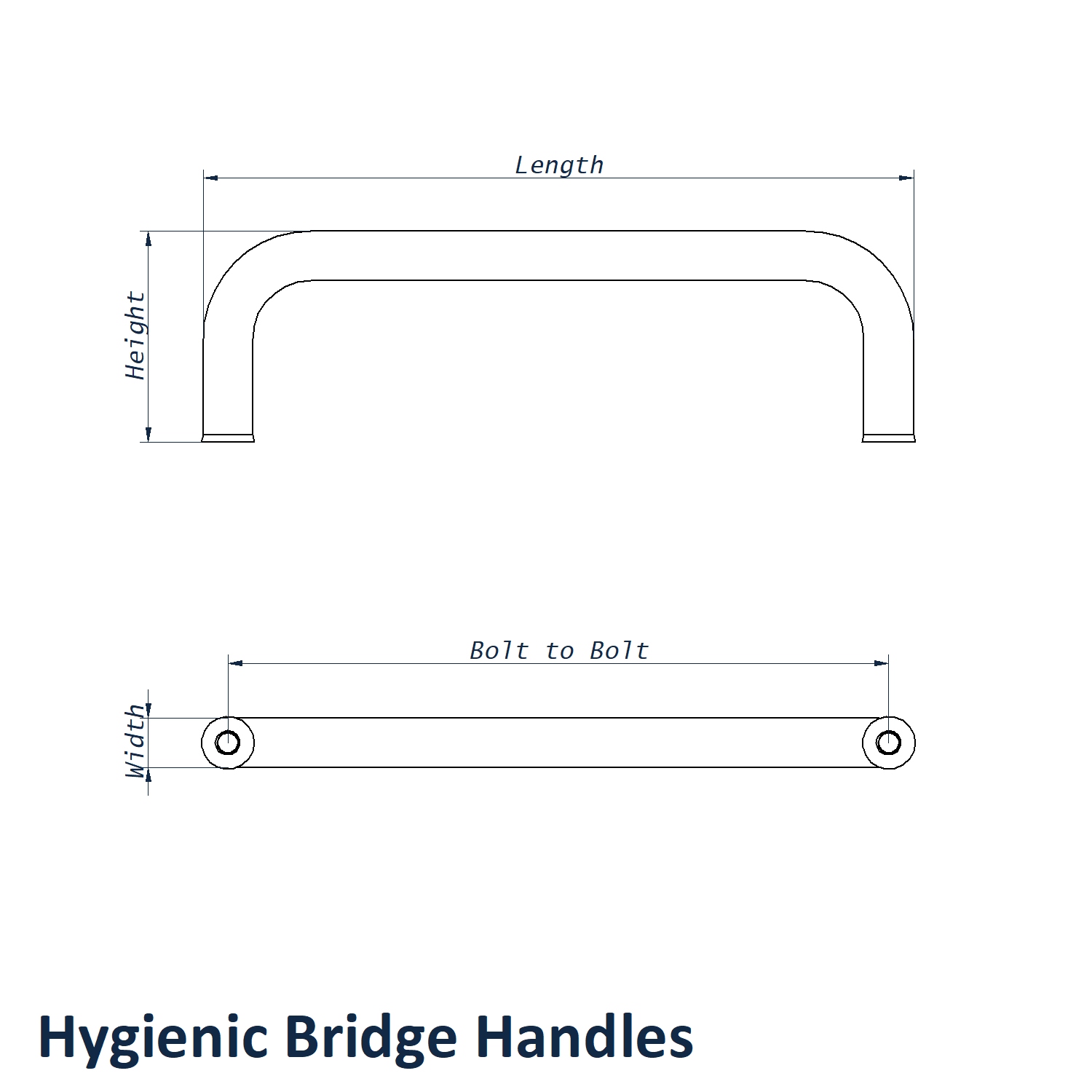

Technical Specifications

• Length: 216mm
• Width: 16mm
• Height: 60mm
• Bolt to Bolt: 200mm
• Thread /Bore Size: M6
• Material: A4 Stainless Steel
• Seal Material: Blue NBR rubber
• Tensile Strength: 505 MPa
• Fixing Method: Fasten from below
• Compliance: RoHS, REACH, Conflict Materials and California Prop 65
• Properties: Corrosion resistant, easy to clean

Benefits:

• Hygienic sealed design supports contamination control
• Corrosion resistant for long service life
• Fast, simple installation with common thread sizes
• Smooth finish for efficient cleaning
