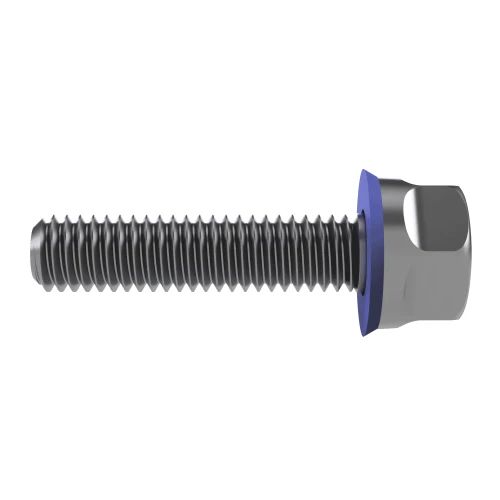

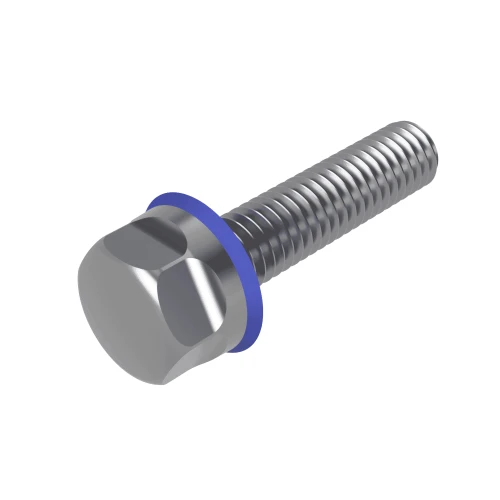

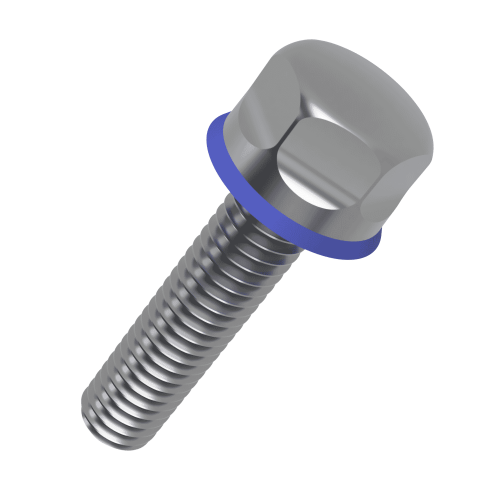

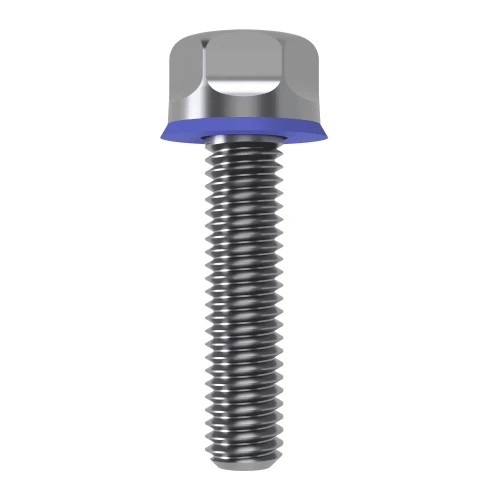

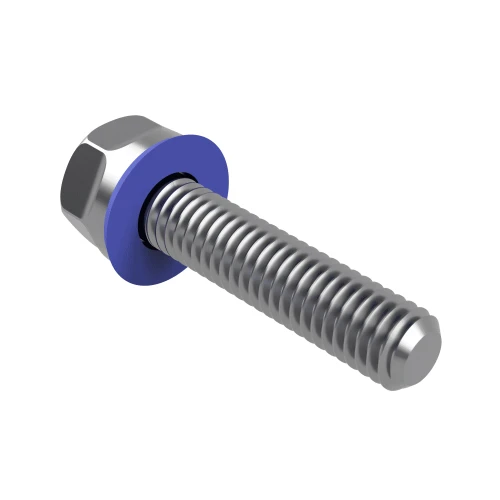

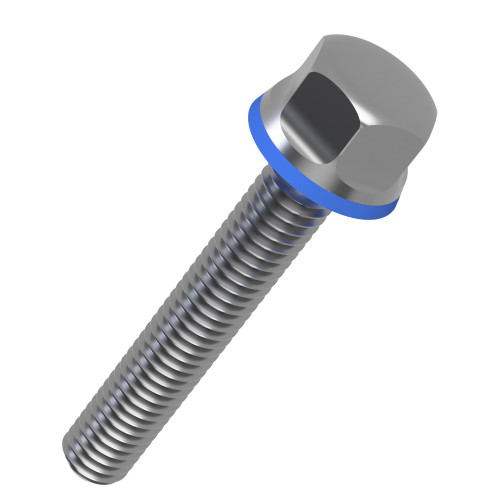

M24 x 60mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £82.92 | £99.50 |
| 25 - 49 | £69.09 | £82.91 |
| 50 - 99 | £55.27 | £66.33 |
| 100 - 499 | £48.37 | £58.04 |
| 500 + | £46.43 | £55.72 |
Product Specification
| Size | M24 |
| Length | 60mm |
| Pitch | 3.00mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 36mm |
| Head Height | 22.0mm |
| Flange Diameter | 46.08mm |
Frequently Bought Together
Total Price: £0.00
M24 x 60mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M24 x 60mm Hygienic Hex Head Screw is a practical choice for OEM builds that require a metric hygienic bolt with marine grade stainless steel and a seal beneath the head. With a 3.00mm pitch, 36mm across flats and A4 Stainless Steel construction, it suits OEM hygienic assemblies where consistent dimensions make repeat installation easier across manufactured units.
This format suits engineers who need a hygienic hex head screw that can be tightened with standard tooling while presenting a cleaner top-side finish. The NBR seal supports dependable seating against prepared surfaces and is commonly chosen for equipment exposed to light oils or regular handling. The 60mm length is suited to bespoke stainless frames and production enclosures, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Production line cover plates
- Industrial cleaning station equipment
- Pharmaceutical production equipment
- Packaging machine inspection panels

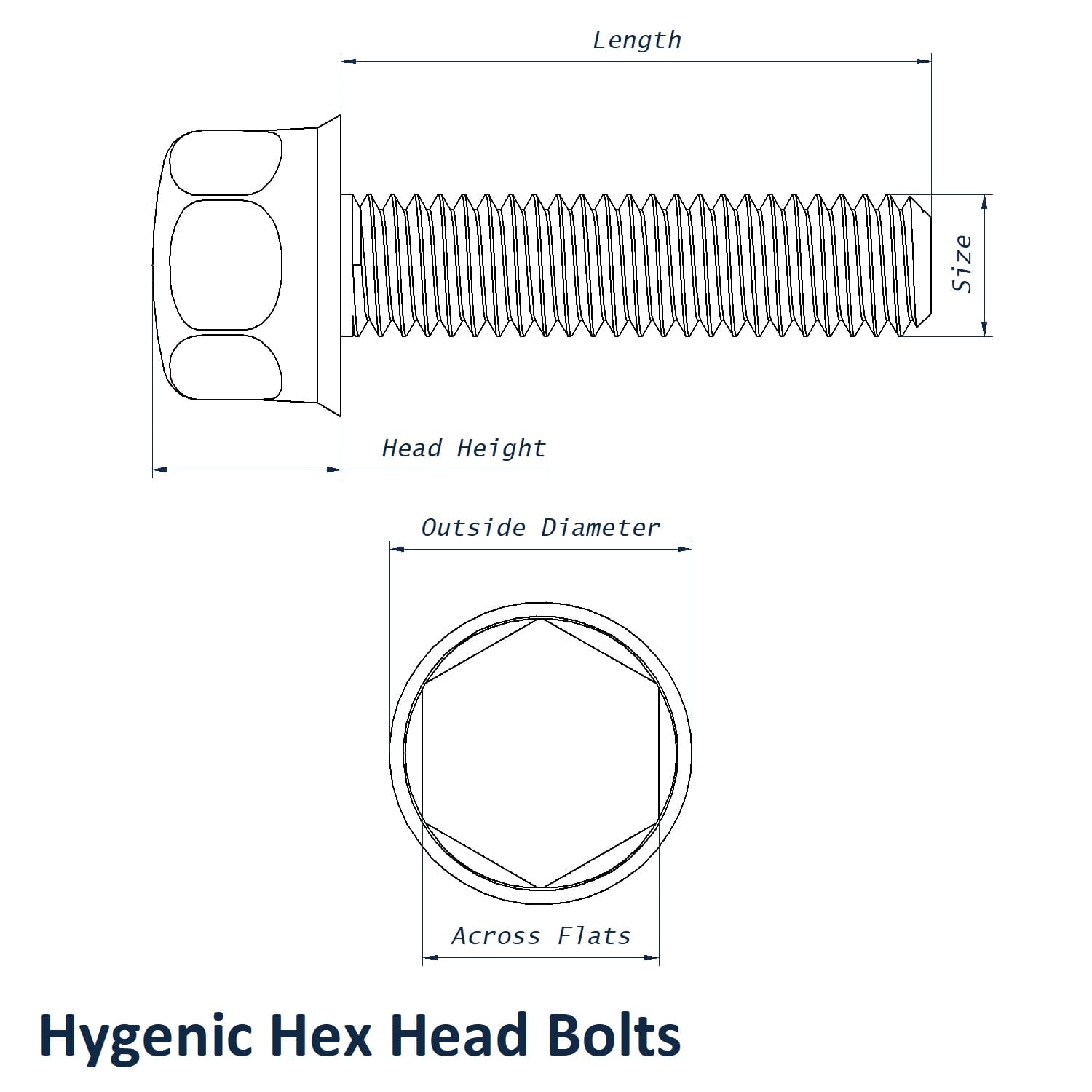

M24 x 60mm Hygienic Hex Head Screw Dimensions
- Size: M24
- Length: 60mm
- Pitch: 3.00mm
- Across Flats: 36mm
- Head Height: 22mm
- Flange Diameter: 46.08mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
For a cleaner fastening assembly on through-bolted panels, combine this screw with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
Explore our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
