M5 x 12mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £15.53 | £18.63 |
| 25 - 49 | £12.93 | £15.52 |
| 50 - 99 | £10.35 | £12.42 |
| 100 - 499 | £9.06 | £10.87 |
| 500 + | £8.69 | £10.43 |
Product Specification
| Size | M5 |
| Length | 12mm |
| Pitch | 0.80mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 8mm |
| Head Height | 6.5mm |
| Flange Diameter | 11.46mm |
Frequently Bought Together
Total Price: £0.00

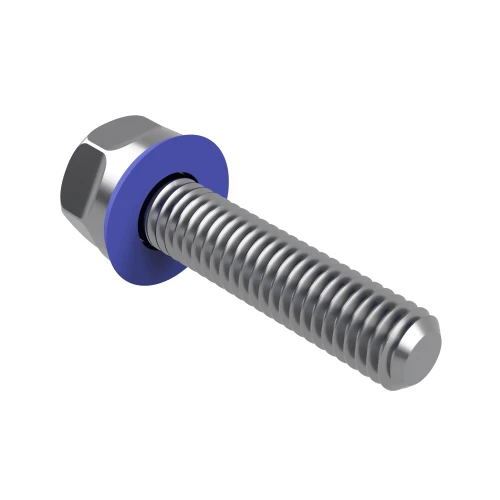

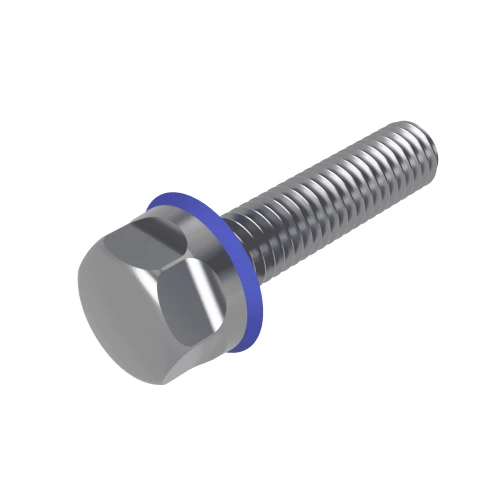

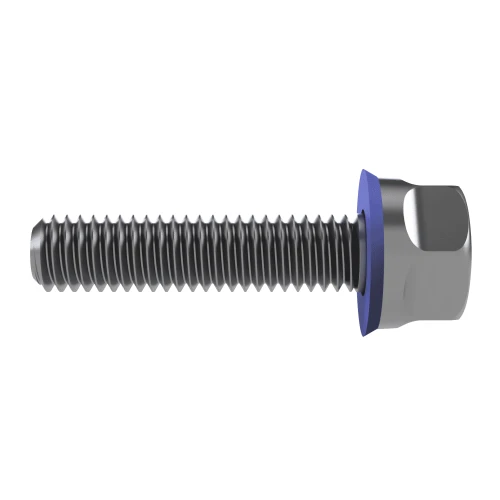

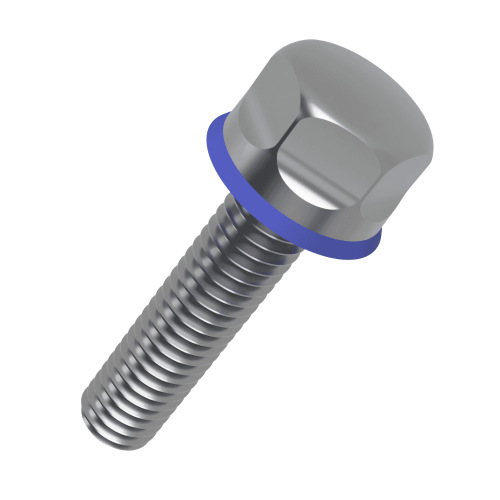

M5 x 12mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal
This M5 x 12mm Hygienic Hex Head Screw supports reliable fastening in washdown equipment, food-safe machinery areas and stainless structures where the screw head remains visible. With a 0.80mm pitch, 8mm across flats and A4 Stainless Steel construction, it suits marine food handling areas where marine grade stainless steel gives added resistance in demanding environments.
A4 stainless steel gives this fixing the corrosion resistance expected for exposed stainless equipment. The EPDM seal is a strong option for washdown areas, outdoor exposure and cleaning routines where resistance to water and weathering is important. The 12mm length is suited to A4 stainless fixtures and exposed equipment, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Medical equipment housings
- Meat processing machinery guards
- Splash-zone frame assemblies
- Commercial catering equipment frames

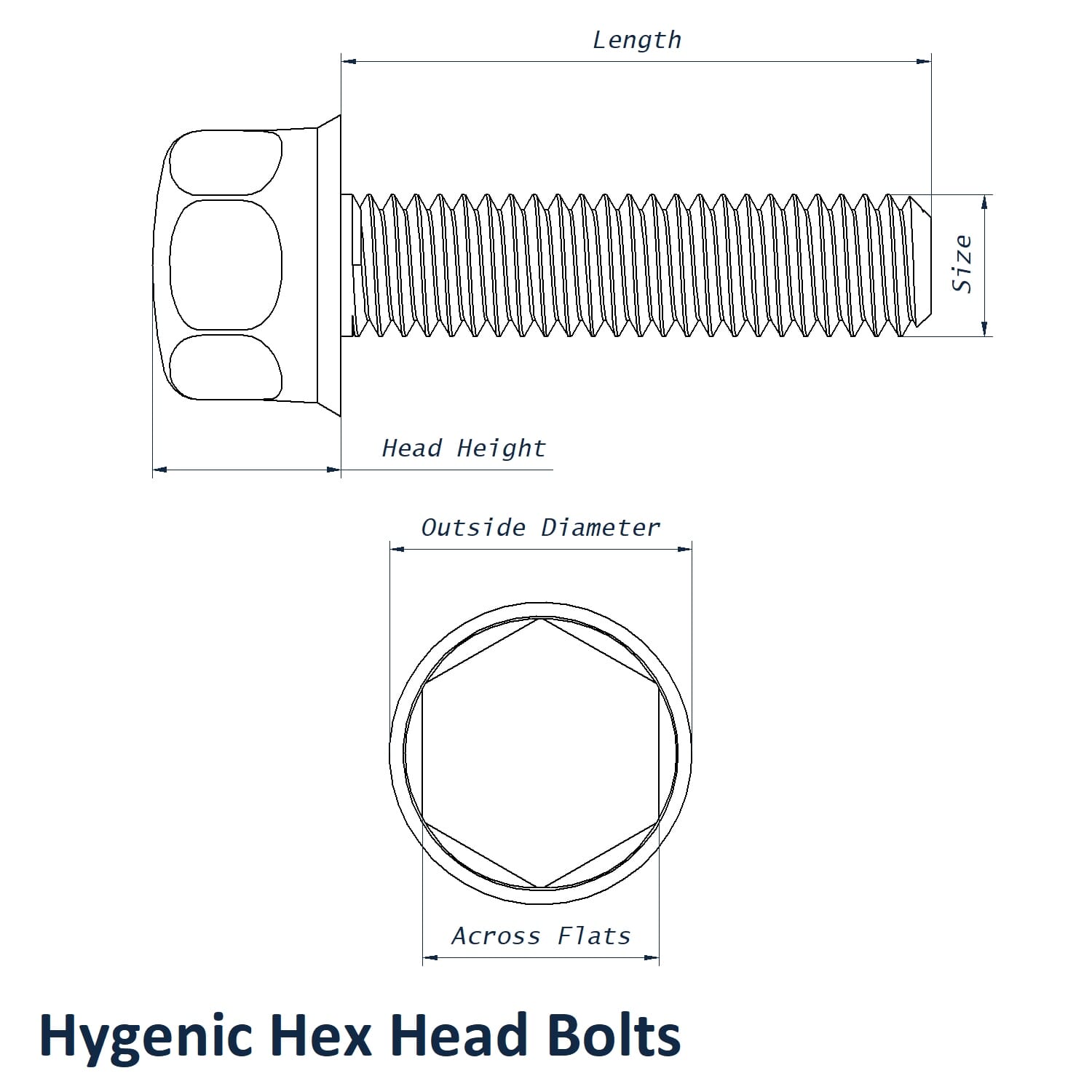

M5 x 12mm Hygienic Hex Head Screw Dimensions
- Size: M5
- Length: 12mm
- Pitch: 0.80mm
- Across Flats: 8mm
- Head Height: 6.5mm
- Flange Diameter: 11.46mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
Where a matching enclosed nut is required on the reverse side of the fixing, use Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
View our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
