M6 x 20mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £14.39 | £17.27 |
| 25 - 49 | £11.99 | £14.39 |
| 50 - 99 | £9.59 | £11.51 |
| 100 - 499 | £8.39 | £10.07 |
| 500 + | £8.06 | £9.67 |
Product Specification
| Size | M6 |
| Length | 20mm |
| Pitch | 1.00mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 10mm |
| Head Height | 8.0mm |
| Flange Diameter | 12.77mm |
Frequently Bought Together
Total Price: £0.00
M6 x 20mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal

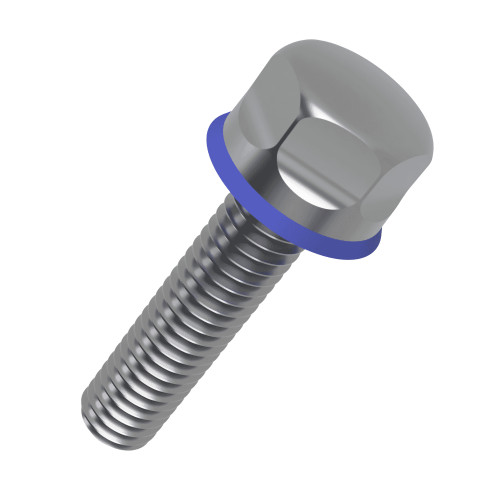

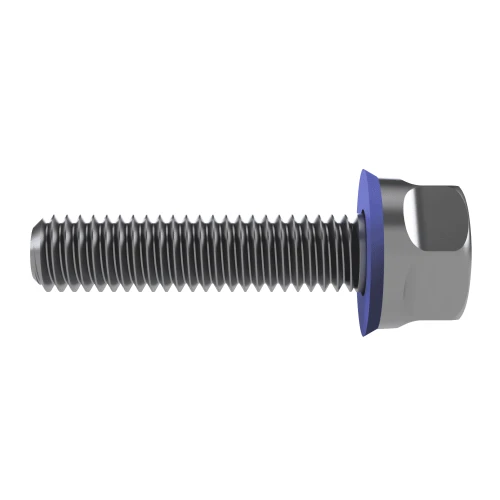

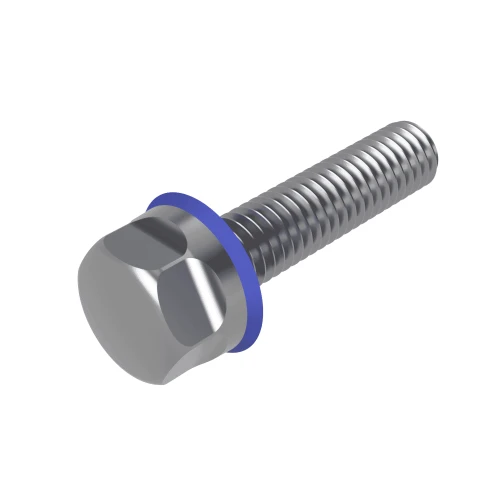

This M6 x 20mm Hygienic Hex Head Screw offers a robust sealed head fixing for areas where exposed standard fasteners are unsuitable for regular cleaning and inspection routines. With a 1.00mm pitch, 10mm across flats and A4 Stainless Steel construction, it suits meat processing equipment where robust sealed fixings suit frequent hygiene inspection.
Its sealed underside is useful where routine wipe-downs, inspection and contamination control are part of the equipment design. The EPDM seal gives this hygienic screw a suitable profile for wet process areas and stainless assemblies that need dependable sealing under the head. The 20mm length is suited to machine covers and conveyor side panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Meat processing machinery guards
- Splash-zone frame assemblies
- Commercial catering equipment frames
- Medical equipment housings

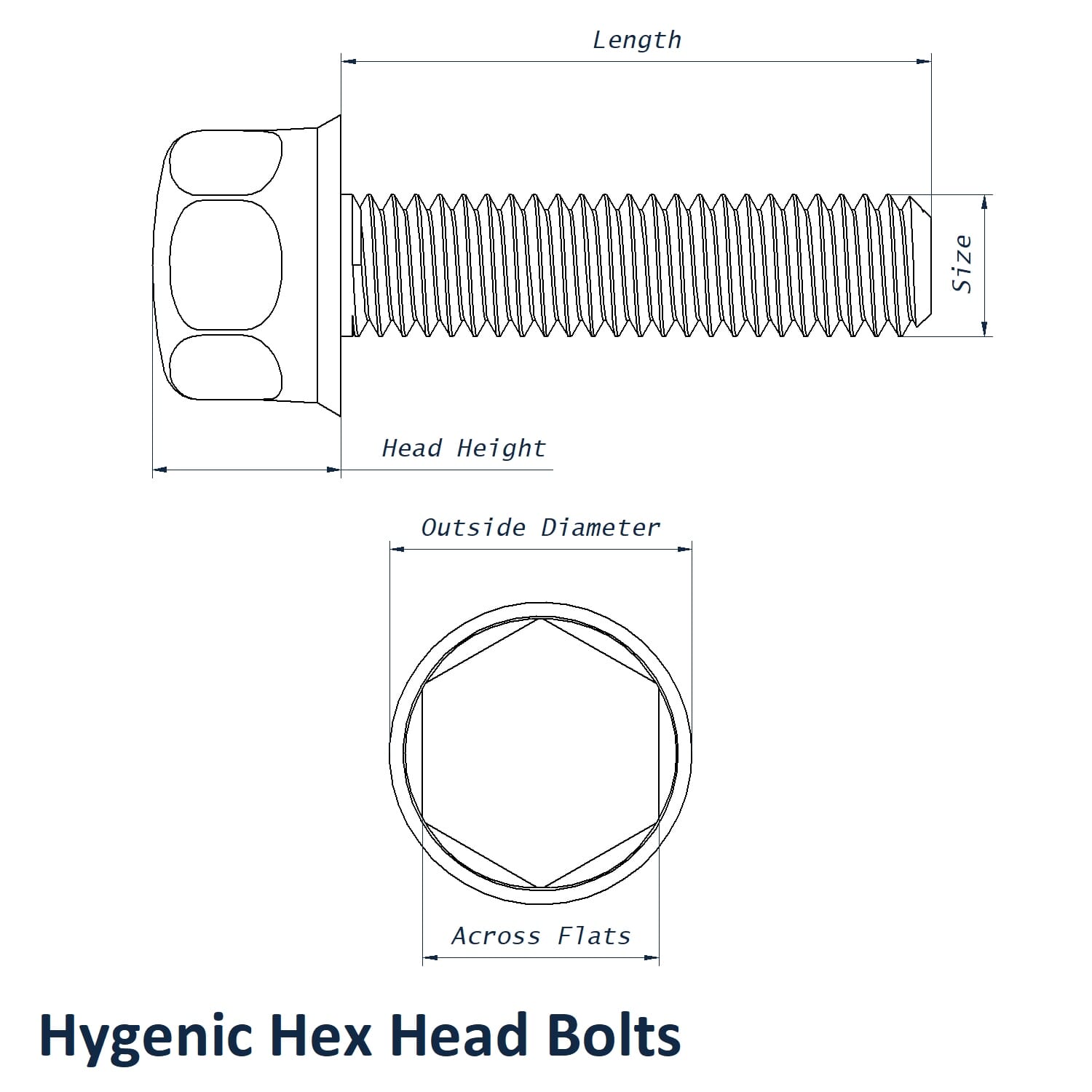

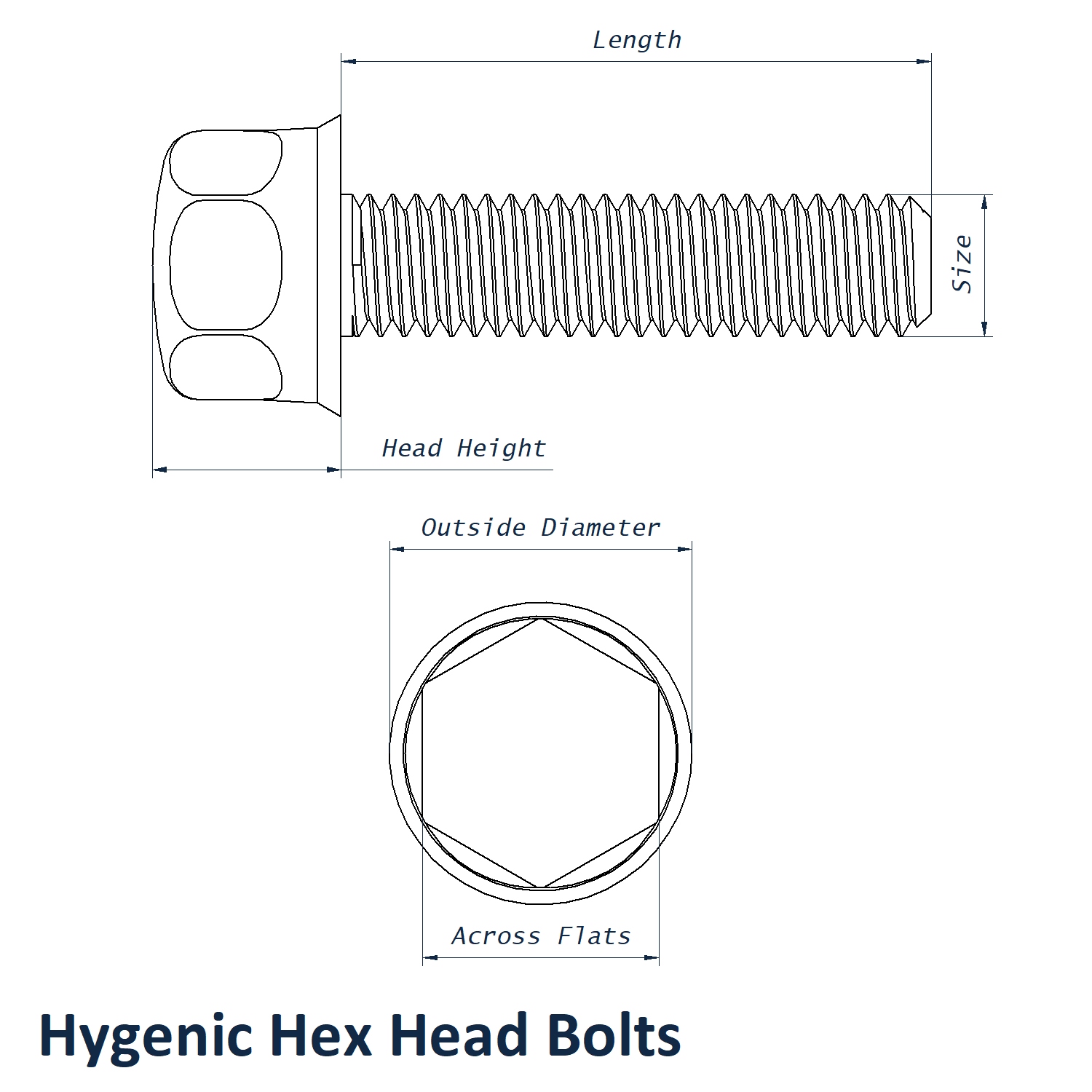

M6 x 20mm Hygienic Hex Head Screw Dimensions
- Size: M6
- Length: 20mm
- Pitch: 1.00mm
- Across Flats: 10mm
- Head Height: 8mm
- Flange Diameter: 12.77mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
For a cleaner fastening assembly on through-bolted panels, combine this screw with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
See the complete Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
