M20 x 100mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £35.87 | £43.04 |
| 10 - 24 | £23.91 | £28.69 |
| 25 - 49 | £17.93 | £21.52 |
| 50 - 99 | £16.74 | £20.09 |
| 100 + | £14.94 | £17.93 |
Product Specification
| Thread Size | M20 |
| Length | 100mm |
| Threaded Length | 46mm |
| Pitch | 2.50mm |
| Head Diameter | 30.0mm |
| Head Height | 11.0mm |
| Drive | H14 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M20 x 100mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
Designed for restricted head clearance, this M20 x 100mm low head socket cap screw provides a compact fixing where a standard cap head would sit too high.
The A2-70 stainless grade provides dependable corrosion resistance for general engineering, machinery and interior or sheltered external applications. The H14 drive accepts a matching Allen key or hex key, helping installers apply torque cleanly in production, servicing and repair work.
Common Applications
- Vehicle body building applications for fixing protective machine covers with M20 thread
- Clamping equipment covers using a 100mm low head stainless fixing
- Automotive assemblies where accurate alignment helps keep covers seated correctly
- Securing access panels where A2 stainless material is specified

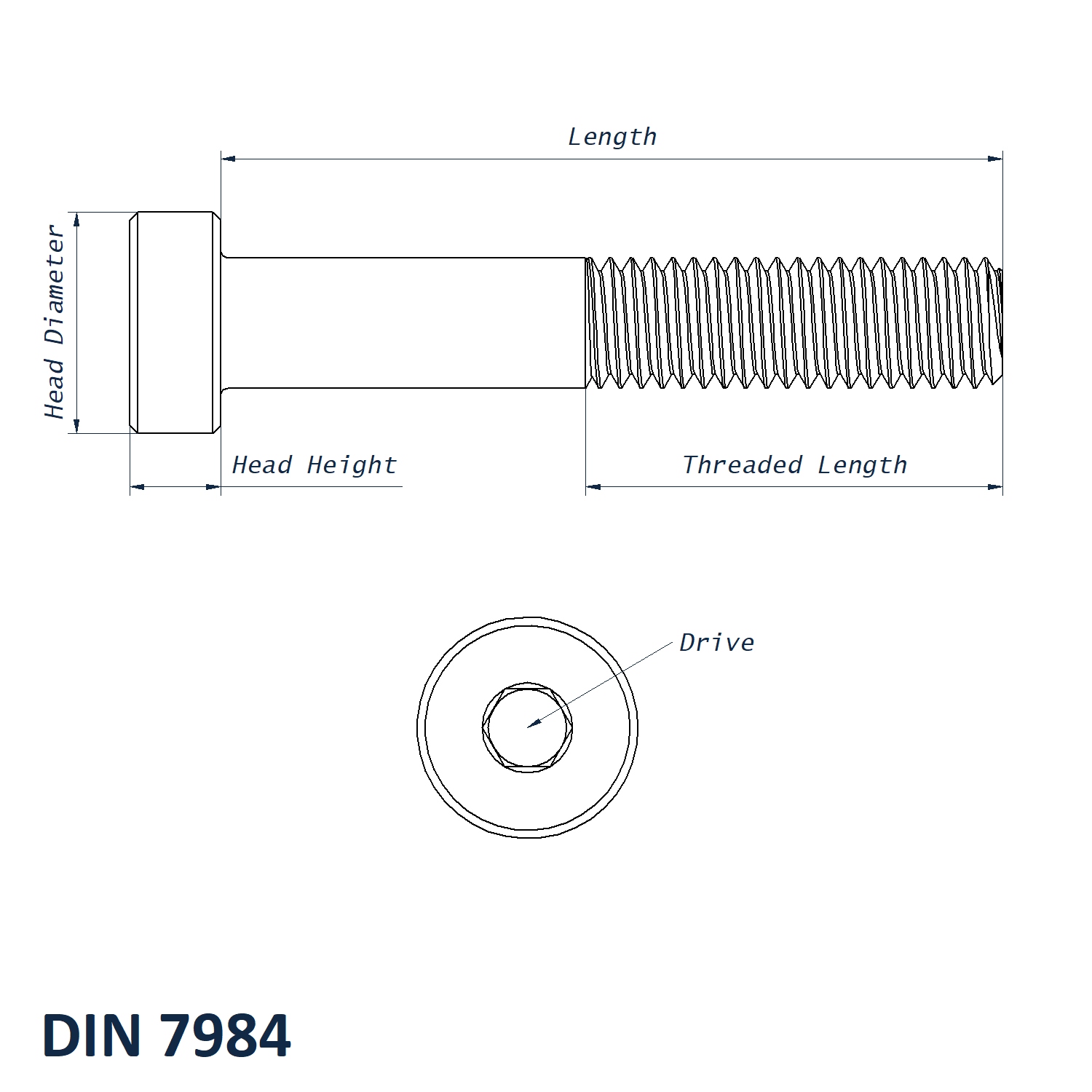

M20 x 100mm Low Head Socket Cap Screw Dimensions
- Thread Size: M20
- Length: 100mm
- Threaded Length: 46mm
- Pitch: 2.50mm
- Head Diameter: 30.0mm
- Head Height: 11.0mm
- Drive: H14
- Material: A2-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
Alternative Product Name
This size may also be searched for as M20 Thin Allen Key Caps, because it uses a reduced head profile and is tightened with an Allen key or hex key in low clearance assemblies.
View our full Low Head Socket Cap Screws DIN 7984 range.
