M6 x 100mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Product code:
LSC7984-M6-100-A4-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.62 | £4.35 |
| 10 - 24 | £2.90 | £3.48 |
| 25 - 49 | £2.17 | £2.61 |
| 50 - 99 | £1.82 | £2.18 |
| 100 - 499 | £1.63 | £1.96 |
| 500 - 999 | £1.45 | £1.74 |
| 1000 + | £1.09 | £1.31 |
£4.35
/ each
Quantity:
Product Specification
| Thread Size | M6 |
| Length | 100mm |
| Threaded Length | 18mm |
| Pitch | 1.00mm |
| Head Diameter | 10.0mm |
| Head Height | 4.0mm |
| Drive | H4 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A4-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M6 x 100mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Offering a controlled low profile finish, this M6 x 100mm socket cap screw to DIN 7984 is suited to machinery and equipment with tight clearances.
The low head shape spreads load through a cap-style bearing face while keeping the assembly slimmer than a standard DIN 912 socket cap screw.
Common Applications
- Workshop fabrication applications for mounting signage frames with M6 thread
- Securing removable service lids using a 100mm low head stainless fixing
- Engineering assemblies where a shallow fastener head improves clearance around moving parts
- Fitting inspection station covers where A4 stainless material is specified

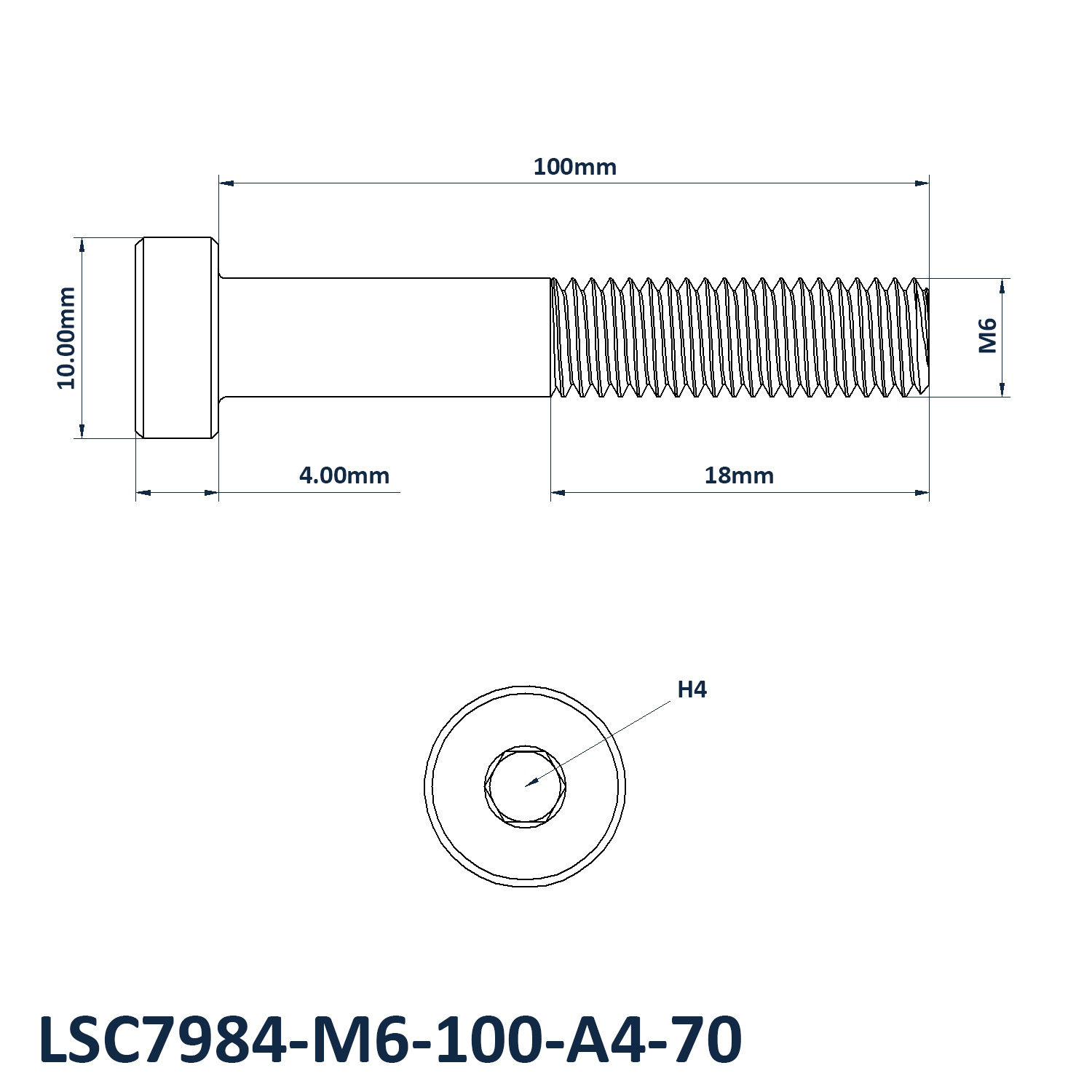

M6 x 100mm Low Head Socket Cap Screw Dimensions
- Thread Size: M6
- Length: 100mm
- Threaded Length: 18mm
- Pitch: 1.00mm
- Head Diameter: 10.0mm
- Head Height: 4.0mm
- Drive: H4
- Material: A4-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
View our full Low Head Socket Cap Screws DIN 7984 range.
